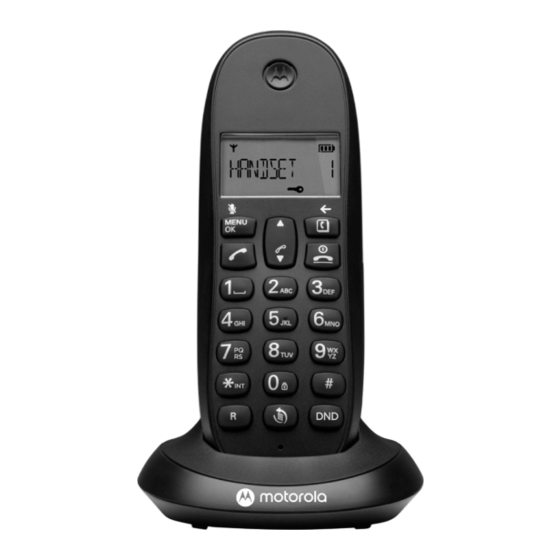

C1CB DIGITAL CORDLESS TELEPHONE
For: C1001CB, C1002CB, C1003CB and C1004CB
Warning: Charge the handset for 16 hours before use.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C1CB and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Motorola C1CB

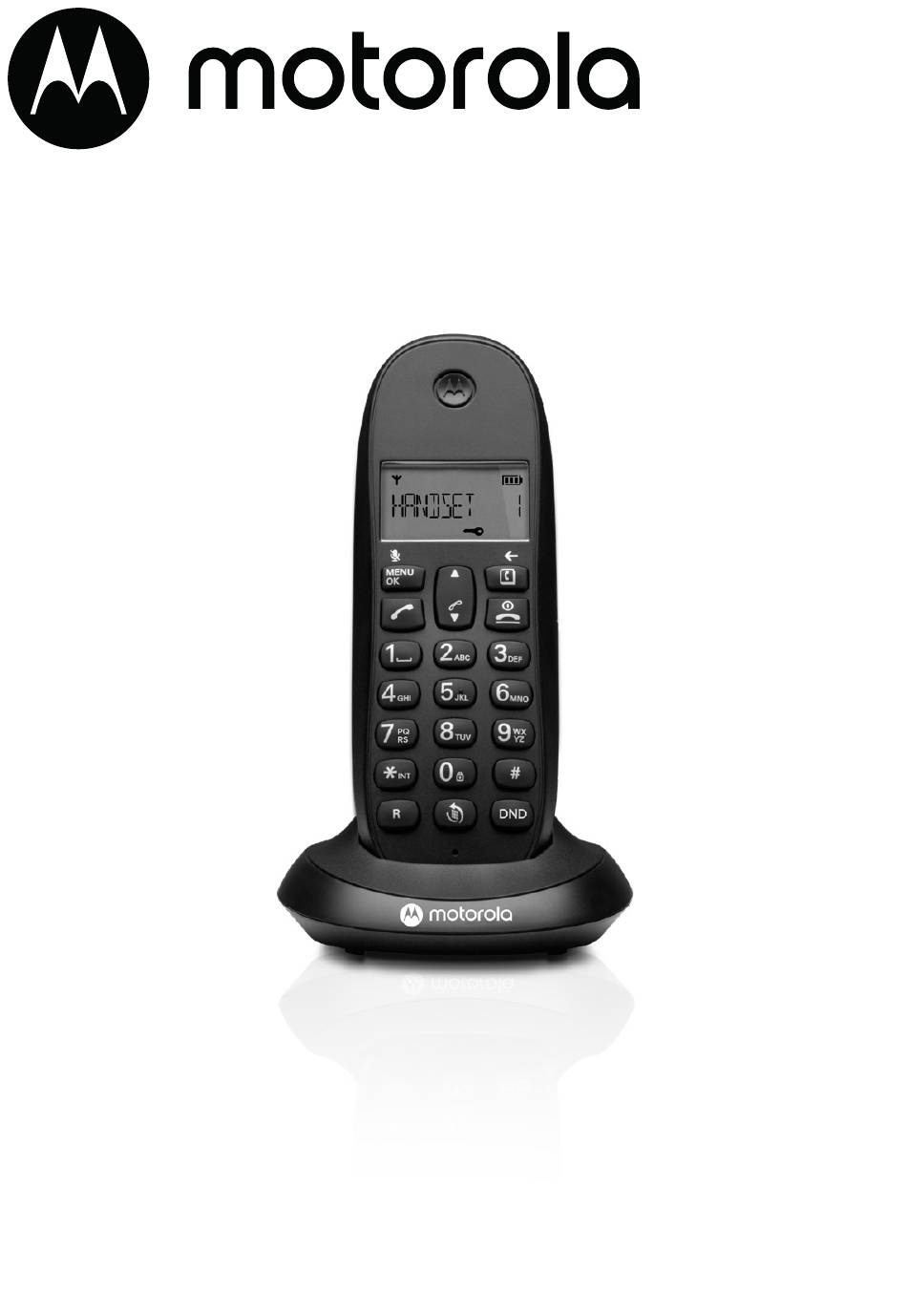

  • Page 1 C1CB DIGITAL CORDLESS TELEPHONE For: C1001CB, C1002CB, C1003CB and C1004CB Warning: Charge the handset for 16 hours before use.
  • Page 2 Safety information Important This equipment is not designed to make emergency telephone calls when the power fails. Alternative arrangements should be made for access to emergency services. This product is intended for connection to analogue public switched telephone networks and private switchboards in Europe. Important safety instructions Follow these safety precautions when using your phone to reduce the risk of fire, electric shock, and injury to persons or property:...
  • Page 3 Installation Guidelines • Read and understand all instructions and save them for future reference. • Follow all warnings and instructions marked on the product. • Do not install this product near a bath tub, sink, or shower. • Operate this phone using only the power source that is indicated on the marking label.
  • Page 4 Alternative arrangements should be made for access to emergency services. Need help? If you have any problems setting up or using your C1CB, please contact Customer Services on 2310-689339. Alternatively, you may find the answer in the ‘Help’ section at the back of this guide.
  • Page 5 Power adaptor for the base • Telephone line cord • Quick start guide If you have purchased a C1CB multiple pack you will also have the following additional items: • Cordless handset & charger • 2 x rechargeable Ni-MH battery cells •...
  • Page 6: Table Of Contents

    Getting started ..............8 Getting to know your phone ........12 Using the phone ..............17 Switch the handset on / off .................17 Calls ........................17 3.2.1 Make a call ..................17 3.2.2 Preparatory dialling .................17 3.2.3 End a call .....................17 3.2.4 Receive a call ..................17 Adjust the earpiece volume .................17 Mute ........................17 Intercom .......................18...
  • Page 7 5.2.3 Add a number to the call block list ..........24 5.2.4 Edit a number in the call block list ...........24 5.2.5 Delete a number from the call block list ........25 5.2.6 Delete the call block list ...............25 Caller ID and the Calls list ........... 26 Caller ID ......................26 Calls list .......................26 6.2.1...
  • Page 8: Getting Started

    Important Do not place your C1CB in the bathroom or other humid areas. Place your C1CB base within reach of the AC power outlet and telephone wall socket. The socket-outlet should be installed near the equipment and should be easily accessible.
  • Page 9 Connecting the base Plug the telephone line cord into the socket marked on the underside of the base. 2. Plug the power adaptor into the socket marked on the rear of the base and plug the other end into the wall socket. Switch on the power supply. Installing and charging the handset Press down Slide...
  • Page 10 Important Warning! Use only the approved rechargeable Ni-MH battery cells (2 x AAA Ni-MH 300mAh rechargeable batteries) supplied with your C1CB. Battery low warning flashes on the display and you hear a warning beep every minute during a call, you will need to recharge the handset before you can use it again.
  • Page 11 4. Enter the date using the keypad (e.g. 12--08--2023 for 12th of August 2023) and press to confirm. 5. Enter the time using the keypad (e.g. 06--30 for 6:30) and press to confirm. Your C1CB is now ready for use. Getting started...
  • Page 12: Getting To Know Your Phone

    Getting to know your phone Overview of your handset A Earpiece B Display See page 14 for an overview of display icons. C Up During a call, press to increase the earpiece volume. When the phone is ringing, press to increase the handset ringer volume. Press to scroll through the menu options, redial list, calls list and phonebook entries.
  • Page 13 Press to make and receive calls. * / Intercom / Pulse to Tone dialling Dial a *. Used to make internal calls and transfer calls to other C1CB handsets registered to the base. During a call, press to switch from pulse dialling to tone dialling.
  • Page 14 Flashes to indicate an incoming or internal call. Indicates an incoming call when viewing the calls list Indicates an outgoing call when viewing the redial list Hands-free is on (not applicable for the C1CB). Menu is opened. Keypad is locked.
  • Page 15 In standby mode, press to ring the handset(s). Press and hold to enter registration mode when registering handsets. Navigating the menus Your C1CB has an easy-to-use menu system. Each menu has a list of options, which you can see on the menu map on the following page.
  • Page 16 Menu map PHONEBOOK PERSONAL SET ADVANCED SET VIEW HANDSET TONE ECO MODE ADD NEW RING VOLUME ECO PLUS EDIT RING MELODY AUTO PREFIX DELETE KEY TONE RECALL TIME DELETE ALL HANDSET NAME DIAL MODE CALL BLOCK AUTO ANSWER CHANGE PIN BY CALLTYPE LANGUAGE REGISTER...
  • Page 17: Using The Phone

    Using the phone Note The handset will automatically time the duration of all external calls. The call timer will display after the first 10 seconds of the call. When the call ends, the total duration of the talk time stays on the display for 3 seconds. Switch the handset on / off Press and hold to switch the handset on or off.
  • Page 18: Intercom

    Intercom 3.5.1 Make an internal call If you have more than one handset registered to the base, you can make internal calls between two handsets. flashes and the handset number that is being called is displayed. If only 2 handsets are registered to the base, press and hold and the other handset rings automatically.
  • Page 19: Redial

    Redial The last 10 entries dialled are stored in the redial list. 3.6.1 View or dial an entry Press to open the redial list. 2. Scroll to the entry you want. 3. Press to dial the displayed entry or press to return to standby mode.
  • Page 20: Lock / Unlock The Keypad

    Lock / unlock the keypad You can lock the keypad so that it cannot be operated accidentally while carrying it around. Note When the keypad is locked, you can still answer incoming calls and operate the handset as normal during the call. When the call ends, the keypad lock comes on again.
  • Page 21: Phonebook

    12 characters long and numbers up to 24 digits. Store a name and number If the C1CB is connected to a switchboard, you may need to enter a pause in a stored number. This gives the switchboard time to find an outside line.
  • Page 22: View Or Dial An Entry

    View or dial an entry Press is displayed. 2. Scroll to the entry you want. Enter the first letter of the name to search alphabetically. The first name that starts with this letter or the nearest letter in the alphabet will be displayed. Scroll to the entry you want.
  • Page 23: Call Block

    Call block Your phone can block calls by call types or by numbers. Up to 10 numbers can be blocked. For this feature to work, you must subscribe to Caller ID Service from your network operator. A subscription fee may be payable. You can access the call block menu by pressing and holding in standby mode or through the handset menu.
  • Page 24: Block By Number

    Block by number Your phone can block calls by numbers, you can store a full phone number or an area code. 5.2.1 Turn block by number on CALL BLOCK. Press , scroll NUMBER. 2. Press , scroll BLOCK MODE, press 3.
  • Page 25: Delete A Number From The Call Block List

    5.2.5 Delete a number from the call block list Press , scroll CALL BLOCK. 2. Press , scroll NUMBER. to DELETE. 3. Press , scroll 4. Press , scroll to the entry you want to delete. . The display shows CONFIRM?. 5.
  • Page 26: Caller Id And The Calls List

    Caller ID and the Calls list Important To use Caller ID, you must first subscribe to the service from your network provider. A subscription fee may be payable. To ensure that the caller’s name is displayed, make sure you have stored the full telephone number, including the area code in the phonebook.
  • Page 27: Dial A Number In The Calls List

    6.2.2 Dial a number in the Calls list Press to open the Calls list. 2. Scroll to the entry you want. 3. Press to dial the displayed entry. 6.2.3 Copy a Calls list number to the phonebook Press to open the Calls list. 2.
  • Page 28: Clock & Alarm

    Clock & alarm Set the date and time to CLOCK/ALARM. Press , scroll 2. Press . The display shows DATE & TIME. 3. Press to select. 4. Enter the date (e.g. 12--08--2023 for 12th of August 2023) and press to confirm. 5.
  • Page 29: Personal Settings

    Personal settings Handset tones 8.1.1 Handset ringer volume The handset ring volume can be set to different volume levels. Choose from 5 volume levels or Off. PERSONAL SET. Press , scroll 2. Press . The display shows HANDSET TONE. RING VOLUME, press 3.
  • Page 30: Handset Name

    Handset name If you are using more than one handset with your C1CB base, you can set a personalized name for each handset to easily distinguish between them. A name can be up to 10 characters long. Press , scroll PERSONAL SET.
  • Page 31: Base Settings

    Base settings ECO mode Your C1CB offers ECO mode function which reduces the transmitted power and energy consumption when switched on. To switch Eco mode on: ADVANCED SET. Press , scroll 2. Press , scroll ECO MODE and press or OFF.
  • Page 32: Recall Mode

    MEDIUM LONG and press to confirm. Dial mode Your C1CB is set to tone dialling. You should only need to change this if connected to an older type of switchboard / PBX which requires pulse dialling. Press , scroll ADVANCED SET.
  • Page 33: Register A Handset

    On the base: Press and hold for 5 seconds. The base will remain in registration mode for 90 seconds. On the handset: If the handset is not registered to a base, press and then enter the 4 digit PIN code (default = 0000) and press 2.
  • Page 34: Restore Default Settings

    Restore default settings You can restore your C1CB to its default (original) settings. All the handsets that are registered to the base will be retained. Important Resetting your phone to its default settings will delete all entries in the Calls and Redial lists.
  • Page 35: Help

    Cannot register a handset to the base • You can register up to a maximum of 4 handsets to a C1CB base. You must de-register a handset in order to register a new one. • Make sure that you have entered the correct PIN code (default = 0000).
  • Page 36 The handset ringer volume may be set to Off. • Noise interference on my phone or on other electrical equipment nearby • Place your C1CB at least one metre away from electrical appliances or any metal obstructions to avoid any risk of interference. Help...
  • Page 37: General Information

    Consumer Products and Accessories Warranty Thank you for purchasing this Motorola branded product manufactured under license by Meizhou Guo Wei Electronics Co. Ltd., AD1 section, Economic Development Area, Dongsheng Industrial District, Meizhou, Guangdong, China.
  • Page 38 What Does this Warranty Cover? Subject to the exclusions contained below, MZGW warrants that this Motorola branded product (“Product”) or certified accessory (“Accessory”) sold for use with this product that it manufactured to be free from defects in materials and workmanship under normal consumer usage for the period outlined below.
  • Page 39 Products or Accessories for commercial purposes or subjecting the Product or Accessory to abnormal usage or conditions; or • other acts which are not the fault of Motorola or MZGW are excluded from coverage. Use of Non-Motorola branded Products and Accessories. Defects or damage that result from the use of Non-Motorola branded or certified Products or Accessories or other peripheral equipment are excluded from coverage.
  • Page 40 Your C1CB has a REN of 1. A total REN of 4 is allowed. If the total REN of 4 is exceeded, the telephones may not ring. With different telephone types, there is no guarantee of ringing, even when the REN is less than 4.
  • Page 41 <This page has been intentionally left blank>...
  • Page 42 <This page has been intentionally left blank>...
  • Page 43 AD1 Section, The Economy Development Area, Dongsheng Industrial District, Meizhou, 514000. Guangdong Province, P.R. China Equipment: Model Number: Motorola C1001CB, Motorola C1002CB, Motorola C1003CB, Motorola C1004CB Product Type: DECT cordless phone without Telephone Answering Machine (C100xCB) and their Multi-handset version.
  • Page 44 Manufactured, distributed or sold by Meizhou Guo Wei Electronics Co. LTD., official licensee for this product. MOTOROLA and the Stylized M Logo are trademarks or registered trademarks of Motorola Trademark Holdings, LLC. and are used under license. All other trademarks are the property of their respective owners.
