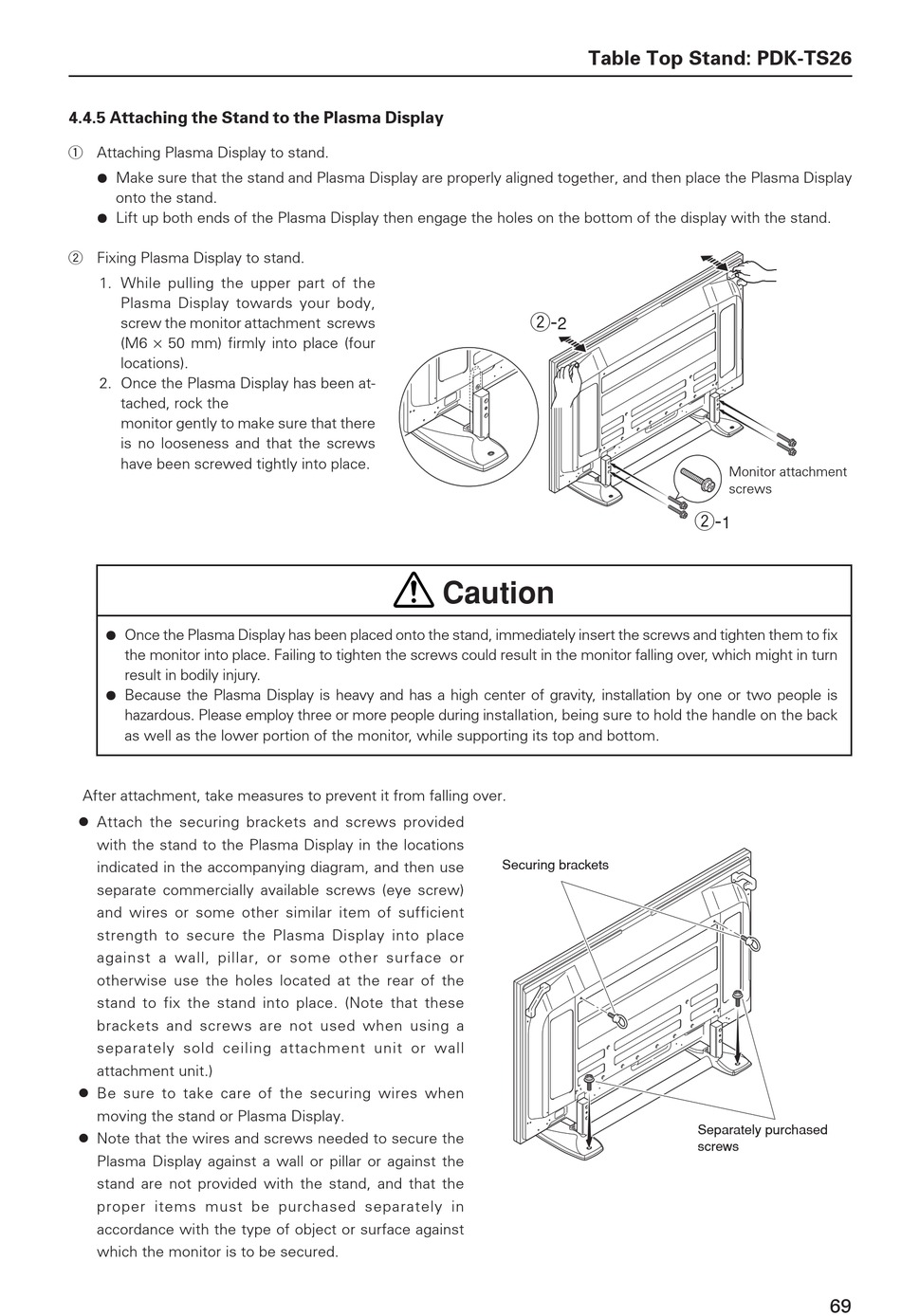

4.4.5 Attaching the Stand to the Plasma Display

1 Attaching Plasma Display to stand.
¶ Make sure that the stand and Plasma Display are properly aligned together, and then place the Plasma Display
onto the stand.
¶ Lift up both ends of the Plasma Display then engage the holes on the bottom of the display with the stand.
2 Fixing Plasma Display to stand.
1. While pulling the upper part of the
Plasma Display towards your body,
screw the monitor attachment screws
(M6 × 50 mm) firmly into place (four
locations).
2. Once the Plasma Display has been at-
tached, rock the
monitor gently to make sure that there
is no looseness and that the screws
have been screwed tightly into place.
¶ Once the Plasma Display has been placed onto the stand, immediately insert the screws and tighten them to fix
the monitor into place. Failing to tighten the screws could result in the monitor falling over, which might in turn
result in bodily injury.
¶ Because the Plasma Display is heavy and has a high center of gravity, installation by one or two people is
hazardous. Please employ three or more people during installation, being sure to hold the handle on the back
as well as the lower portion of the monitor, while supporting its top and bottom.
After attachment, take measures to prevent it from falling over.
Attach the securing brackets and screws provided
with the stand to the Plasma Display in the locations
indicated in the accompanying diagram, and then use
separate commercially available screws (eye screw)
and wires or some other similar item of sufficient
strength to secure the Plasma Display into place
against a wall, pillar, or some other surface or
otherwise use the holes located at the rear of the
stand to fix the stand into place. (Note that these
brackets and screws are not used when using a
separately sold ceiling attachment unit or wall
attachment unit.)
Be sure to take care of the securing wires when
moving the stand or Plasma Display.
Note that the wires and screws needed to secure the
Plasma Display against a wall or pillar or against the
stand are not provided with the stand, and that the
proper items must be purchased separately in
accordance with the type of object or surface against
which the monitor is to be secured.
Table Top Stand: PDK-TS26
2 -
2
Caution
Securing brackets
Monitor attachment
screws
2 -
1
Separately purchased
screws
69
