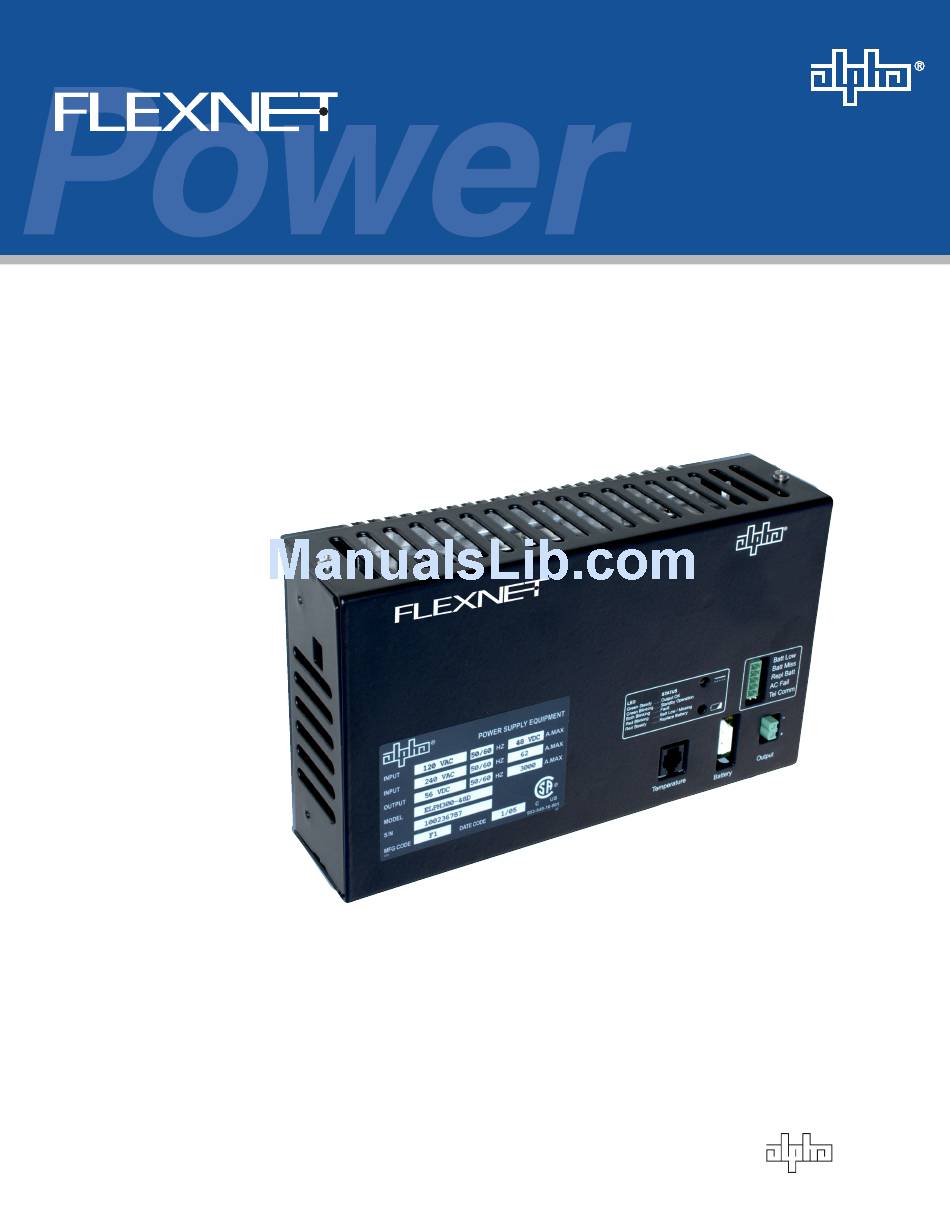

- Page 1 ELPM 300-48D ELPM300-48D, DC UPS Power Supply Installation and Operation Manual Effective: July 2009 ® Alpha Technologies...
- Page 2 Power Alpha Technologies ®...
- Page 3 NOTE: Operator is cautioned to review the drawings and illustrations contained in this manual before proceeding. If there are questions regarding the safe operation of this powering system, please contact Alpha Technologies or your nearest Alpha representative. NOTE:...
-
Page 4: Table Of Contents
AC Input Power Connection................15 Battery Connection ..................15 Output Distribution Board (optional)............... 16 Specifications......................17 ELPM300-48D DC Power Supply ..............17 Output Distribution Board................19 FlexNet Installation Kit and Options ............... 20 List of Figures Fig. 1-1 Top view, Mounting Bracket Extension Range ..........11 Fig. -
Page 5: Safety Information
Safety Information Review the drawings and illustrations contained in this manual before proceeding. If there are any questions regarding the safe installation or operation of the system, contact Alpha Technologies or the nearest Alpha representative. Save this document for future reference. - Page 6 General Safety Precautions To avoid injury: • This enclosure and its associated hardware must be serviced only by authorized personnel. • Enclosure must remain locked at all times, except when authorized service personnel are present. • Remove all conductive jewelry or personal equipment prior to servicing equipment, parts, connectors, wiring, or batteries.
-
Page 7: Battery Safety
Battery Safety WARNING! Lead-acid batteries contain dangerous voltages, currents and corrosive material. Battery installation, maintenance, service and replacement must be performed only by authorized personnel. Chemical Hazards Any gelled or liquid emissions from a valve-regulated lead-acid (VRLA) battery contain dilute sulfuric acid, which is harmful to the skin and eyes. -
Page 8: Electrical Safety
Battery Maintenance Guidelines The battery maintenance instructions listed below are for reference only. Battery manufacturer’s instructions for transportation, installation, storage or maintenance take precedence over these instructions. • To prevent damage, inspect batteries every 3 months for: Signs of battery cracking, leaking or swelling. The battery should be replaced immediately by authorized personnel using a battery of the identical type and rating. -
Page 9: Grounding Connection
Grounding Connection In order to provide a ready, reliable source of backup power it is necessary to establish a grounding system that not only provides for the safety of the service personnel responsible for its operation and maintenance, but also facilitates the proper operation and protection of the equipment within the network. Such a grounding system will provide protection with respect to operator safety, system communication, and equipment protection. -
Page 10: Installation
1.0 Installation Introduction The FlexNet Fiber UPS model ELPM300-48D is a small-form, outdoor-rated, uninterruptible power supply for distributed communications networks. The unit can be installed in a variety of Alpha enclosures and is powered by 120Vac or 240Vac line input or 48Vdc battery string. -
Page 11: Flexnet Installation
Installation, continued FlexNet Installation Use #6 screws and attach mounting brackets to side of unit. Use #10 screws (at least one per side and attach unit on the mounting bar in the upper compartment of the enclosure. 4.00” (101.6mm) 3.40” 3.30”... -
Page 12: Battery And Rts Probe Installation
Installation, continued Battery and Remote Temperature Sensor Probe Installation The diagram below is for illustrative purposes only. Exact battery orientation may vary. Do not connect the batteries to the Flexnet 300 unit at this time. The RTS must be taped to the side of a center battery as shown below. -
Page 13: Output Connections
Installation, continued Output Connector The output connection is located on the front panel of the unit. Plug the 48VDC fiber node into this connector. Status Monitoring Connector The Status Monitoring connector is located on the front panel of the unit. Associating with this connector, an opto-coupler transistor array is connected between the output alarm pins (Batt Low, Batt Miss, Repl Batt and AC Fail) and the ground pin (Tel Comm) as shown. - Page 14 In order to correctly receive the alarm signals, it is recommended to put a pull-up resistor between the receive circuit’s logic power (3.3V or 5V) and each alarm line at the alarm signal monitor side, as shown below. The resistance may vary per current requirement of the receive circuit.
-
Page 15: Status Leds
Installation, continued Status LEDs The status LEDs are located on the front panel of the unit. Normal operation is indicated by the green LED ON, and the red LED OFF. LED status indication also has a time delay when reporting failures. The time delay is similar to that illustrated in Section 1.5. -
Page 16: Output Distribution Board (Optional)
Installation, continued Output Distribution Board (optional) The Output Distribution Board (Alpha P/N 745-577-20) splits the ELPM300-48D’s 300W output into two 150W isolated outputs. Each output has its independent protection circuit. One output overload or short circuit will only trigger its own protection and not affect the other circuit’s normal operation. -
Page 17: Specifications
2.0 Specifications ELPM300-48D DC Power Supply Mechanical Housing Sheet metal enclosure Mounting Wall mounting brackets included Rack-mounting via optional 19-inch EIA brackets Material Aluminum Finish Painted black Cooling Natural convection Acoustic Noise, Line Mode 50dBa at 1m (maximum) Acoustic Noise, Batt Mode 50dBa at 1m (maximum) Electrical —... - Page 18 2.0 Specifications, continued ELPM300-48D DC Power Supply, continued Electrical — Battery Bus Voltage 48Vdc nominal Recharge Time 10X Discharge Rate to 90% state of charge Temperature Compensation Range -20°C to +40°C Temp. Compensation dV/dC -72mV/°C per string End of Discharge Voltage 42Vdc (1.75V/cell)
-
Page 19: Output Distribution Board
2.0 Specifications, continued Output Distribution Board (optional) Electrical — General Efficiency > 90% Grounding Positive or negative terminal (user preference) Startup Time < 20s Electrical — Input Voltage, minimum 42Vdc Voltage, nominal 48Vdc Voltage, maximum 62Vdc Electrical — Output I/II Voltage, minimum 41 Vdc Voltage, maximum 61Vdc... -
Page 20: Flexnet Installation Kit And Options
FlexNet Installation Kit and Options The following items are part of the FlexNet installation package and options for the ELPM300-48D power supply. NOTE: The optional 10” x 17” Battery Heater Mat (Alpha P/N 189-057-10) is not shown . Battery Cable Kit (Alpha P/N 875-218-21) See Section 1.8... - Page 25 Phone: +33 32 64990 54 Fax: +33 95 60205 01 Due to continuing product improvements, Alpha reserves the right to change specifications without notice. Copyright © 2009 Alpha Technologies, Inc. All rights reserved. Alpha is a registered trademark of Alpha Technologies. 010-322-C0-003 Rev. C...
