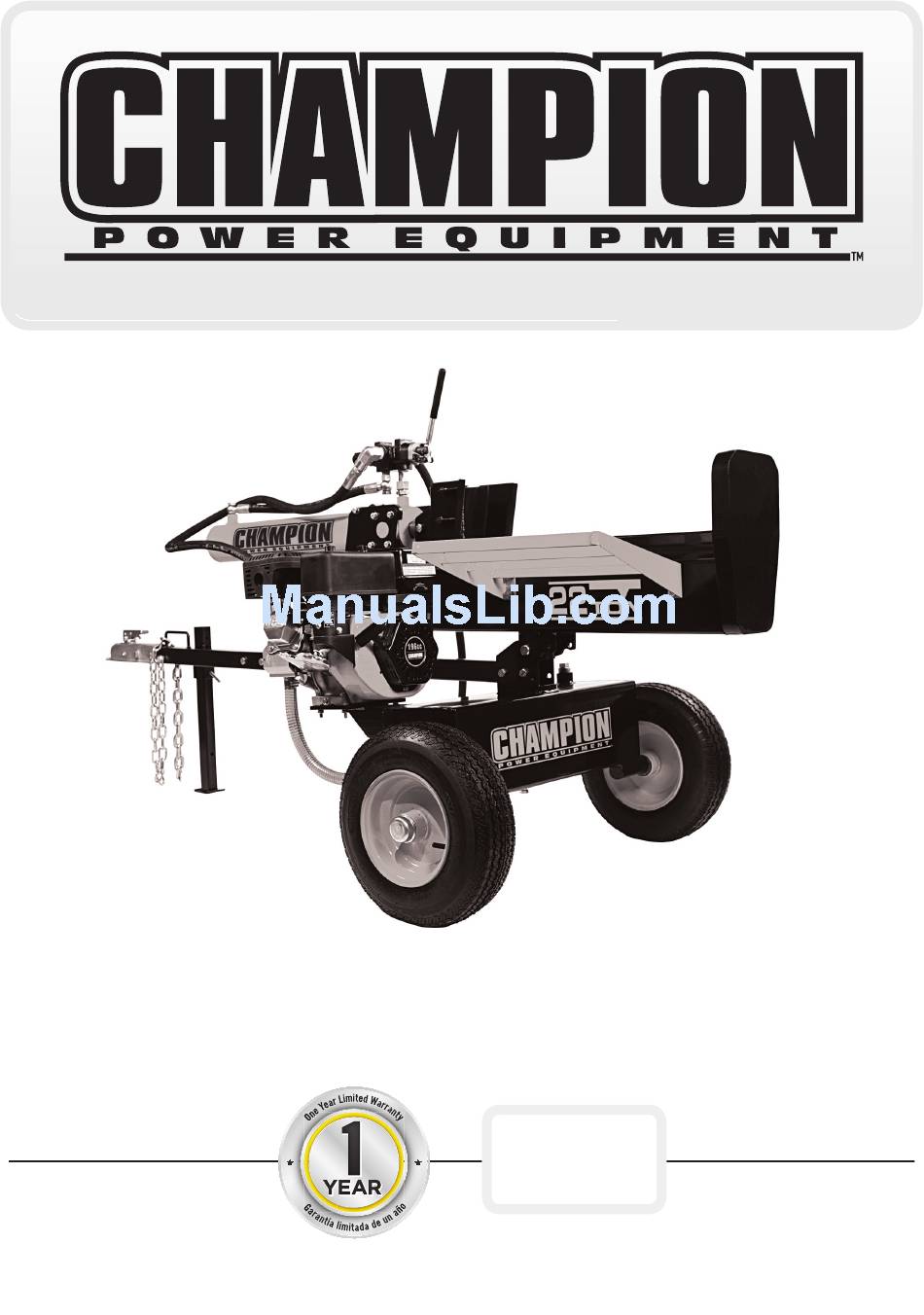

OWNER'S MANUAL & OPERATING INSTRUCTIONS
22 Ton

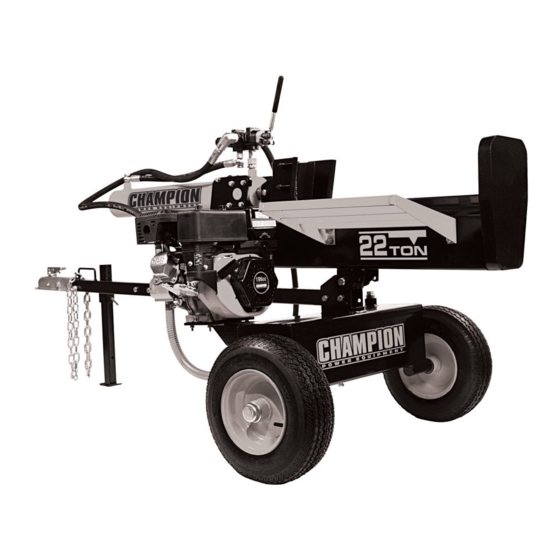

LOG SPLITTER
MODEL NUMBER
92221
10006 Santa Fe Springs Road
SAVE THESE INSTRUCTIONS
Santa Fe Springs CA 90670
Important Safety Instructions
USA / 1-877-338-0999
MADE IN CHINA
are included in this manual.
REV 92221-20120417
www.championpowerequipment.com
Advertisement
Table of Contents
Related Manuals for Champion Power Equipment 92221
Summary of Contents for Champion Power Equipment 92221
-
Page 1: Log Splitter
OWNER’S MANUAL & OPERATING INSTRUCTIONS 22 Ton LOG SPLITTER MODEL NUMBER 92221 10006 Santa Fe Springs Road SAVE THESE INSTRUCTIONS Santa Fe Springs CA 90670 Important Safety Instructions USA / 1-877-338-0999 MADE IN CHINA are included in this manual. REV 92221-20120417 www.championpowerequipment.com... - Page 2 Have questions or need assistance? Do not return this product to the store! WE ARE HERE TO HELP! Visit our website: www.championpowerequipment.com for more info: • Product Info & Updates • Tech Bulletins • Frequently Asked Questions • Product Registration –...
-
Page 3: Table Of Contents
92221 22 Ton LOG SPLITTER TABLE OF CONTENTS Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . -
Page 4: Introduction
Introduction Accessories Congratulations on your purchase of a Champion Champion Power Equipment manufactures and sells Power Equipment log splitter . CPE designs and builds accessories designed to help you get the most from your log splitters to strict specifications . With proper use purchase . -
Page 5: Manual Conventions
. Please call our help line at 1-877-338-0999 situation which, if not avoided, could result in death or serious injury . CAUTION CAUTION indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury . REV 92221-20120417... -
Page 6: Safety Rules
Keep work zone clear of debris while working to can start fires around dry vegetation . ensure safe footing . A spark arrestor may be required . The operator should contact local fire agencies for laws or regulations relating to fire prevention requirements . REV 92221-20120417... - Page 7 . DO NOT expose log splitter to excessive moisture, dust, or dirt . DO NOT allow any material to block the cooling slots . DO NOT use the engine if: – Equipment sparks, smokes or emits flames – Equipment vibrates excessively REV 92221-20120417...
-
Page 8: Training
. Make sure you comply with local, state, and federal codes . Take appropriate fire-fighting equipment with you . 10 . Log splitters should be used only for splitting wood . Do not use for other purposes unless the manufacturer provides attachments and instructions . REV 92221-20120417... -
Page 9: Operation
. 12 . Use only your hand to operate the log splitter controls . 13 . Do not refuel the engine until it has cooled for several minutes . REV 92221-20120417... -
Page 10: Controls And Features
(12) Beam Bracket – Holds splitting beam in place . the cutting wedge . (13) Support Leg – Supports log splitter while Wedge operating . Raise leg for towing . Splitting Beam (14) Safety Chains – For use while towing . Log Catchers REV 92221-20120417... -
Page 11: Assembly
M12x85 bolts and M12 lock nuts . (B) 2 . Stand the beam upright on foot plate behind the hydraulic oil tank . (B) CAUTION Beam is heavy . Use at least 2 people when lifting or moving the beam . REV 92221-20120417... -
Page 12: Install The Cylinder And Wedge
. Connect one end of the into the mounting slots . (B) high pressure hose to the pump outlet fitting and the other end to the inlet on the control valve . (B) REV 92221-20120417... -
Page 13: High Pressure Hose
6 . Place the oil return hose through the retaining ring and connect it to the barb fitting on the control valve . Connect the other end of the hose to the barb fitting on the oil filter . (E) REV 92221-20120417... -
Page 14: Add Engine Oil
The engine is equipped with a low-oil-shutoff and WARNING will stop when the oil level in the crankcase falls below the threshold level . Pouring fuel too fast through the fuel screen may result in blow back of fuel at the operator while filling . REV 92221-20120417... -
Page 15: Operation
DO NOT place the log splitter near vents or intakes position where engine exhaust fumes could be drawn into – Insert beam lock-pin in the pivot bracket occupied or confined spaces . ONLY operate the log splitter outdoors. REV 92221-20120417... -
Page 16: Starting The Engine
. Too much choke leads to spark plug fouling/engine flooding due to the lack of incoming air . This will cause the engine not to start . 7 . As engine warms up, move the choke lever (Item D) to “Run . ” REV 92221-20120417... -
Page 17: Operation At High Altitude
To alleviate high altitude issues other than the natural Back injury can result from lifting logs onto the log power loss, Champion Power Equipment can provide a splitter if proper lifting techniques are not used . high altitude carburetor main jet . The alternative main jet and installation instructions can be obtained by 4 . -
Page 18: Maintenance And Storage
Check and tighten all bolts and nuts before operating the log splitter . Be sure to confi rm all hose connections and hose clamps are tight before each use . It is possible for connections to vibrate loose over time . REV 92221-20120417... -
Page 19: Changing The Hydraulic Oil And Oil Filter
. Replacement filters can be purchased from b . Lubricate the gasket of the new filter with a thin Champion Power Equipment by calling film of clean oil . 1-877-338-0999 . Wix #51391 or Fram PH3682 c . -
Page 20: Cleaning
Every 250 hours Clean combustion chamber* Every year Inspect wheel bearings and repack bearing grease as needed . Every 3 years Replace fuel line *To be performed by knowledgeable, experienced owners or Champion Power Equipment certified dealers . REV 92221-20120417... -
Page 21: Specifications
– Intake: 0 . 1 3 – 0 . 1 7 mm (0 .005 – 0 .007 in .) – Exhaust: 0 . 1 8 – 0 .22 mm (0 .007 – 0 .009 in .) Note: Tech bulletin regarding the valve adjustment procedure is on www .championpowerequipment .com . REV 92221-20120417... -
Page 22: Parts Diagram
92221 ENGLISH SPECIFICATIONS Parts diagram REV 92221-20120417... -
Page 23: Parts List
Gear Pump GB 1160 .2-89 Oil Scale JB/T 8870－1999 Clamp d40 GB/T 93-1987 Lock washer 10 PMJ22G-17 Oil Pipe GB/T 5781-2000 Bolt M10x15 GB/T 5783-2000 Bolt M8×30 PMJ22F-01 Log Catcher GB/T 6170-2000 Nut M8 GB/T 77-2000 Screw M6×10 REV 92221-20120417... -
Page 24: Engine Parts Diagram
92221 ENGLISH SPECIFICATIONS Engine Parts diagram REV 92221-20120417... -
Page 25: Engine Parts List
Flange bolt M5*12 ST168F-1040002 valve,intake ST188FD-1070006A clip－8 ST168F-1040006 valve,exhaust ST168F-1070004-G Tube 1 ST168F-II-1080002-G gasket,cylinder head 143A ST168FD-2-1131000-17 Standard Main Jet F6RTC Spark plug 143B 468 .131017 .01 Altitude Main Jet – GB5789-86-FB8-55 Flange bolt 8*55 REV 92221-20120417 ST168F-1040014 oil seal,valve... -
Page 26: Troubleshooting
Excessive bouncing while towing . Under-inflated tires . Inflate tires to proper pressure . Refer to tire sidewall . For further technical support: Technical Service Mon – Fri 8:30 AM – 5:00 PM (PST/PDT) Toll Free: 1-877-338-0999 tech@championpowerequipment .com REV 92221-20120417... -
Page 27: Warranty
Warranty Qualifications – Accessory parts such as starting batteries, and storage covers . Champion Power Equipment (CPE) will register this – Failures to due acts of God and other force majeure warranty upon receipt of your Warranty Registration Card events beyond the manufacturer’s control . - Page 28 The California Air Resources Board (CARB) and the United States Environment Protection Agency (U.S. EPA.) Emission Control System Warranty Your Champion Power Equipment (CPE) engine complies with both the U.S. EPA and state of California Air Resources Board (CARB) emission regulations.
- Page 29 EMISSION CONTROL SYSTEM WARRANTY The following are specific provisions relative to your Emission Control System Warranty Coverage. 1. APPLICABILITY: This warranty shall apply to 1995 and later model year California small off-road engines (for other states, 1997 and later model year engines). The ECS Warranty Period shall begin on the date the new engine or equipment is delivered to its original, end-use purchaser, and shall continue for 24 consecutive months thereafter.
- Page 30 You must take your CPE engine or the product on which it is installed, along with your warranty registration card or other proof of original purchase date, at your expense, to any Champion Power Equipment dealer who is authorized by Champion Power Equipment, Inc. to sell and service that CPE product during his normal business hours.
