  • Page 1: User Guide

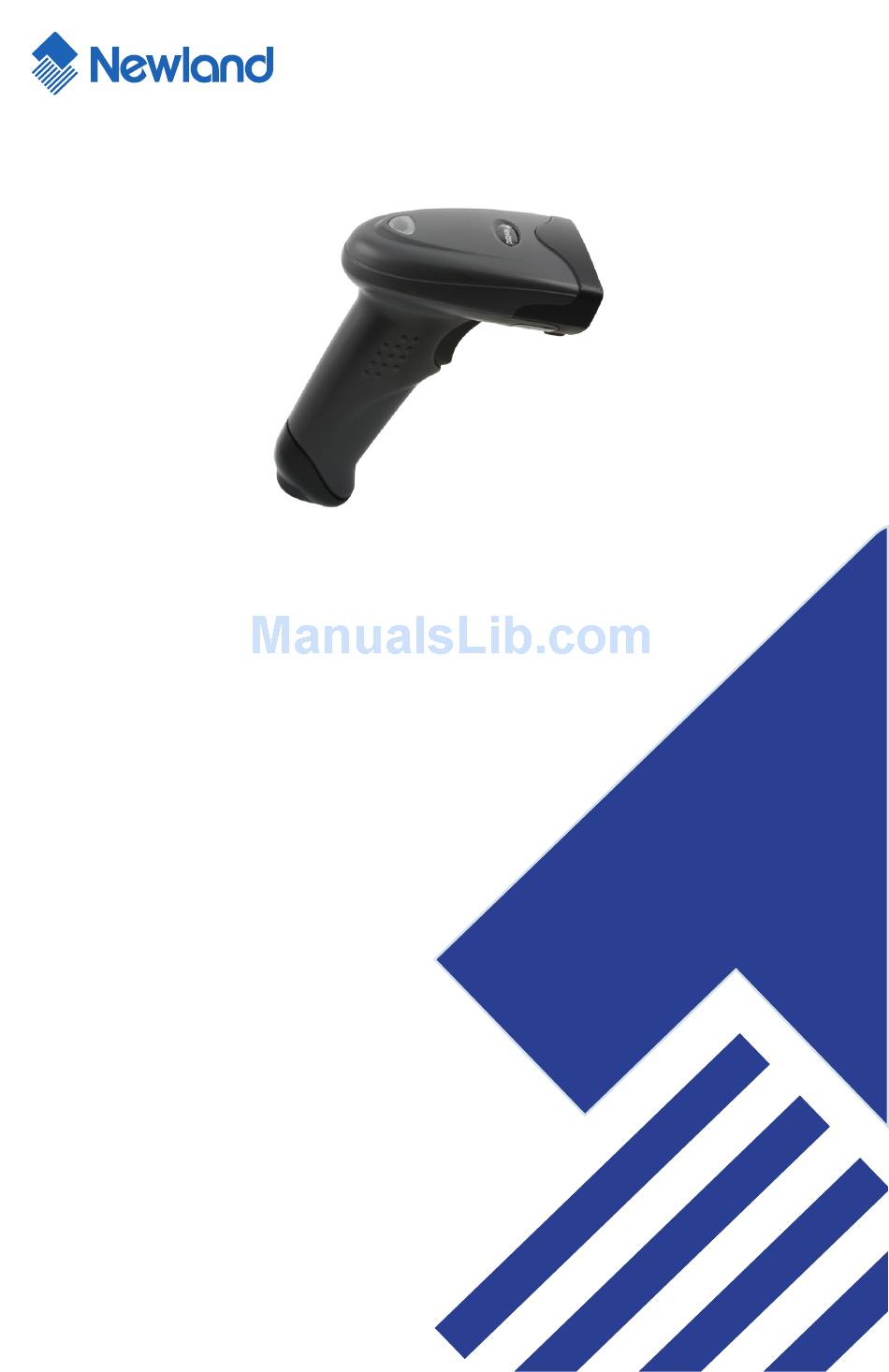

    NLS-HR100 Hand-held 1D Barcode Scanner User Guide Pre-release version...
  • Page 2 Newland Auto-ID. No right to copy a licensed program in whole or in part is granted except as permitted under copyright law or as hereinafter expressly provided. The user agrees to maintain Newland Auto-ID’s copyright notice on the licensed programs delivered hereunder, and to include the same on any authorized copies it makes in whole or in part.

  • Page 3: Table Of Contents

    请更换节标题 Content About this guide Introduction ..............................1 Chapter Description ............................. 1 Graphic Notations ............................2 Newland Auto-ID Support Center ......................2 Getting to Start Introduction ..............................3 Unpacking ..............................4 Unpacking ............................. 4 Outline of HR100 ..........................4 Data Interface ............................5 Communication Ports ..........................
  • Page 4 Table of Contents Mode Select ............................20 Working Mode Parameters ........................21 For all modes ............................21 For Interval Mode Only ........................21 For Sensor Mode Only ........................21 For Auto Mode Only ........................... 21 Security Level ............................22 Security Level ............................. 22 Beeper ................................
  • Page 5 Table of Contents Symbols Available ............................. 37 Code 128 ..............................38 Load Factory Default .......................... 38 Enable/Disable Code 128 ........................38 Code 128 Code ID ..........................38 Select Message Length ........................39 Check Digit ............................40 UCC/EAN-128 ............................41 Load Factory Default .......................... 41 Enable/Disable UCC/EAN-128 ......................
  • Page 6 Table of Contents Check Digit ............................57 UPC-E Code ID ..........................57 2 Digits Addenda Code ........................58 5 Digits Addenda Code ........................58 Transmit Default “0” ........................59 UPC-E Expand to UPC-A ........................59 UPC-A ................................ 60 Load Factory Default .......................... 60 Disable/Enable UPC-A ........................
  • Page 7 Table of Contents Select Message Length ........................78 Standard 25 ..............................79 Load Factory Default .......................... 79 Enable/ Disable Standard 25 ....................... 79 Standard 25 Code ID .......................... 79 Check Digit ............................80 Select Message Length ........................81 Code 39 ..............................82 Load Factory Default ..........................
  • Page 8 Table of Contents Load Factory Default ........................102 Enable/ Disable RSS ......................... 102 RSS Code ID ............................. 102 Appendix Digit Code ..............................103 Save and Abort ............................105 nlscan.com Page VI...

  • Page 9: About This Guide

    About this guide Introduction This NLS-HR100 (“HR100”) Barcode Scanner User Guide provides general instructions for how to use it . Chapter Description Getting to Start: The chapter of Getting to Start gives a brief description of the HR100. It covers the general, overall specifications of the HR100.

  • Page 10: Graphic Notations

    Example – Illustration of how to use a feature. Newland Auto-ID Support Center If you have a problem with your equipment, contact the Newland Support Center in your region. Before call- ing, have the model number, serial number, and several of your barcodes at hand.

  • Page 11: Getting To Start

    Getting to Start Introduction HR100 is a 1D barcode reader. Newland Auto-ID patented technology ensure HR100 fast image capture and accurate decoding. It provides the customer the best value. HR100 can be used as a hand-held reader. Ergonomically designed to provide comfortable and easy use.

  • Page 12: Unpacking

    Getting to Start Unpacking Unpacking Unpack HR100 and accessories. Check with the packing list. Make sure that there is no damage or missing part(s). If any damage or missing parts, please keep the original package and contact your supplier for services.

  • Page 13: Data Interface

    Getting to Start Unpacking Data Interface PIN 10 PIN 1 Cable Slot Function Type Name CLK1 Keyboard Clock Signal DATA1 Keyboard Data Signal Power DC5V Serial Port Input，RS232 Serial Port Output，RS232 CLK2 PC Clock Signal DATA2 PC Data Signal Ground USB Data Signal nlscan.com Page 5...

  • Page 14: Communication Ports

    Getting to Start Communication Ports HR100 must connect to a Host to operate. A Host can be PC, POS, or any intelligent terminal with at least one of the following communication ports: USB, RS232, or PS/2. 1、 USB port on Host： 2、...

  • Page 15: Connecting With Usb Cable

    Getting to Start Connecting with USB Cable 1、 Insert USB Cable (RJ45 male head) into HR100 cable slot; 2、 Insert USB Cable (USB male head) into Host’s (female) USB connector; 3、 Click the HR100 Trigger to switch the unit on and it is ready to use. nlscan.com Page 7...

  • Page 16: Connecting With Rs232 Cable

    Getting to Start Connecting with RS232 Cable 1、 Insert RS232 cable (RJ45 male head) into HR100 cable slot; 2、 Insert RS232 cable (RS232 male head) into Host’s (female) RS232 connector; 3、 Connect RS232 cable and the mains with power adapter; 4、...

  • Page 17: Connecting With Ps/2 Cable

    Getting to Start Connecting with PS/2 Cable 1、 Insert PS/2 cable (RJ 45 male DIN) into HR100 cable slot; 2、 Insert PS/2 cable (PS/2 male DIN) into Host PS/2 female slot; 3、 Connect PS/2 cable and the mains with power adapter; 4、...

  • Page 18: Removal Of Communication Cable

    Getting to Start Removal of Communication Cable A Pin that fit the HR100 “Dismount hole” is needed. A paper clip could be ideal. Stretch one end of the paper clip to fit the “Dismount Hole”. Follow the steps: 1、 For RS232 and PS/2 connections, unplug the power adaptor. 2、...

  • Page 19: On, Off, Idle, Restart

    Getting to Start ON, OFF, IDLE, RESTART Power On Connect HR100 and Host. One click the "Trigger". HR100 powers on and in "Idle" (ready to use) state (factory default). Power Off There are 4 ways to "Power OFF": Remove Cable Off HR100; »...

  • Page 20: Reading

    Getting to Start Reading 1、Ensure HR100, cables, and the Host are connected, then turn the unit Power ON 2、Press & hold Trigger. Illumination LED cast an Illumination Pattern (red light line) ; 3、 Keep Illumination Pattern in the center of a bar code. Zoom in and zoom out to allocate the Optimum Reading Stance.

  • Page 21: Depth Of Field

    Getting to Start Depth of Field 131.0 80.0 29.1 40° 29.1 80.0 131.0 Decode Distances Barcode Density(mil) Near(mm) Far(mm) EAN-8 EAN-8 Code39 Code39 Code39 Code39 nlscan.com Page 13...

  • Page 22: Dimensions Of Hr100 Unit

    Getting to Start Dimensions of HR100 Unit HR100 Left View The figure 1 HR100 Left View has the height dimensions. Unit：mm Figure 1. HR100 Front View HR100 Front View The Figure 2 HR100 Front View has the length dimensions of scan window and handle. Unit：mm Figure 2.

  • Page 23: General Programming

    General Programming Introduction There are 2 ways to program (configure) the Engine, Code Programming and Command Programming. Code Programming The Engine reads a set of specially encoded barcodes to program options and features. In the following sections, we will explain the options and features available and provide the barcodes to program them. This method of programming the Engine is most straight forward.

  • Page 24: Programming Notation

    General Programming General Programming Programming Notation Tools Code Programming ON Code Programming OFF ** Code Programming Off 【Pro CMD：99900032】 This is the notation to disable the Code Programming. There are 3 parts of a notation: The first part of the notation is the barcode for Code Programming »...

  • Page 25: Code Programming On/Off

    General Programming General Programming Code Programming On/Off Tools Code Programming ON Read the “Code Programming ON” barcode to activate “Code Program- ming” function. More than one Code Programming barcodes can be read to configure the Engine. Code Programming OFF If an option or feature needs additional parameters, such as digits, they can be found at the end of this chapter.

  • Page 26: Programming Outline

    General Programming Programming Outline Command Programming Commands under RS232 connection mean using 0x20-0x7D（the displayable characters）to express all commands information. 1、 Configuration State The engine should be in configuration state when programming functions under RS232 connection. In the state, the engine would only accept and execute the commands from communication and feed back.

  • Page 27: Default

    General Programming General Programming Default Tools Code Programming ON Factory Default Read “Load All Factory Default” to reset all parameters to factory default. Code Programming OFF Applicable conditions: User options programming wrong configuration leads to reading mal- » function Forget details of previous programming and start over. »...

  • Page 28: Working Mode

    General Programming General Programming Working Mode Tools Code Programming ON Mode Select Code Programming OFF Shut Down 【Pro CMD：99900100】 ** Hand-held Mode 【Pro CMD：99900110】 Deep Sleep 【Pro CMD：99900101】 Auto Mode 【Pro CMD：99900111】 Sleep 【Pro CMD：99900102】 Interval Mode 【Pro CMD：99900112】 Test Mode 【Pro CMD：99900103】...

  • Page 29: Working Mode Parameters

    General Programming General Programming Working Mode Parameters Tools Code Programming ON For all modes Code Programming OFF Time length to read a barcode (Default 3 seconds.) 【Pro CMD：99900150】 For Interval Mode Only Interval Length 【Pro CMD：99900151】 For Sensor Mode Only Low Sensitivity 【Pro CMD：99900154】...

  • Page 30: Security Level

    General Programming General Programming Security Level Tools Code Programming ON Security Level Code Programming OFF Security Level 1 【Pro CMD：99900120】 Security Level 3 【Pro CMD：99900122】 Security Level 2 【Pro CMD：99900121】 Security Level 4 【Pro CMD：99900123】 nlscan.com Page 30...

  • Page 31: Beeper

    General Programming General Programming Beeper Tools Code Programming ON Beeper Code Programming OFF No Beeper Output 【Pro CMD：99900130】 Medium Frequency & Medium Volume 【Pro CMD：99900135】 ** High Frequency & Loud Volume 【Pro CMD：99900131】 Medium Frequency & Low Volume 【Pro CMD：99900136】 High Frequency &...

  • Page 32: Query Command

    Query Command Tools Introduction Code Programming ON After reading interrelated programming barcodes, the engine will feed information needed back to the Host to achieve the purpose of query. Code Programming OFF Query all the information of product 【Pro CMD：99900300】 Query User ID 【Pro CMD：99900305】...

  • Page 33: Communication Programming

    Communication Programming Introduction Under RS232 connection the engine and the Host use the same communication parameters: baud rate, parity check, data bits select and stop bits select. The engine also supports virtual keyboard (KBW) and the configuration of KBW also be provided. nlscan.com Page 33...

  • Page 34: Serial Port Programming

    Communication Setup Serial Port Programming Tools Code Programming ON Under RS232 connection, the engine and the Host should set communication baud rate to the same to keep normal communication. Baud rate is the bits transmitted per second (8 bits per bytes). The engine and the Code Programming OFF Host must communicate at the same baud rate.

  • Page 35: Check

    Communication Programming Communication Programming Serial Port Programming Tools Code Programming ON Check Code Programming OFF **No Check 【Pro CMD：99902104】 Even Check 【Pro CMD：99902101】 Odd Check 【Pro CMD：99902102】 Stop Digit ** Stop Digit　1 【Pro CMD：99902131】 Flow Controlling ** No Flow Controlling 【Pro CMD：99902140】...

  • Page 36: Kbw Programming

    Communication Programming Communication Programming KBW Programming Tools Code Programming ON Keyboard Layout The keyboard could choose any one of the sixteen layouts which were decided Code Programming OFF previously. No.0 【Pro CMD：99902200】 No.8 【Pro CMD：99902210】 No.1 【Pro CMD：99902201】 No.9 【Pro CMD：99902211】 No.2 【Pro CMD：99902202】...

  • Page 37: Inter-Character Delay

    Communication Programming Communication Programming KBW Programming Tools Code Programming ON Inter-character Delay Code Programming OFF Program Inter-character Delay as 0 ~ 150 ms 【Pro CMD： 99902220】 Characters Transformation Normal 【Pro CMD：99902230】 Lower 【Pro CMD：999002232】 Upper 【Pro CMD：999002231】 Inverse 【Pro CMD：99902233】 CapsLock Normal 【Pro CMD：99902230】...

  • Page 38: Data Format

    Data Format Introduction 1D barcodes could contain digits, letters and symbols, etc. 2D barcodes could contain more data, such as Chinese characters and other multi-byte characters. However, in reality, they do not and should not have enough information we need, such as barcode type, date and time of scan, delimiter, and so on, in order to keep the code short and flexible.

  • Page 39: Prefix Sequences

    Data Format Data Format Prefix Sequences Tools Code Programming ON Code Programming OFF ** CodeID+User Prefix 【Pro CMD：99904010】 User Prefix+CodeID 【Pro CMD：99904011】 nlscan.com Page 39...

  • Page 40: User Prefix

    Data Format Data Format User Prefix Tools Code Programming ON Disable or Enable User Prefix Code Programming OFF User Prefix is added before barcode message. For example, if the user prefix is “AB” and the barcode message is “123”, the Host receives “AB123”.

  • Page 41: Aim Prefix

    Data Format Data Format AIM Prefix Tools Code Programming ON AIM (Automatic Identification Manufactures) defines AIM prefix for many standard barcode formats. The engine will add the identifier before the barcodes. And this identifier is the AIM Prefix. Code Programming OFF **No AIM Prefix 【Pro CMD：99904030】...

  • Page 42: Code Id Prefix

    Data Format Data Format Code ID Prefix Tools Code Programming ON Besides AIM prefix, Code ID prefix can be used to denote barcode format and can be customized. Code Programming OFF The Code ID prefix MUST be one (1) visible English letter, only. ** No Code ID Prefix 【Pro CMD：99904040】...

  • Page 43: User Suffix

    Data Format Data Format User Suffix Tools Code Programming ON Disable or Enable User Suffix Code Programming OFF User suffix is appended to the right of barcode message. For example, if user suffix is “AB”, and the barcode message is “123”, The Host receives “123AB”. **Disable User Suffix 【Pro CMD：99904100】...

  • Page 44: Stop Suffix

    Data Format Data Format Stop Suffix Tools Code Programming ON Disable or Enable Stop Suffix “Stop Suffix” is the termination for a string of barcode messages. It can not be Code Programming OFF formatted like other suffix and prefix. It is fixed to the right and the very end of a barcode transmission.

  • Page 45: Symbols Available

    Symbols Introduction Each type of barcode has its unique attribute. With the programming code, the engine will adjust to the changes of these attributes. Disabling reading of the symbols which do not apply will improve reading performance. Symbols Available Barcode Type Factory Default Barcode Type Factory Default Code 128...

  • Page 46: Code 128

    Symbols Code 128 Tools Code Programming ON Load Factory Default Code Programming OFF ** Load Code 128 Factory Default 【Pro CMD：99910000】 Enable/Disable Code 128 ** Enable Code 128 【Pro CMD：99910002】 Disable Code 128 【Pro CMD：99910001】 When the engine can not read Code 128, please read“Enable Code 128” and try again. Code 128 Code ID Code ID Setting 【Pro CMD：99910005】...

  • Page 47: Select Message Length

    Symbols Code 128 Tools Code Programming ON Select Message Length It is used to program the valid reading length of Code 128. The engine will send an error beep, if the decoded data length does not match the valid Code Programming OFF length.

  • Page 48: Check Digit

    Symbols Code 128 Tools Code Programming ON Check Digit Code Programming OFF Send Check Digit 【Pro CMD：99910006】 Trans FNC1 to GS 【Pro CMD：99910010】 Do Not Send Check Digit 【Pro CMD：99910007】 Trans FNC1 to ~ 【Pro CMD：99910011】 nlscan.com Page 48...

  • Page 49: Ucc/Ean-128

    Symbols UCC/EAN-128 Tools Code Programming ON Load Factory Default Code Programming OFF ** Load UCC/EAN-128 Factory Default 【Pro CMD：99910100】 Enable/Disable UCC/EAN-128 ** Enable UCC/EAN-128 【Pro CMD：99910102】 Disable UCC/EAN-128 【Pro CMD：99910101】 When the engine can not read UCC/EAN-128, please read “Enable UCC/EAN-128” and try again.

  • Page 50: Select Message Length

    Symbols UCC/EAN-128 Tools Code Programming ON Select Message Length It is used to program the valid reading length of UCC/EAN-128. The engine will send an error beep, if the decoded data length does not match the valid Code Programming OFF length.

  • Page 51: Check Digit

    Symbols UCC/EAN-128 Tools Code Programming ON Check Digit Code Programming OFF Send Check Digit 【Pro CMD：99910106】 Trans FNC1 to GS 【Pro CMD：99910110】 Do Not Send Check Digit 【Pro CMD：99910107】 Trans FNC1 to ~ 【Pro CMD：99910111】 nlscan.com Page 51...

  • Page 52: Aim 128

    Symbols AIM 128 Tools Code Programming ON Load Factory Default Code Programming OFF ** Load AIM 128 Factory Default 【Pro CMD：99910200】 Enable/Disable AIM 128 ** Enable AIM 128 【Pro CMD：99910202】 Disable AIM 128 【Pro CMD：99910201】 When the engine can not read AIM 128, please read “Enable AIM 128” and try again. AIM 128 Code ID Code ID Setting 【Pro CMD：99910205】...

  • Page 53: Select Message Length

    Symbols AIM 128 Tools Code Programming ON Select Message Length It is used to program the valid reading length of AIM 128. The engine will send an error beep, if the decoded data length does not match the valid length. Code Programming OFF AIM 128 Message Length is defined by “Min.

  • Page 54: Isbt 128

    Symbols ISBT 128 Tools Code Programming ON Load Factory Default Code Programming OFF ** Load ISBT 128 Factory Default 【Pro CMD：99910300】 Enable/Disable ISBT 128 ** Enable ISBT 128 【Pro CMD：99910302】 Disable ISBT 128 【Pro CMD：99910301】 When the engine can not read ISBT 128, please read “Enable ISBT 128” and try again. ISBT 128 Code ID Code ID Setting 【Pro CMD：99910303】...

  • Page 55: Load Factory Default

    Symbols EAN-8 Tools Code Programming ON Load Factory Default Code Programming OFF ** Load EAN-8 Factory Default 【Pro CMD：99910400】 Enable/Disable EAN-8 ** Enable EAN-8 【Pro CMD：9991402】 Disable EAN-8 【Pro CMD：99910401】 When the engine can not read EAN-8, please read “Enable EAN-8” and try again. EAN-8 Code ID Code ID Setting 【Pro CMD：99910416】...

  • Page 56: Digits Addenda Code

    Symbols EAN-8 Tools Code Programming ON 2 Digits Addenda Code 2 Digits Addenda Code is the one to the right of an ordinary code. Code Programming OFF ** Disable 2 Digits Addenda Code 【Pro CMD：99910405】 Only Read With 2 digits Addenda Code 【Pro CMD：99910407】...

  • Page 57: Expand To Ean-13

    Symbols EAN-8 Tools Code Programming ON EAN-8 expand to EAN-13 “ Do Not Expand to EAN-13 “ — keep original type and digits, do not Code Programming OFF expand. “Expand to EAN-13 by Adding Leading 0s “ — expand to EAN-13 but keep code type.

  • Page 58: Load Factory Default

    Symbols EAN-13 Tools Code Programming ON Load Factory Default Code Programming OFF ** Load EAN-13 Factory Default 【Pro CMD：99910500】 Disable/Enable EAN-13 ** Enable EAN-13 【Pro CMD：99910502】 Disable EAN-13 【Pro CMD： 99910501 】 When the engine can not read EAN-13, please read “Enable EAN-13” and try again. nlscan.com Page 58...

  • Page 59: Check Digit

    Symbols EAN-13 Tools Code Programming ON Check Digit EAN-13 is fixed 13 digits barcode and the last digit is check digit. Check digit Code Programming OFF is a value calculated from the first twelve digits. It is used for checking if the first twelve digits are right.

  • Page 60: Digits Addenda Code

    Symbols EAN-13 Tools Code Programming ON 2 Digits Addenda Code 2 Digits Addenda Code is the one to the right of an ordinary code. Code Programming OFF ** Disable 2 Digits Addenda Code 【Pro CMD：99910505】 Only Read With 2 digits Addenda Code 【Pro CMD：99910507】...

  • Page 61: Issn

    Symbols ISSN Tools Code Programming ON Load Factory Default Code Programming OFF ** Load ISSN Factory Default 【Pro CMD：99910600】 Enable/Disable ISSN ** Enable ISSN 【Pro CMD：99910602】 Disable ISSN 【Pro CMD：99910601】 When the engine can not read ISSN, please read “Enable ISSN” and try again. ISSN Code ID Code ID Setting 【Pro CMD：99910603】...

  • Page 62: Isbn

    Symbols ISBN Tools Code Programming ON Load Factory Default Code Programming OFF ** Load ISBN Factory Default 【Pro CMD：99910700】 Enable/Disable ISBN ** Enable ISBN 【Pro CMD：99910702】 Disable ISBN 【Pro CMD：99910701】 When the engine can not read ISBN, please read “Enable ISBN” and try again. nlscan.com Page 62...

  • Page 63: Isbn Digits

    Symbols ISBN Tools Code Programming ON ISBN Digits Code Programming OFF Use 13 Digits 【Pro CMD：99910704】 ** Use 10 Digits 【Pro CMD：99910703】 ISBN Code ID Code ID Setting 【Pro CMD：99910705】 Example of setting ISBN Code ID to “p” (0x70) 1. Read Enable Code Programming barcode. 2.

  • Page 64: Upc-E

    Symbols UPC-E Tools Code Programming ON Load Factory Default Code Programming OFF ** Load UPC-E Factory Default 【Pro CMD：99911000】 Disable/Enable UPC-E ** Enable UPC-E 【Pro CMD：99911002】 Disable UPC-E 【Pro CMD：99911001】 When the engine can not read UPC-E, please read “Enable UPC-E” and try again. nlscan.com Page 64...

  • Page 65: Check Digit

    Symbols UPC-E Tools Code Programming ON Check Digit UPC-E is fixed 8 digits barcode and the last digit is check digit. Check digit is Code Programming OFF a value calculated from the first seven digits. It is used for checking if the first seven digits are right.

  • Page 66: Digits Addenda Code

    Symbols UPC-E Tools Code Programming ON 2 Digits Addenda Code 2 Digits Addenda Code is the one to the right of an ordinary code. Code Programming OFF ** Disable 2 Digits Addenda 【Pro CMD：99911005】 Only Read With 2 digits Addenda Code 【Pro CMD：99911007】...

  • Page 67: Transmit Default "0

    Symbols UPC-E Tools Code Programming ON Transmit Default “0” The first byte of UPC-E is default to “0”. Code Programming OFF ** Do Not Transmit “0” 【Pro CMD：99911013】 Transmit “0” 【Pro CMD：99911014】 UPC-E Expand to UPC-A “ Do Not Expand “ — keep original type and digits, do not expand. “Expand to UPC-A “...

  • Page 68: Upc-A

    Symbols UPC-A Tools Code Programming ON Load Factory Default Code Programming OFF ** Load UPC-A Factory Default 【Pro CMD：99911100】 Disable/Enable UPC-A ** Enable UPC-A 【Pro CMD：99911102】 Disable UPC-A 【Pro CMD：99911101】 When the engine can not read UPC-A, please read “Enable UPC-A” and try again. UPC-A Code ID Code ID Setting 【Pro CMD：99911115】...

  • Page 69: Check Digit

    Symbols UPC-A Tools Code Programming ON Check Digit UPC-A is fixed 13 digits barcode and the last digit is Check Digit.Check digit Code Programming OFF is a value calculated from the first twelve digits. It is used for checking if the first twelve digits are right.

  • Page 70: Digits Addenda Code

    Symbols UPC-A Tools Code Programming ON 2 Digits Addenda Code 2 Digits Addenda Code is the one to the right of an ordinary code. Code Programming OFF ** Disable 2 Digits Addenda Code 【Pro CMD：99911105】 Only Read With 2 digits Addenda Code 【Pro CMD：99911107】...

  • Page 71: Interleaved 2 Of 5

    Symbols Interleaved 2 of 5 Tools Code Programming ON Load Factory Default Code Programming OFF ** Load Interleaved 2 of 5 Factory Default 【Pro CMD：99911200】 Disable/Enable Interleaved 2 of 5 ** Enable Interleaved 2 of 5 【Pro CMD：99911202】 Disable Interleaved 2 of 5 【Pro CMD：99911201】...

  • Page 72: Check Digit

    Symbols Interleaved 2 of 5 Tools Code Programming ON Check Digit Interleaved 2 of 5 may include Check Digit (not compulsory) following its barcode messages. If included, it must be the last digit. It verifies the barcode Code Programming OFF message.

  • Page 73: Select Message Length

    Symbols Interleaved 2 of 5 Tools Code Programming ON Select Message Length It is used to program the valid reading length of Interleaved 2 of 5. The engine Code Programming OFF will send an error beep, if the decoded data length does not match the valid length.

  • Page 74: Itf-6 Code Id

    Symbols ITF-6 Tools Code Programming ON ITF-6 is a fixed length 6 bytes Interleaved 2 of 5 barcode with check digit. When enabled, ITF-6 precedes 6-byte Interleaved 2 of 5 barcode. Code Programming OFF ** Load ITF-6 Factory Default 【Pro CMD：99911300】 **Disable ITF-6 User Selection 【Pro CMD：99911301】...

  • Page 75: Itf-14 Code Id

    Symbols ITF-14 Tools Code Programming ON ITF-14 is a fixed length of 14 bytes Interleaved 2 of 5 barcode with Check digit. By factory default, it is disabled. Code Programming OFF When enabled, ITF-14 precedes 14-byte Interleaved 2 of 5 barcode. ** Load ITF-14 Factory Default 【Pro CMD：99911400】...

  • Page 76: Deutshe14

    Symbols Deutshe14 Tools Code Programming ON Load Factory Default Code Programming OFF ** Load Deutshe14 Factory Default Deutshe14 Factory Default Factory Default 【Pro CMD：99911500】 Disable/Enable Deutshe14 ** Enable Deutshe14，Do Not Transmit Check Digit 【Pro CMD：99911502】 Disable Deutshe14 【Pro CMD：99911501】 ** Enable Deutshe14， Transmit Check Digit 【Pro CMD：99911503】...

  • Page 77: Deutshe12

    Symbols Deutshe12 Tools Code Programming ON Load Factory Default Code Programming OFF ** Load Deutshe12 Factory Default Deutshe12 Factory Default Factory Default 【Pro CMD：99911600】 Disable/Enable Deutshe12 ** Enable Deutshe12，Do Not Transmit Check Digit 【Pro CMD：99911602】 Disable Deutshe12 【Pro CMD：99911601】 ** Enable Deutshe12， Transmit Check Digit 【Pro CMD：99911603】...

  • Page 78: Coop25（Japanese Matrix 25

    Symbols COOP25（Japanese Matrix 25） Tools Code Programming ON Load Factory Default Code Programming OFF ** Load COOP25 Factory Default 【Pro CMD：99911700】 Enable/ Disable COOP25 **Enable COOP25 【Pro CMD：99911702】 Disable COOP25 【Pro CMD：99911701】 When the engine can not read COOP25, please read “Enable COOP25” and try again. COOP25（Japanese Matrix 25）...

  • Page 79: Check Digit

    Symbols COOP25（Japanese Matrix 25） Tools Code Programming ON Check Digit COOP25 may include Check Digit (not compulsory) following its barcode Code Programming OFF messages. If included, it must be the last digit. It verifies the barcode message. “NO Check, Transmit All” means to read without check and transmit »...

  • Page 80: Select Message Length

    Symbols COOP25（Japanese Matrix 25） Tools Code Programming ON Select Message Length It is used to program the valid reading length of COOP25. The engine will Code Programming OFF send an error beep, if the decoded data length does not match the valid length. COOP25 Message Length is defined by “Min.

  • Page 81: Matrix 25( Europe Matrix 25)

    Symbols Matrix 25( Europe Matrix 25) Tools Code Programming ON Load Factory Default Code Programming OFF ** Load Matrix 25 Factory Default 【Pro CMD： 99912000 】 Enable/ Disable Matrix 25 **Enable Matrix 25 【Pro CMD：99912002】 Disable Matrix 25 【Pro CMD：99912001】 When the engine can not read Matrix 25, please read “Enable Matrix 25”...

  • Page 82: Check Digit

    Symbols Matrix 25( Europe Matrix 25) Tools Code Programming ON Check Digit Matrix 25 may include Check Digit (not compulsory) following its barcode Code Programming OFF messages. If included, it must be the last digit. It verifies the barcode message. “NO Check, Transmit All”...

  • Page 83: Select Message Length

    Symbols Matrix 25( Europe Matrix 25) Tools Code Programming ON Select Message Length It is used to program the valid reading length of Matrix 25. The engine will Code Programming OFF send an error beep, if the decoded data length does not match the valid length. Matrix 25 Message Length is defined by “Min.

  • Page 84: Industrial 25

    Symbols Industrial 25 Tools Code Programming ON Load Factory Default Code Programming OFF ** Load Industrial 25 Factory Default 【Pro CMD：99912100】 Enable/ Disable Industrial 25 **Enable Industrial 25 【Pro CMD：99912102】 Disable Industrial 25 【Pro CMD：99912101】 When the engine can not read Industrial 25, please read “Enable Industrial 25” and try again.

  • Page 85: Check Digit

    Symbols Industrial 25 Tools Code Programming ON Check Digit Industrial 25 may include Check Digit (not compulsory) following its Code Programming OFF barcode messages. If included, it must be the last digit. It verifies the barcode message. “NO Check, Transmit All” means to read without check and trans- »...

  • Page 86: Select Message Length

    Symbols Industrial 25 Tools Code Programming ON Select Message Length It is used to program the valid reading length of Industrial 25. The engine Code Programming OFF will send an error beep, if the decoded data length does not match the valid length.

  • Page 87: Standard 25

    Symbols Standard 25 Tools Code Programming ON Load Factory Default Code Programming OFF ** Load Standard 25 Factory Default 【Pro CMD：99912200】 Enable/ Disable Standard 25 **Enable Standard 25 【Pro CMD：99912202】 Disable Standard 25 【Pro CMD：99912201】 When the engine can not read Standard 25, please read “Enable Standard 25” and try again. Standard 25 Code ID Code ID Setting 【Pro CMD：99912210】...

  • Page 88: Check Digit

    Symbols Standard 25 Tools Code Programming ON Check Digit Standard 25 may include Check Digit (not compulsory) following its Code Programming OFF barcode messages. If included, it must be the last digit. It verifies the barcode message. “NO Check, Transmit All” means to read without check and trans- »...

  • Page 89: Select Message Length

    Symbols Standard 25 Tools Code Programming ON Select Message Length It is used to program the valid reading length of Standard 25. The engine Code Programming OFF will send an error beep, if the decoded data length does not match the valid length.

  • Page 90: Code 39

    Symbols Code 39 Tools Code Programming ON Load Factory Default Code Programming OFF ** Load Code 39 Factory Default 【Pro CMD：99912400】 Enable/Disable Code 39 ** Enable Code 39 【Pro CMD：99912402】 Disable Code 39 【Pro CMD：99912401】 When the engine can not read Code 39, please read “Enable Code 39” and try again Code 39 Code ID Code ID Setting 【Pro CMD：99912414】...

  • Page 91: Check Digit

    Symbols Code 39 Tools Code Programming ON Check Digit Code 39 may include Check Digit (not compulsory) following its barcode message. It verifies the barcode message. Code Programming OFF "NO Check, Transmit All" means to read without check and transmit »...

  • Page 92: Transmit Start & Stop Character

    Symbols Code 39 Tools Code Programming ON Transmit Start & Stop Character Code 39 has one "*" before and another after digits as Start & Stop Character. Code Programming OFF Transmission of “*” can be selected. **Transmit Both “*” 【Pro CMD：99912407】 Transmit Neither “*”...

  • Page 93: Select Message Length

    Symbols Code 39 Tools Code Programming ON Select Message Length Code 39 Message Length is defined by “Min. Message Length” and Code Programming OFF “Max. Message Length “.It is used to program the valid reading length of Code 39. The engine will send an error beep, if the decoded data length does not match the valid length.

  • Page 94: Codabar

    Symbols Codabar Tools Code Programming ON Load Factory Default Code Programming OFF ** Load Codabar Factory Default 【Pro CMD：99912500】 Enable/Disable Codabar ** Enable Codabar 【Pro CMD：99912502】 Disable Codabar 【Pro CMD：99912501】 When the engine can not read Codabar, please read “Enable Codabar” and try again. Codabar Code ID Code ID Setting 【Pro CMD：99912516】...

  • Page 95: Check Digit

    Symbols Codabar Tools Code Programming ON Check Digit Codabar may include Check Digit (not compulsory) following its barcode message. It verifies the barcode message. Code Programming OFF "NO Check, Transmit All" means to read without check and transmit » all bytes including barcode message and Check Digit. "Check, Do Not Transmit Check Digit"...

  • Page 96: Transmit Start & Stop Character

    Symbols Codabar Tools Code Programming ON Transmit Start & Stop Character Code Programming OFF Do Not Transmit Both Start & Stop Character 【Pro CMD：99912506】 **Transmit Both Start & Stop Character 【Pro CMD：99912507】 ** Use ABCD/ABCD As Start & Stop Character 【Pro CMD：99912510】...

  • Page 97: Select Message Length

    Symbols Codabar Tools Code Programming ON Select Message Length Codabar Message Length is defined by “Min. Message Length” and Code Programming OFF “Max. Message Length “.It is used to program the valid reading length of Codabar. The engine will send an error beep, if the decoded data length does not match the valid length.

  • Page 98: Code 93

    Symbols Code 93 Tools Code Programming ON Load Factory Default Code Programming OFF ** Load Code 93 Factory Default 【Pro CMD：99912600】 Enable /Disable Code 93 **Enable Code 93 【Pro CMD：99912602】 Disable Code 93 【Pro CMD：99912601】 When the engine can not read Code 93, please read “Enable Code 93” and try again. Code 93 Code ID Code ID Setting 【Pro CMD：99912610】...

  • Page 99: Check Digit

    Symbols Code 93 Tools Code Programming ON Check Digit Code 93 may include Check Digit (not compulsory) following its barcode message. It verifies the barcode message. Code Programming OFF "NO Check, Transmit All" means to read without check and transmit »...

  • Page 100: Select Message Length

    Symbols Code 93 Tools Code Programming ON Select Message Length It is used to program the valid reading length of Code 93. The engine will Code Programming OFF send an error beep, if the decoded data length does not match the valid length.

  • Page 101: Code 11

    Symbols Code 11 Tools Code Programming ON Load Factory Default Code Programming OFF ** Load Code 11 Factory Default 【Pro CMD：99912700】 Enable/ Disable Code 11 **Enable Code 11 【Pro CMD：99912702】 Disable Code 11 【Pro CMD：99912701】 When the engine can not read Code 11, please read “Enable Code 11” and try again. Code 11 Code ID Code ID Setting 【Pro CMD：99912715】...

  • Page 102: Check Digit

    Symbols Code 11 Tools Code Programming ON Check Digit Code 11 may include Check Digit (not compulsory) following its barcode Code Programming OFF messages. If included, it must be the last digit. It verifies the barcode message. “NO Check, Transmit All” means to read without check and trans- »...

  • Page 103: Select Message Length

    Symbols Code 11 Tools Code Programming ON Select Message Length It is used to program the valid reading length of Code 11. The engine will Code Programming OFF send an error beep, if the decoded data length does not match the valid length.

  • Page 104: Plessey

    Symbols Plessey Tools Code Programming ON Load Factory Default Code Programming OFF ** Load Plessey Factory Default 【Pro CMD：99913000】 Enable/ Disable Plessey **Enable Plessey 【Pro CMD：99913002】 Disable Plessey 【Pro CMD：99913001】 When the engine can not read Plessey, please read “Enable Plessey” and try again. Plessey Code ID Code ID Setting 【Pro CMD：99913010】...

  • Page 105: Check Digit

    Symbols Plessey Tools Code Programming ON Check Digit Plessey may include Check Digit (not compulsory) following its barcode Code Programming OFF messages. If included, it must be the last digit. It verifies the barcode message. “NO Check, Transmit All” means to read without check and transmit »...

  • Page 106: Select Message Length

    Symbols Plessey Tools Code Programming ON Select Message Length It is used to program the valid reading length of Plessey. The engine will Code Programming OFF send an error beep, if the decoded data length does not match the valid length.

  • Page 107: Msi-Plessey

    Symbols MSI-Plessey Tools Code Programming ON Load Factory Default Code Programming OFF ** Load MSI-Plessey Factory Default 【Pro CMD：99913100】 Enable/ Disable MSI-Plessey **Enable MSI-Plessey 【Pro CMD：99913102】 Disable MSI-Plessey 【Pro CMD：99913101】 When the engine can not read MSI-Plessey, please read “Enable MSI-Plessey” and try again. MSI-Plessey Code ID Code ID Setting 【Pro CMD：99913113】...

  • Page 108: Check Digit

    Symbols MSI-Plessey Tools Code Programming ON Check Digit MSI-Plessey may include Check Digit (not compulsory) following its Code Programming OFF barcode messages. If included, it must be the last digit. It verifies the barcode message. “NO Check, Transmit All” means to read without check and trans- »...

  • Page 109: Select Message Length

    Symbols MSI-Plessey Tools Code Programming ON Select Message Length MSI-Plessey Message Length is defined by “Min. Message Length” and Code Programming OFF “Max. Message Length ”.It is used to program the valid reading length of MSI-Plessey. The engine will send an error beep, if the decoded data length does not match the valid length.

  • Page 110: Rss

    Symbols Tools Code Programming ON Load Factory Default Code Programming OFF ** Load RSS Factory Default 【Pro CMD：99913200】 Enable/ Disable RSS **Enable RSS 【Pro CMD：99913202】 Disable RSS 【Pro CMD：99913201】 When the engine can not read RSS, please read “Enable RSS” and try again. RSS Code ID Code ID Setting 【Pro CMD：99913203】...

  • Page 111: Digit Code

    Appendix Digit Code Tools It is must to be read save after read digit code. Code Programming ON Code Programming OFF 【Pro CMD：99900000】 【Pro CMD：99900004】 【Pro CMD：99900001】 【Pro CMD：99900005】 【Pro CMD：99900002】 【Pro CMD：99900006】 【Pro CMD：99900003】 【Pro CMD：99900007】 nlscan.com Page 111...
  • Page 112 Appendix Digit Code Tools Code Programming ON Code Programming OFF 【Pro CMD：99900010】 【Pro CMD：99900014】 【Pro CMD：99900011】 【Pro CMD：99900015】 【Pro CMD：99900012】 【Pro CMD：99900016】 【Pro CMD：99900013】 【Pro CMD：99900017】 nlscan.com Page 112...

  • Page 113: Save And Abort

    Appendix Appendix Save and Abort Tools Code Programming ON In order to save the received data “Save” has to be read after data transition completed. If error occurs when reading data, the wrong data can be deleted and the setting up can be done again.. Code Programming OFF Eg, after a program code is received then ‘1 2 3”...

Table of Contents
