O W n e r ' S M a n U a l
W-1KU

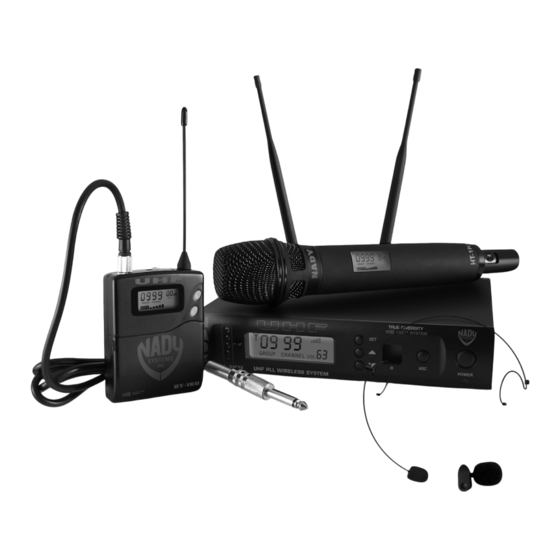

1000 Channel UHF Wireless System

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the W-1KU and is the answer not in the manual?

Questions and answers

Summary of Contents for Nady Systems W-1KU

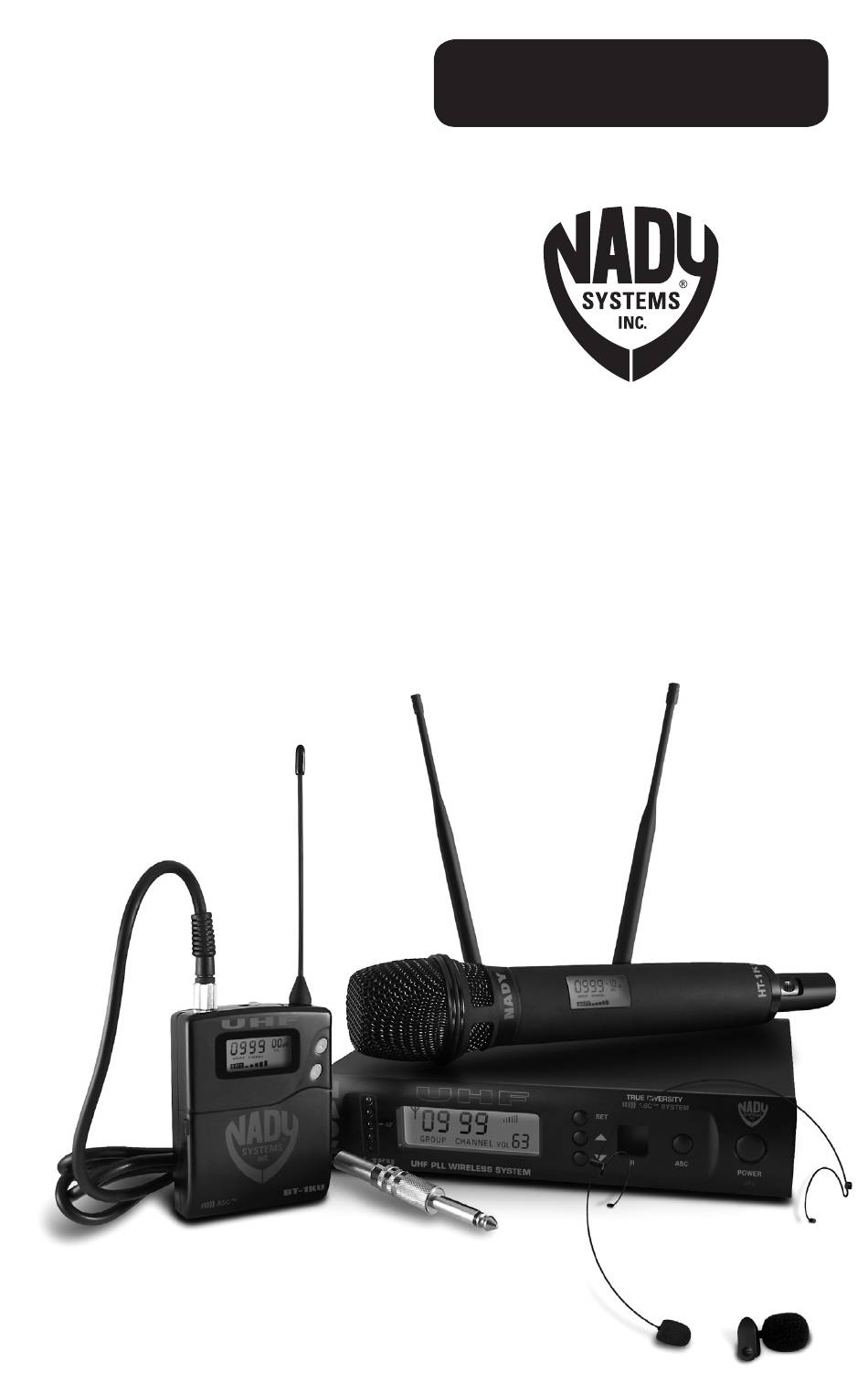

  • Page 1 O W n e r ’ S M a n U a l W-1KU 1000 Channel UHF Wireless System...
  • Page 2: Table Of Contents

    Introduction Thank you for choosing the Nady W-1KU wireless system, and congratulations on your choice. The W-1KU has the best performance and price value in professional UHF wireless, offering clear-channel, frequency-agile operation on the UHF band for interference-free performance in any application or locale. The W-1KU delivers 1000 user selectable channels, frequency synthesized in 00-09 groups and 00-99 channels in the US frequency band 672MHz-697MHz.
  • Page 3: System Features

    System Features W-1KU receiver HT-1KU Handheld and BT-1KU Bodypack Transmitters • Unsurpassed state-of-the-art PLL UHF performance with 120dB dynamic range • Choice of transmitters: HT-1KU or BT-1KU, and operation up to 500 feet line-of sight all with 1000 easily selectable channels: manually with up/down buttons on units or •...
  • Page 4: Quick User Controls Guide

    Quick User Controls Guide W-1KU receiver: Front View GROUP CHANNEL GROUP CHANNEL AF/PEAK LED TREE Shows audio level—the RED UP BUTTON To change the receiver output LED indicates maximum audio level allowable VOL level, GRP/CH up by one step at a time...
  • Page 5 W-1KU receiver: Back View 13. DC INPUT JACK For connecting external 17. UNBALANCED AUDIO OUT Line level audio output—adjustable AC/DC adapter for powering receiver 14. DC POWER SUPPLY UNIT DC15VDC/400mA 18. RF CONNECTORS A/B Antenna jacks for RF True Diversity reception 15.
  • Page 6 Quick User Controls Guide HT-1KU Handheld Transmitter 22. BATTERY COVER Unscrew to insert two 26. SET To scroll LCD menu and set the AA alkaline batteries selected program/function 23. MIC BALL Windscreen 27. POWER HI/LOW RF power level setting for high or low RF output power 24.
  • Page 7 Quick User Controls Guide BT-1KU Bodypack Transmitter (lT, lT/HM or GT) 33. INPUT JACK 3.5mm locking mini jack for 41. IR RECEPTOR SENSOR Infrared LED sensor for connecting audio input cord from lapel mic linking the TX to the RX during IR frequency (LT), Headmic (LT/HM), or instrument (GT) download...
  • Page 8: System Operation

    Group setup mode, then press At power-off the W-1KU receiver will store buttons once for single stepping the last settings entered and re-display through the groups.
  • Page 9 Connecting the audio Output activated and audio transmitted. To turn off, The W-1KU audio output is set up for either press the Power button for three seconds balanced mic (fixed level) or unbalanced line and release.
  • Page 10: Ht-1Ku Handheld Microphone Transmitter

    Screw the battery cover from the receiver (see Selecting the W-1KU back onto the microphone, making sure Receiver Volume Level/Group/Channel and it is securely tightened. Fresh alkaline...
  • Page 11 HT-1KU Transmitter Switches a radio signal on the same channel as the receiver. The Signal Strength and Diversity At Power Off the transmitter will store Indicators on the receiver’s LCD display will the last settings entered and re-display then light up, indicating that the IR link is them at the next power on where it can be completed.
  • Page 12: Bt-1Ku Bodypack Microphone Transmitter

    Use the wireless Ir leD receptor Sensor (41) to download pre-programmed channels Connecting Input audio Source from the receiver (see Selecting the W-1KU Use audio Input (33) 3.5mm locking mini Receiver Volume Level/Group/Channel and jack for connecting the audio input cord...
  • Page 13 more at three seconds, indicating that the input level only, press the Set button three IR transmission is over. Upon successful times to select the volume input level data transfer (usually in less than two setting. Use the to change in four seconds) the transmitter’s backlight will steps from 0dB to -30dB (for loudest input).
  • Page 14 Operating the BT-1KU Instrument Use (BT-1KU/GT only) Bodypack Transmitter Secure the connection of the GT (instrument) cable by lining up the slot of the 3.5mm During normal operation with the unit mini connector and turning the ring to powered on, the transmitter power level can be changed by sliding the rF Power securely lock in.
  • Page 15: Specifications

    <0.5% Modulation FM (F3E) +/-25kHz normal, +/-75kHz max Operating range 150-250 feet typical, 500+feet max line-of-sight W-1KU reCeIVer SPeCIFICaTIOnS receiver System Dual conversion Super Heterodyne with True Diversity (two complete receiver sections with optimum audio selected) Selectivity 60dB, normal +/-75kHz offset...
  • Page 16: Cautions And Troubleshooting

    To reprogram, you must first find an open channel. To do this, follow the operating Please also note the pickup pattern procedure outlined in Selecting the W-1KU characteristics of the microphone selected. Receiver Volume Level / Group / Channel. Unidirectional mics are more resistant to With the associated transmitter off, scroll feedback.
  • Page 17: Miscellaneous Tips

    Miscellaneous Tips • For optimum operation with external • For the best operation, the receiver antennas, low loss RF shielded cable should be placed at least 3’ (1 m) above should be used and the length of the the ground and 3’ (1 m) away from a wall cable should not exceed 10’...
  • Page 18: Frequency

    Nady Service Department. Ship your unit prepaid to: Nady Systems, Service Department, 6701 Shellmound Street, Emeryville, CA 94608. Include a brief description of the problem you are experiencing. For service of a unit under warranty, please follow the instructions in the following section.
  • Page 19: Warranty

    Nady Systems, Inc. for repair. The warranty is null and void if any Nady serial number has been removed or defaced.
  • Page 20 6701 Shellmound Street | Emeryville, CA USA 94608 T 510.652.2411 | F 510.652.5075 | www.nady.com...
