Install the computer on your bike

Install the Sensor and Magnet

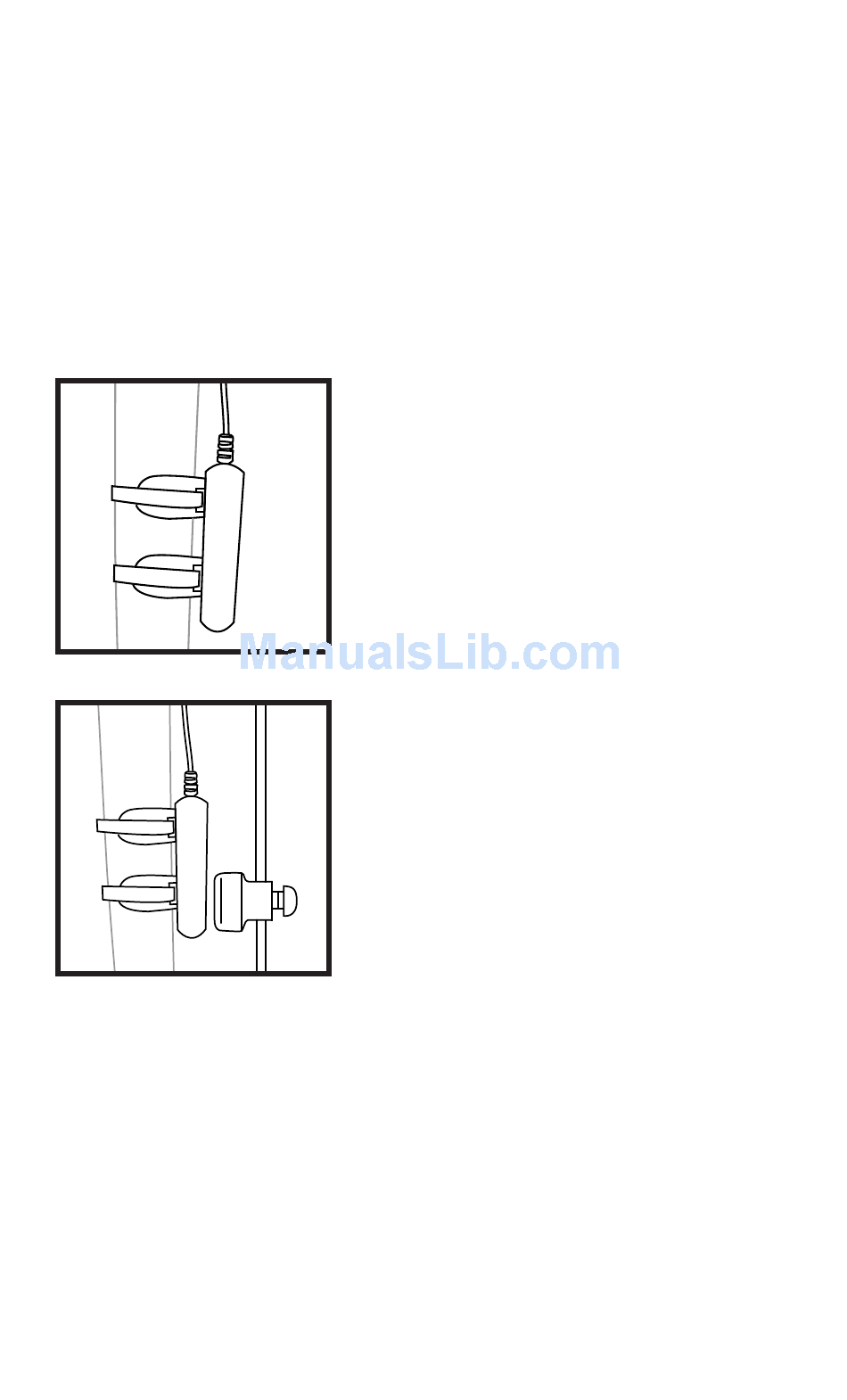

1. Position the sensor unit to the inside of
either the right or left fork blade between 3-6in
(75-150mm) up from the fork blade tip (Fig. 14).
Attach the sensor to the fork blade with quick ties,
Fig. 14
Fig. 15
and tighten the magnet. Trim excess quick tie
length with a scissors.
E.8
but do not tighten the ties yet.
2. Attach the wheel
magnet to the spoke, aligning
the magnet with the sensor
(Fig. 15). The magnet should
have 3-5 mm clearance from
the sensor. If the sensor
and magnet are too close, or
touching, rotate the sensor
unit away from the magnet
until adequate clearance is
achieved.
3. Once correct orienta-
tion is achieved, tighten the
sensor attachment quick ties
