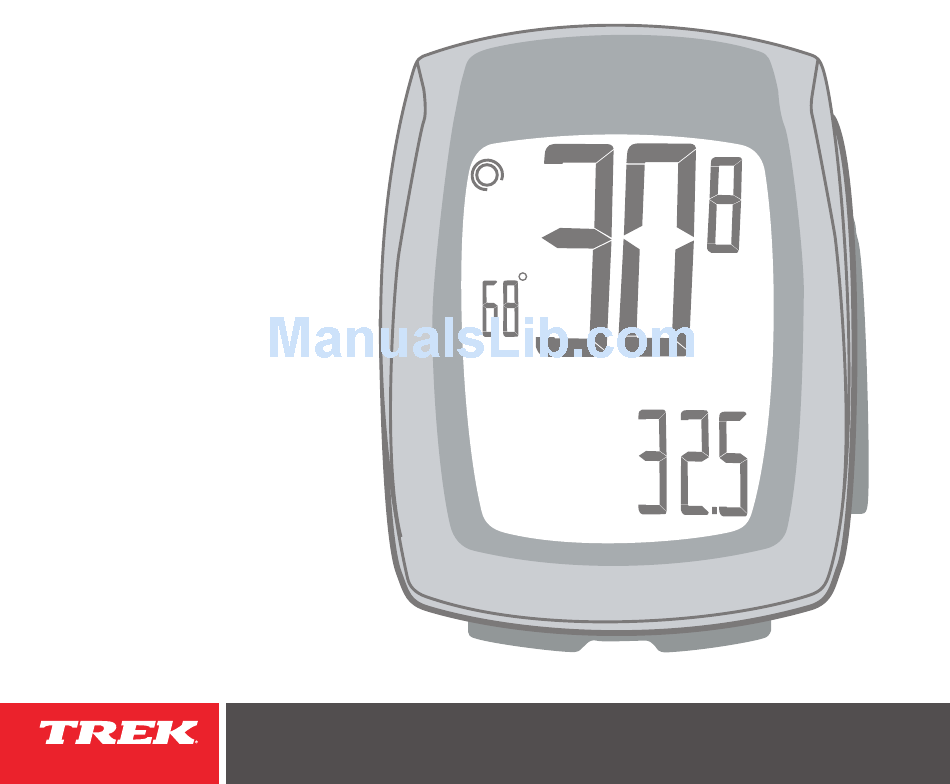

TREK INCITE 9i and 11i
Bicycle Computer Owner's Manual
This manual explains the installa-
tion and use of the Trek Incite 9i
and 11i bicycle computer. Please
read this manual carefully and
save it for future reference.
If you do not understand the
information in this manual, or
you have a question about your
Incite 9i computer that this
manual does not cover, consult
your Trek dealer. If you have a
question or problem that your
Trek dealer can't handle, contact
us at:
Trek Bicycle Corporation
Attn: Customer Service
801 W. Madison Street
Waterloo, Wisconsin 53594
http://www. trekbikes.com
(920) 478-4670
F
CLK TME AVG
MAX
© Copyright Trek Bicycle Corporation
2006 All rights reserved
MPH
TRP AVG

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the INCITE 11i and is the answer not in the manual?

Questions and answers

Related Manuals for Trek INCITE 11i

Summary of Contents for Trek INCITE 11i

  • Page 1 TREK INCITE 9i and 11i Bicycle Computer Owner’s Manual This manual explains the installa- tion and use of the Trek Incite 9i and 11i bicycle computer. Please read this manual carefully and save it for future reference. If you do not understand the...

  • Page 2: Table Of Contents

    CONTENTS Safety and general guidelines ...1 Functions ...2 Installation ...4 Placing the computer on the handlebar ...5 Placing the magnet ...7 Attaching the computer wire ...8 Attaching the sensors ...9 Easy setup (ReSet) ...11 ReStart- Getting ready to ride ...17 Additional information ...18 Troubleshooting ...19 Replacing the battery ...20...

  • Page 3: Safety And General Guidelines

    SAfETy ANd gENERAl guIdElINES While riding your bicycle, do not stare at the computer for long periods of time (Figure 1). If you do not watch the road, you could hit an obstacle, which may cause you to lose control and fall.

  • Page 4: Functions

    fuNCTIONS Table - Function abbreviations, names, and explanations function Explanation CloCK Time of day Displays in hours and minutes, or stopwatch showing seconds. 2-hour with AM/PM or 24-hour format Highest reading: 23:59 (clock) oDoMETEr Distance ridden Displays in miles or kilometers. TrP-Trip (since last restart) TTl- Total since last reset Highest reading: 99,999...
  • Page 5 SPEED Always displays Current speed of the bicycle in miles per hour (MH) or kilometers per hour (KMH) AVG- Average speed since last restart, displayed to tenths. MAX- Highest value since last restart Highest readings: 80.5mph or 29.6kph WHEEl Always displays SElECTIon Indicates which wheel setting is in use by computer Temperature...

  • Page 6: Installation

    INSTAllATION Stem mount Handlebar mount Figure 3- location on bicycle of sensors and computer Tools needed: • Electrical tape • Slot-type screwdriver • Phillips-type screwdriver • Scissors Installation Speed sensor Cadence sensor...

  • Page 7: Placing The Computer On The Handlebar

    Placing the computer on the handlebar The Trek Incite 9i or 11i computer can be mounted on the handlebar or on the stem (Figure 3). To install the computer on handlebar 1. Select the bar clamp that fits your bike.
  • Page 8 Figure 5- Make sure the com- puter cannot be bounced off. Figure 6- nylon tie threaded through computer base Installation Check that the computer base cannot be rotated around the handlebar, and that the computer cannot slide backwards on the computer base (Figure 5).

  • Page 9: Placing The Magnet

    The wheel magnet must be aligned so that it passes across the sensor. As the magnet passes the sensor, it must be no further from the sensor than 1 to 3mm (1/32 to 1/8 inch). The wheel magnet has a ‘T’ shaped slot with two configura- tions: round spokes and flat or bladed spokes (Figure 7).

  • Page 10: Attaching The Computer Wire

    Attaching the computer wire The computer wire is usually longer than needed. Extra wire length can be diverted by wrapping it around the brake housing prior to routing it down the fork blade or down tube (Figure 8). Make sure the computer wire is not pulled tight when the handlebar is turned all the way to either side.

  • Page 11: Attaching The Sensors

    Attaching the sensors The magnet must pass across the line on the sensor (Figure 9). These instructions are written for the front wheel, but apply equally to installing the magnet and cadence sensor which go on the left crank and the frame’s chainstay (Figure 10).
  • Page 12 and magnet by spinning the wheel and noting if the computer is Figure - Trim excess nylon tie length Installation displaying speed. If the computer shows current speed, the sensor is reading the magnet. If the computer is not displaying a value, realign the sensor and magnet until one is displayed.

  • Page 13: Easy Setup (Reset)

    You can program the starting values of your computer in a single, easy procedure: • Units • Clock • Wheelsize • Odometer The Units setting tells the computer which conversion to use: metric or SAE (“English”): MH = miles KMH = kilometers You can set the clock for 12 or 24 hour display, which changes how time appears in the afternoon, such as 3PM: 12 hour clock...

  • Page 14: Using The Buttons

    using the buttons CLK TME AVG TRP AVG Mode Figure 2- Buttons on the Incite 9i and i computer To set the computer, you must buttons in a specific sequence. To set the units Mode Cycle Set• 2. Hold KMH or MH flashes. Easy setup (reSet) When setting the computer, there are three ways to use the buttons.
  • Page 15 Cycle Mode MH and KMH interchange on the screen. Set• 4. Push to select. The temperature icon display. Cycle Mode to C or F Set• 6. Push to select. The computer returns to the start screen. To set the odometer Cycle Mode to ODO (Figure 13).
  • Page 16 To set wheel size Both the 9i and 11i allow you to use two different wheel sizes. The icon for Wheel 1 is a small circle. The icon for Wheel 2 is a partial circle surrounding the Wheel 1 icon (Figure 14).
  • Page 17 To select the wheel for use Cycle Mode to TRP Mode 2. Hold the left The Wheel Select icon changes (Figure 14). Repeat step 2 to change again. Mode and the right together. Mode Easy setup (reSet)

  • Page 18: To Set Clock

    To set Clock Cycle Mode to CLK (Figure 15). Set• 2. Hold “12” or “24” flashes. TME AVG MAX TRP AVG Figure 5- CloCK screen Easy setup (reSet) Cycle Mode 12 and 24 interchange on the screen. Push Set• to select The clock appears on the screen with the Hour flashing.

  • Page 19: Restart

    RESTART- gETTINg REAdy TO RIdE Your computer stores data for two intervals- since last ReSet and since last ReStart. ReSet sets ALL data to zero. ReStart sets only the Trip data to zero. The trip modes include • TRP • TME •...

  • Page 20: Additional Information

    AddITIONAl INfORMATION Changing mode Once the computer is programmed and installed, it is very easy to use. To change to different modes (functions), simply Mode button until the desired function appears, shown by the spelled name of the function. Removing the computer from the computer base The computer is held on its base by a flexible snap.

  • Page 21: Troubleshooting

    The Incite 9i computer is designed to be easy to install and maintain. However, computers occasionally have problems. Table 3 shows some possible problems, causes, and solutions: Table 3- Common problems and solutions Blank screen Computer is in shipping mode. Push a button. Battery is dead, or installed incorrectly.

  • Page 22: Replacing The Battery

    REPlACINg ThE BATTERy If the computer is giving erratic information, the computer or hear rate strap battery may be running low on power (normally accompanied by the low battery icon, Figure 16). Replace the batteries whenever the computer malfunctions, or every 6 months.
  • Page 23 4. Lift the battery cover, exposing the battery. Be careful to avoid losing the rubber O-ring seal. 5. Remove the old battery. It may be possible to shake the battery out. Otherwise, carefully pry the battery up with a thin tool or knife blade. 6.

  • Page 24: Setting Custom Wheel Size

    SETTINg CuSTOM WhEEl SIzE The procedure is almost the same as the basic setup on pages 13-14, except instead of picking a wheel size from the menu, you can program in a 4-digit number. Selecting the custom value 4-digit number There are two methods for selecting the custom wheel size value:...
  • Page 25 Mode 4. Push to select. Wheel size appears. Note: If you want to set a custom wheel size, go to page 24 now. Mode Cycle through the wheel sizes tro the 4-digit number. Set• 6. Push The left-hand digit flashes. Cycle Mode to the desired value.
  • Page 26 Figure 9- Measuring rollout for wheel size 3. While you sit on the bike, have the helper roll the bike forward one revolution of the wheel, so that the valve stem is again directly over the floor. 4. Mark the new location of the valve stem. 5.

  • Page 27: This Warranty Does Not Cover

    Trek Bicycle Corporation warrants each new Incite computer against defects in workmanship and materials. This warranty covers Trek Incite computer models 6i, 8i, 9i, 11i, ACH, and ACH Digital for a period of two years from the date of sale. This warranty does not cover •...
