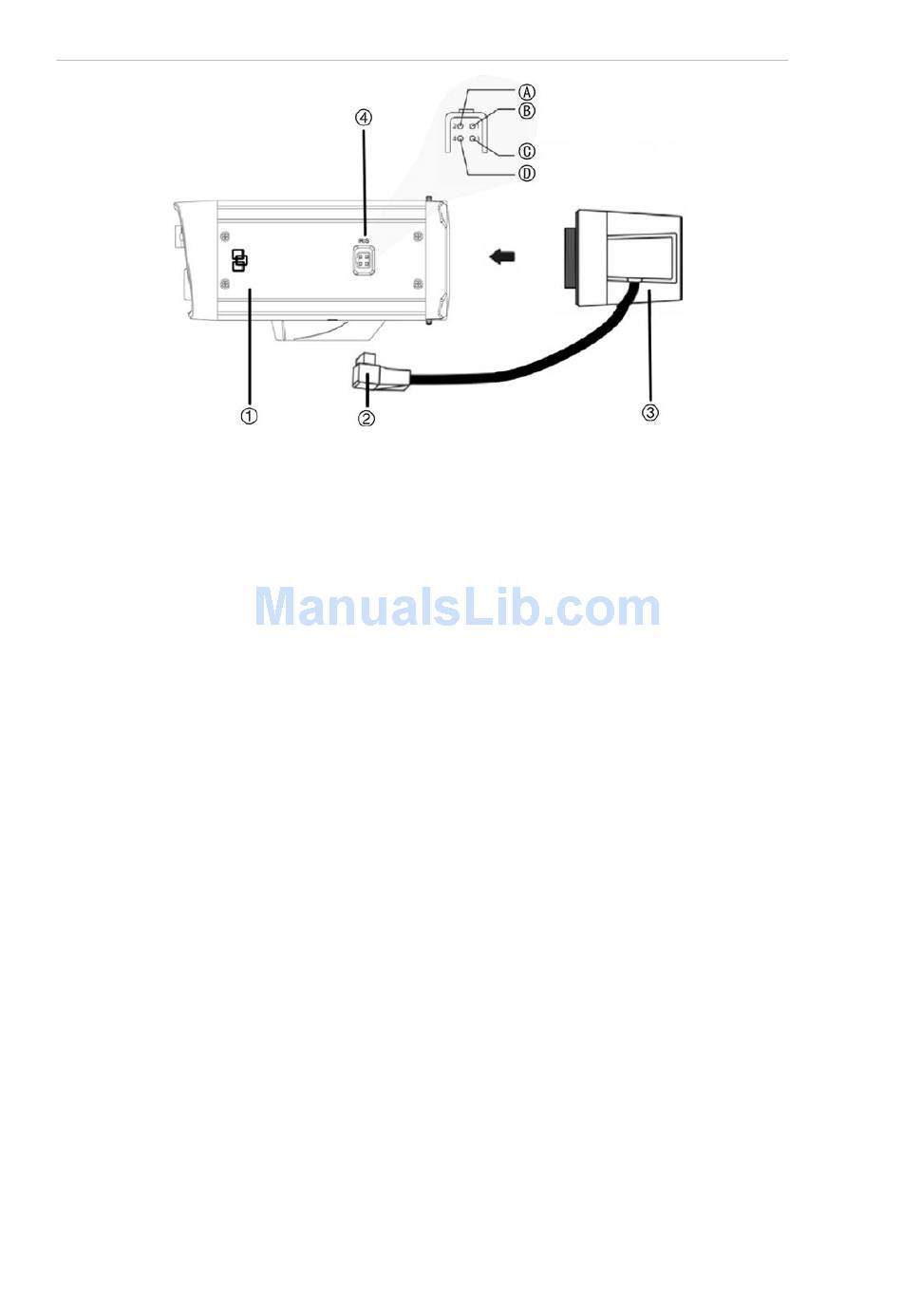

Figure 3: Attaching the lens
1. Camera
2. Autoiris lens plug
3. Lens (autoiris shown)
To attach the lens:
1. Screw the lens clockwise onto the lens mount of the camera.
Note: Please prevent dust from entering between the lens mount and the
lens.
2. For optimal performance, please use an auto iris lens. Plug the auto-iris drive
cable to the 4-pin interface on the side of the camera.

Connect the power cable

For UVC-6120-1-P/N
1. With a screwdriver, loosen the ~AC24V/DC12V and GND terminal screws on
the terminal block.
2. Connect a universal 12 VDC/24 VAC power supply to the terminal block.
Note: The terminal block is not polarity sensitive. Either power lead can be
connected to either terminal connector. There is no need for an isolated
ground wire. The two power terminals can accept any polarity and any
combination of power that equals 12 VDC or 24 VDC.
3. Retighten the terminal screws until snug, ensuring that the power leads are
secure.
4. Supply power to the unit by plugging the power supply into a proper source.
Note: The power LED illuminates to show that the camera is receiving power.
If it does not illuminate, check the terminal block connections and the power
source.
6
4. DC type autoiris lens leads
A. Damping coil (+); B. Damping coil (-);
C Driving coil (+); D Driving coil (-)
UltraView UVC-6120-1 Digital WDR Camera User Manual
