Programming

Once the camera hardware has been installed, the camera can then be
configured.

Access the Main menu

The Main menu provides access to the camera configuration options. The on-
screen display (OSD) is only available in English.
Program the camera by attaching a standard video monitor to the system.

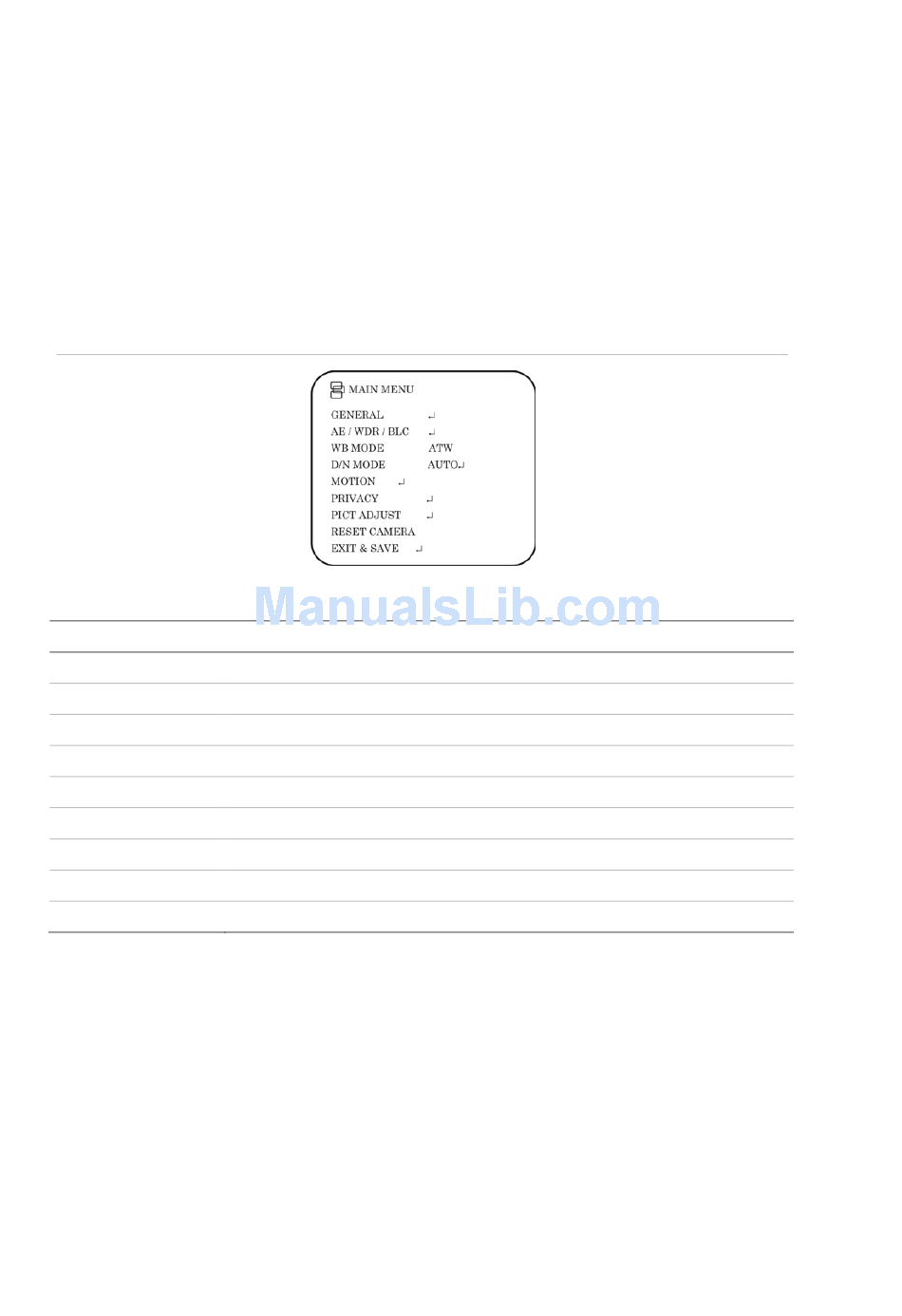

Figure 4: The Main menu
Table 2: Main menu description
Menu item
General
AE/WDR/BLC
WB mode
D/N mode
Motion
Privacy
Pict adjust
Reset camera
Exit & save
To access the Main menu:
1. Press the OSD control pad (Enter) to access the Main menu and its
submenus.
2. Push the pad up, down, left and right to move between menu options.
3. Press the OSD control pad to select an option.
4. When in a sub menu, select
5. To exit the Main menu, move the cursor to
and press Enter. All changes are saved.
8
Description
Defines the camera ID, mirror, and digital noise reduction (DNR) set up.
Defines the lens type as well as the WDR/BLC, AGC, and flicker set up.
Defines the white balance (WB) set up.
Defines the day/night (D/N) set up.
Defines the motion detection set up.
Defines privacy mask set up.
Defines the image quality functions.
Resets the camera to factory default settings.
Exits the menu and returns to live mode. Saves changes made.
Return to return to the previous menu.
Exit at the bottom of the screen
UltraView UVC-6120-1 Digital WDR Camera User Manual
