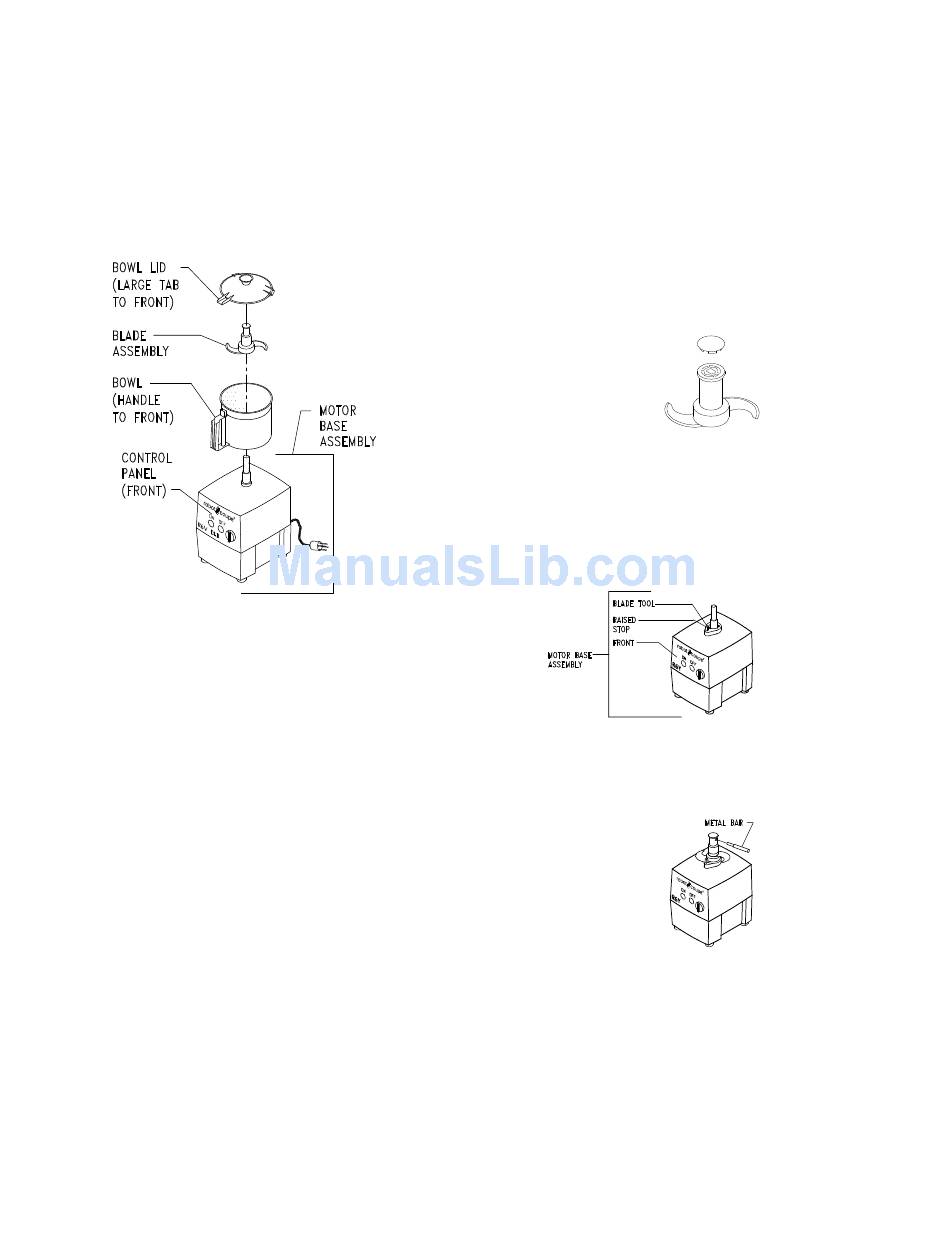

C. Assembling the Cutter Bowl Attachment
1. The cord should always be unplugged during assembly
and disassembly.
2. With the handle turned to the front, put the bowl down on
the motor base. Turn the bowl handle to the left of center
and the bowl should drop into place level with the top of the
motor base.
3. Turn the handle back to the right until it comes to a stop
and is centered with the front of the motor base.
4. Put the blade on the motor shaft and turn until it drops
into place. The bottom blade should be parallel to and
almost touching the bottom of the bowl.
5. With the long tab on the bowl lid turned to the left of
center, put the lid on the bowl and turn counterclockwise
until it stops. The long tab should be centered over the
bowl handle.
6. DO NOT OPERATE THE MACHINE UNLESS IT IS
PROPERLY ASSEMBLED AND THE LID IS FULLY
SEATED AND CENTERED OVER THE BOWL!
D. Disassembly of the cutter bowl attachment.
STEP #1 Turn the machine OFF and UNPLUG it.
STEP #2 Rotate bowl lid clockwise and lift off.
STEP #3 Remove the blade assembly.
STEP #4 Locate the release trigger on the lower back portion
of the bowl handle. Pull the trigger and, at the same time,
turn the bowl clockwise and lift free.
E. Blade Assembly / Disassembly
The blade should be disassembled and cleaned at least
once a day and after each day's use.
R502 Blade:
1. Unplug the cord and wear cut-resistant gloves!
2. There is a removable cap in the top of the Blade. The cap
should be removed before cleaning. To remove the cap, push
a long blunt object such as a screwdriver, through the bottom
of the blade, and knock out the top cap.
R602 Blade:
1. Unplug the cord and wear cut-resistant gloves!
2. Locate the blade tool shipped with your machine and put
it down over the motor shaft with the raised stop facing the
front of the machine.
3. Put the blade on the motor shaft so that the center of the
blade assembly rests flat on the blade tool. Insert the metal
bar into one of the holes in the blade cap.
4. Turn the blade cap clockwise to tighten or counterclock-
wise to loosen. The bottom blade should hit the stop on the
blade tool which prevents the assembly from turning. Do
not overtighten.
Continued next page
R502 and R602 Operation Manual
Series E versions
5
