OPERATION MANUAL
I.
INTRODUCTION
II.
ASSEMBLY/DISASSEMBLY INSTRUCTIONS
III.
OPERATING INSTRUCTIONS
IV.
PREVENTIVE MAINTENANCE GUIDE
V.
TROUBLE SHOOTING AIDS
VI.
SERVICE AGENCY LISTING
robot coupe U.S.A., Inc.
P.O. Box 16625, Jackson, MS 39236-6625
280 South Perkins St., Ridgeland, MS 39157
email: robocoup@misnet.com
website: www.robotcoupeusa.com
1-800-824-1646
FOR
Models
R602V Series E
Serial Numbers: 544xxxxx03
R602V Series E Operation Manual
August 2009
Advertisement
Related Manuals for Robot Coupe E Series
Summary of Contents for Robot Coupe E Series
- Page 1 Serial Numbers: 544xxxxx03 INTRODUCTION ASSEMBLY/DISASSEMBLY INSTRUCTIONS III. OPERATING INSTRUCTIONS PREVENTIVE MAINTENANCE GUIDE TROUBLE SHOOTING AIDS SERVICE AGENCY LISTING robot coupe U.S.A., Inc. P.O. Box 16625, Jackson, MS 39236-6625 280 South Perkins St., Ridgeland, MS 39157 email: robocoup@misnet.com website: www.robotcoupeusa.com 1-800-824-1646 August 2009...

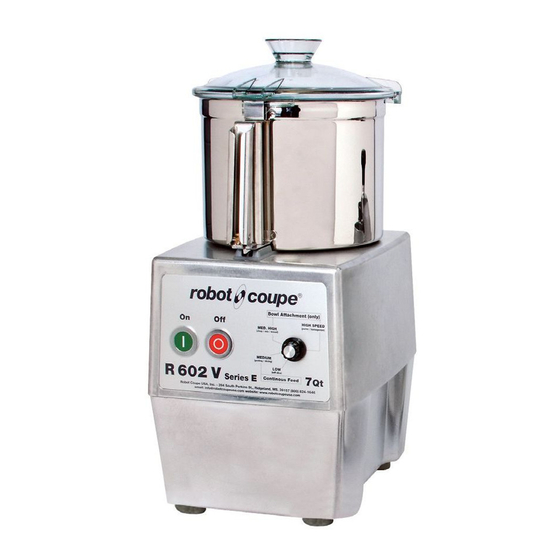

- Page 2 R602V Series E Operation Manual I. INTRODUCTION The Robot Coupe commercial food processor performs a host of culinary feats. It is specifically designed for high speed and quality vegetable processing. The Robot Coupe also provides a wealth of safety and operat- ing features to make volume food preparation a pleasure rather than a chore.
- Page 3 R602V Series E Operation Manual II. ASSEMBLY / DISASSEMBLY INSTRUCTIONS A. Assembling the Continuous Feed Attachment STEP #1 Unplug the machine. Place the motor base assembly at a comfortable height on a sturdy work surface. Remove the plastic discharge plate from inside the continuous feed attachment. Place the continuous feed attachment on the motor base with the release button at front center of the motor base assembly.
- Page 4 R602V Series E Operation Manual Warning Wear cutting gloves when handling the cutting discs or the blade. STEP #3 IF YOU ARE PREPARING TO SLICE OR JULIENNE: Place the disc of your choice on the motor shaft and turn clockwise until it drops into place and is fully seated. The top of the disc should be just above the surface of the continuous feed attachment.
- Page 5 R602V Series E Operation Manual Step #3 Remove the cutting plate. Wear cutting gloves. Rotate the plate slightly counterclock- wise, then lift up and off of the motor shaft. Remove the dicing or French fry grid (if any) then, lift out the plastic discharge plate.
- Page 6 R602V Series E Operation Manual E. Blade Assembly/Disassembly III. OPERATING INSTRUCTIONS A. GENERAL OPERATION INSTRUCTIONS The R602V is a state-of-the-art processor. It utilizes state-of-the-art electronics to control and monitor the motor speed. This unit offers a infinitely variable speed ranging from 370 to 3000 revolutions per minute (RPM). This wide range of speed is used to match the product to be processed to the best cutting speed of the cutting blades.
- Page 7 R602V Series E Operation Manual Some applications, such as mixing dry powders, may require the use of lower speeds with the bowl attach- ments. However, a controlled chop and good puree will not be accomplished at the lower speeds with the bowl attachment.
-
Page 8: Keep In Mind
R602V Series E Operation Manual CONTINUOUS FEED ATTACHMENT: This attachment is always used with speeds less than 1725 RPM (medium high). Running the machine with this attachment at speeds higher than me- dium high (1725 RPM) should not be done under any circumstances. The continuous feed attachment should only be run at speeds approaching the medium high setting during a shredding operation such as shredding carrots or cabbage. - Page 9 R602V Series E Operation Manual THE UNIT SHOULD BE IN THE OFF POSITION EXCEPT WHEN PROCESSING IS UNDERWAY . It is recommended that the machine be operated on a 50% duty cycle. This is easily accomplished since the preparation time (cleaning, coring, peeling, and loading) takes longer than the processing time.
- Page 10 The standard machine comes with two (2) plates. Check your most current price list for which plates are included as standard. User applications may require additional plates. The Robot Coupe processor will perform a variety of functions: slicing, grating, dicing, and julienne. There are a total of 34 different plates available to perform these functions (see below).
- Page 11 R602V Series E Operation Manual There are eight grating plates available for use with the R6: Part Number Size MM Inches (Approx.) 28055 X-Fine 28061 Hard cheese 28056 1.5 mm 1/16" 28057 2 mm 5/64" 28058 3 mm 1/8" 28063 5 mm 3/16"...
- Page 12 R602V Series E Operation Manual When dicing tomatoes, green peppers, onions, or celery always insure that the product is introduced into the machine so that the slicing plate will be slicing across the grain of the vegetable. CAUTION: The softer the produce, the less acceptable will be the finished product. When dicing tomatoes, green peppers, onions, or celery always insure that the product is introduced into the machine so that the slicing plate will be slicing across the grain of the vegetable.
- Page 13 R602V Series E Operation Manual C. Operation of the Cutter Bowl Attachment The cutter bowl attachment is used for chopping, grinding, pureeing, blending, mixing, and kneading of ingredients required in most every recipe. With the power switch off and the bowl and blade secured in place (per previous instructions) you are now ready to add product to the bowl.
-
Page 14: General Hints
Remove the continuous feed and any plates or other attach- ments before relocating the machine. Your Robot Coupe should never be picked up by the continuous feed lead, the bowl or the cord. Always lift from the bottom of the motor base assembly. Care should be exer- cised in relocating it. - Page 15 Make sure the continuous feed assembly is fitted on flush before operating the machine. Your Robot Coupe is a piece of kitchen equipment and like all other kitchen equipment, extreme care and caution should be used when operating. Although training requirements are minimal, only responsible individuals familiar with this operation manual should be allowed to operate your Robot Coupe.
- Page 16 R602V Series E Operation Manual DO NOT use excessive force with the pusher. DO NOT leave the machine ON when not processing food. DO NOT lift the machine by anything other than the motor base. DO NOT operate a machine unless it is completely assembled and all parts V.
- Page 17 VI. SERVICING OF YOUR ROBOT COUPE Your Robot Coupe has a one year limited warranty against defects in parts and workmanship. Should the unit require service, check with your distributor to see where local service is available. If not or if you wish your unit to be serviced at the factory, call for a return merchandise authorization (RMA) number, and upon receipt of same, ship it PREPAID and insured to our factory address.
- Page 18 Note the hole from which each screw is removed. Reinstall all screws to their original positions. 3. Use the robot coupe stone or any good sharpening stone. 4. Hold the blade, bevel side up, flat on the edge or corner of a sturdy table.
- Page 19 BLADES. 1. Put on your cutting gloves. 2. Use the robot coupe stone or any good sharpening stone. 3. Hold the blade flat on the edge or corner of a sturdy table. 4. With the other hand hold the stone at a 30 degree angle against the top bevel of one blade.
- Page 20 R602 V Series E ® Variable Speed, 120 Volt, 1 Phase, 60Hz 3 HP, 370 - 3450 RPM, 12 Amps Serial number 544xxxxx03 robot coupe R602 V Series E U.S.A., Inc. Serial number 544xxxxx03 Index Pièce / Part...
- Page 21 KEEP ALL ORIGINAL CONTAINERS AND PACKING MATERIALS FOR CARRIER INSPECTION. Robot Coupe U.S.A., Inc., Robot Coupe S.A. or any of their affiliates, distributors, officers, directors, agents, employees, or insurers will not be obligated for consequential or other damages, losses, or expenses in connection with or by reason of the use of or inability to use the machine for any purpose.
