- Page 1 OPERATION MANUAL MODEL R10, R10P, and R10U robot coupe U.S.A., Inc. P.O. Box 16625, Jackson, MS 39236-6625 280 South Perkins St., Ridgeland, MS 39157 email: robocoup@misnet.com website: www.robotcoupeusa.com 1-800-824-1646...
- Page 2 R10 Operation Manual I. Introduction II. Operation Instructions A. Blade Assembly B. Controls C. Operation D. Emptying the bowl E. Cleaning III. Preventative Maintenance...
-
Page 3: Important Notice

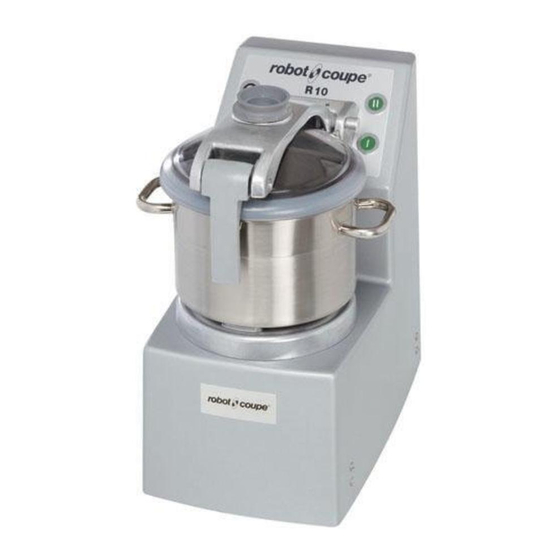

R10 Operation Manual IMPORTANT NOTICE DRIVE SHAFT ROTATION Three phase motors may rotate either direction. Required motor rotation is counterclockwise. Changing the motor rotation requires a qualified electrician. See note on end of power cord. - Page 4 Robot Coupe model R10, 10 quart Vertical Cutter Mixer, is specifically designed for quality, high speed food preparation. The R10 can prepare a variety of foods ranging from a coarse chop to a fine puree. You can prepare fresh salads, sauces, pates, mousses, salad dressings, blends, prepare fine and coarse sausage mixtures, meat salads, mashed potatoes, mix and knead all doughs, pie crusts, flake pastries, and emulsify meats, nuts, and other fruits and vegetables.
- Page 5 A. Blade Assembly The R10 blade assembly comes assembled from the factory. The blade assembly is designed so that the blades can be adjusted for large or small batches. The blade assembly should be completely disassembled after each days use, washed completely, and allowed to air dry before reassembled.
- Page 6 R10 Operation Manual There are seven important points to remember about the blade assembly: (1) The blades are extremely sharp, take care when working around and handling the blades. (2) The bottom blade must always stay on the bottom of the blade support.
- Page 7 MINI BOWL INSTRUCTIONS FOR MODEL R10U The Robot Coupe Model R10 Vertical Cutter Mixer has available a 3 1/2 quart mini bowl attachment. The mini bowl kit may be purchased with the machine as model R10U or separate as part number R8U090.
- Page 8 B. Controls Note: The Robot Coupe model R10 is available with either a two speed motor, or a single speed motor. The single speed version of the R10 is the model R10P. The following section is written to detail the two speed machine (R10) controls.
- Page 9 SPECIAL NOTE: The model R10 three phase must be limited to no more than 80 pulses (quick starts and stops) within a one hour period. The model R10P single phase should be limited to 30 pulses per one hour period.
-
Page 10: Emptying The Bowl
R10 Operation Manual D. EMPTYING THE BOWL After the product has been run in the bowl, make certain that the speed selector is in the middle off position, and for extra safety unplug the machine. NEVER attempt to open the lid until the blades have come to a complete stop. -
Page 11: Preventative Maintenance
R10 Operation Manual III. PREVENTATIVE MAINTENANCE The Robot Coupe Vertical Cutter Mixers are designed to give years of maximum trouble free performance. Adherence to the operating instructions as well as keeping the unit clean will further ensure good perfor- mance. - Page 16 R10 Operation Manual...
- Page 17 R10 Operation Manual...
- Page 18 R10 Operation Manual...
- Page 20 KEEP ALL ORIGINAL CONTAINERS AND PACKING MATERIALS FOR CARRIER INSPECTION. Robot Coupe U.S.A., Inc., Robot Coupe S.A. or any of their affiliates, distributors, officers, directors, agents, employees, or insurers will not be obligated for consequential or other damages, losses, or expenses in connection with or by reason of the use of or inability to use the machine for any purpose.
