P516-271
CO-200

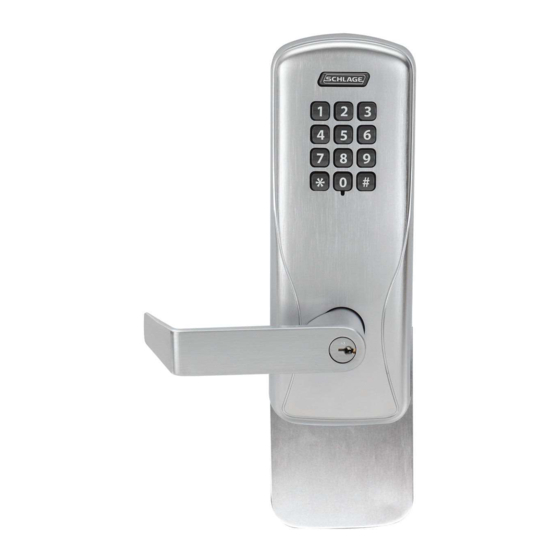

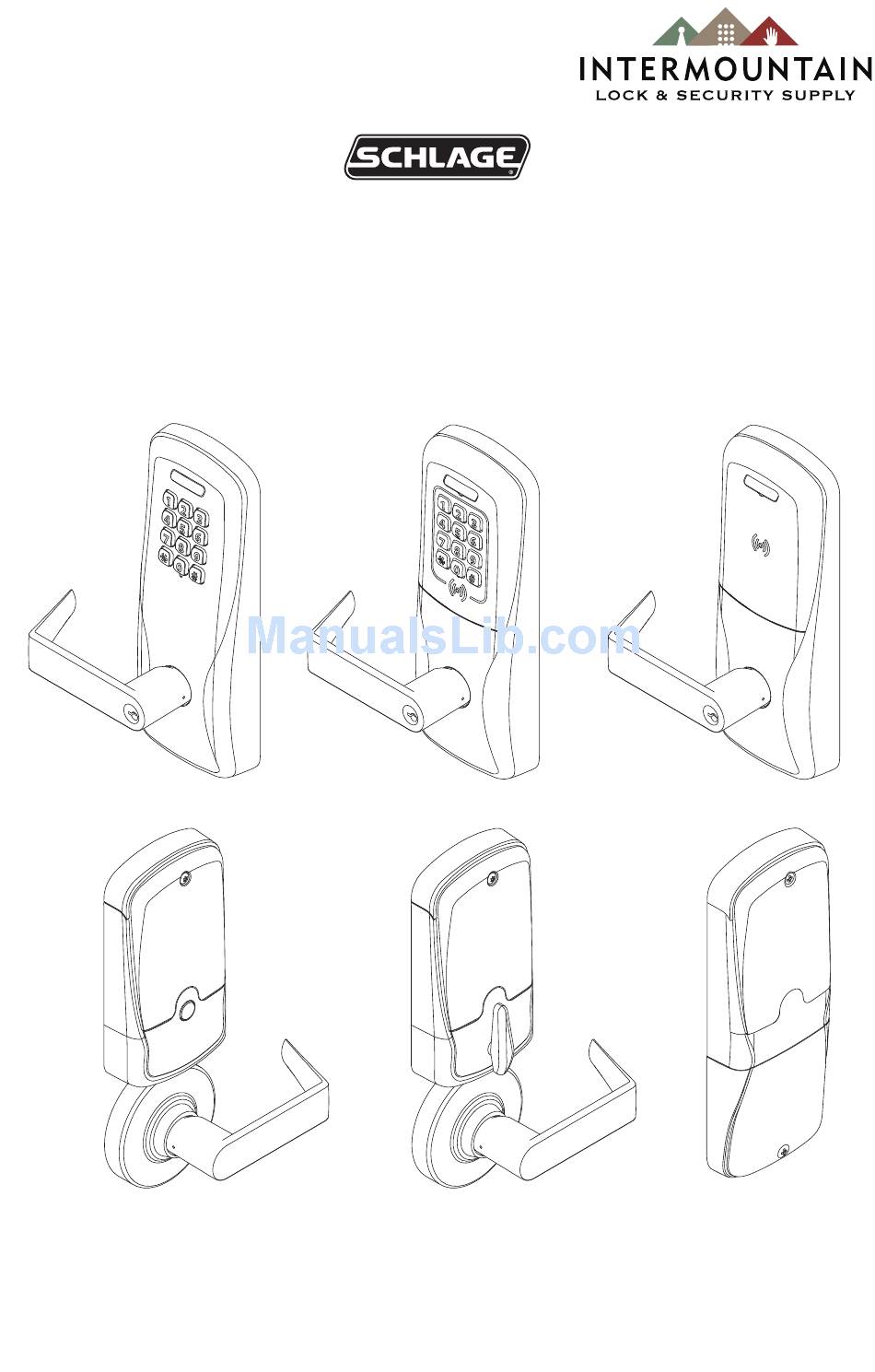

OFFLINE LOCK USER GUIDE
INSTRUCTIONS FOR CORE SERIES OFFLINE LOCKS
Para el idioma español, navegue hacia www.schlage.com/support.
Pour la portion française, veuillez consulter le site www.schlage.com/support.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CO-200 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Schlage CO-200

Summary of Contents for Schlage CO-200

  • Page 1 P516-271 CO-200 OFFLINE LOCK USER GUIDE INSTRUCTIONS FOR CORE SERIES OFFLINE LOCKS Para el idioma español, navegue hacia www.schlage.com/support. Pour la portion française, veuillez consulter le site www.schlage.com/support.

  • Page 2: Table Of Contents

    CO-200 Offl ine Lock User Guide CONTENTS Overview ............................3 Getting Started ..........................4 Handheld Device (HHD) ........................ 4 Construction Access Mode ......................5 Create the Master Construction Credential - Locks with Card Readers ........5 Add User Credentials - Locks with Card Readers ..............5 Cancel Construction Access Mode ...................

  • Page 3: Overview

    CO-200 Offl ine Lock User Guide OVERVIEW The Schlage CO-200 is an off-line electronic lock in the CO-Series product line. • The lock is confi gured to operate as Classroom/Storeroom function. Optional Offi ce or Privacy functions are available. • The lock is powered by four (4) AA batteries. See Batteries on page 11 for more information.

  • Page 4: Getting Started

    5. When ready to set up for normal use, remove factory default security settings, then program the user credentials. See Manual Lock Programming on page 6 for more information. 6. Consult the Schlage Utility Software (SUS) User Guide for information about confi guring the lock. 7. Familiarize yourself with the information in this guide.

  • Page 5: Construction Access Mode

    PIN of 13579 and “ # ”, which can be used for installation, testing and construction access. To test, enter 13579 and “# ”. The Schlage button will blink and the lock will unlock. The default PIN is automatically deleted when a new programming credential is created, or the lock is programmed with the Schlage Utility Software (SUS).

  • Page 6: Manual Lock Programming

    CO-200 Offl ine Lock User Guide MANUAL LOCK PROGRAMMING Left LED Right LED TIPS The Schlage button has two different LEDs, one on the left and one on the right. All locks have a default programming code of 97531 and “...

  • Page 7: Manual Programming Commands

    Commands are confi rmed by fi ve alternating green blinks of the Schlage button. The right LED on the Schlage button will blink green to indicate an incorrect entry. To interpret blink patterns, refer to Error Codes on page 9.
  • Page 8 CO-200 Offl ine Lock User Guide Wait For Function Press/Present Confi rmation Programming Card [Programming Code] Wait for Add Freeze +PIN to stop flashing Credential New [PIN] between each New Card step. add another credential to finish Programming Card [Programming Code]...

  • Page 9: Using The Lock

    (6). This can be confi gured with the HHD, so users do not have to push the “#” key. ERROR CODES All error codes are indicated on the Schlage button by a solid red LED and a blinking green LED. The number of green blinks indicates the error code.

  • Page 10: Testing

    The door must be locked (not toggled open or in the middle of normal access) before resetting to factory defaults. 1. Press and hold the Schlage button. Wait for the lock to beep twice and two green blinks of the Schlage button, indicating confi rmation.

  • Page 11: Batteries

    Valid credentials do not grant access Mechanical override key must be used to unlock lock. Battery Failure Modes The battery failure mode is set using the Handheld Device. See the Schlage Utility Software (SUS) User Guide for more information. Mode Description Fail As-Is (default) Lock remains in current state until batteries are replaced.

  • Page 12: Led Reference

    CO-200 Offl ine Lock User Guide LED REFERENCE Most LED indicators are confi gured with the HHD. See Schlage Utility Software (SUS) User Guide for more information. Schlage Button Condition Lights Access denied 2 red blinks Access denied, user outside time zone...

  • Page 13: Fcc Statements

    CO-200 Offl ine Lock User Guide FCC STATEMENTS Ingersoll Rand Agency Statements Compliance Statement (Part 15.19) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2.
  • Page 14 CO-200 Offl ine Lock User Guide...
  • Page 15 CO-200 Offl ine Lock User Guide...
  • Page 16 © 2010 Ingersoll-Rand Company P516-271 ENG online Rev. 08/10-b...
