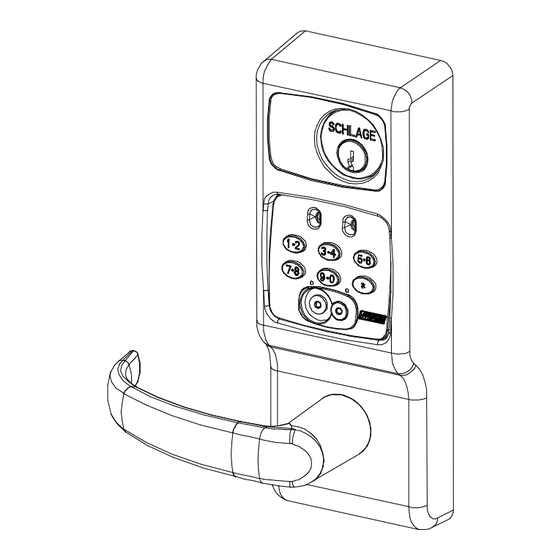

The 5500 series lock is a stand-alone, microprocessor controlled, electromechani-
cal locking system. The 5500 employs a heavy-duty mechanical design with fewer
moving parts that a standard mechanical mortise lockset, for ease of installation
and high reliability. It is powered by four, standard AA batteries, providing up to
80,000 activations.
Operationally, the outside lever is normally locked and the inside lever always
retracts the bolt to allow egress. Electronic access control is achieved by entering
an"Access Credential" (magnetic stripe card, code of iButton Key, or HID Prox fob
or card). Electronic access control capabilities are listed below by model. All mod-
els are designed to accommodate an emergency mechanical key override.
Standard features of the CM models include up to 1000 user memory, real time
features including time zones and holidays, and audit trail of up to 1000 events.
Optional ATK (audit trail - key override) will note any use of the mechanical key on
the audit trail report. Manual and computer programming is supported by all mod-
els. The PRO models are manually programmed to accept up to 100 codes.
Functions:
5590: Office Function (3/4" latch) - has "Lock" and "Unlock" buttons on inside
escutcheon. Function not available on PRO
5596: Storeroom/Classroom Function (3/4" latch) - can be unlocked by "toggle"
credential and relocked again by same. See programming guide for more informa-
tion (form 57000).
5598: Classroom Function with inside iButton reader - can be toggled unlocked by
iButton plus pin (code). Can be relocked immediately from inside iButton reader in
an emergency.
5591: Office Function (1" Autobolt) - has "Lock" and "Unlock" buttons on inside
escutcheon. Function not available on PRO
5594: Storeroom/Classroom Function (1" Autobolt) - can be unlocked by "toggle"
credential and relocked again by same. See programming guide for more informa-
tion (form 57000). Function not available on PRO
5593: Dormitory/Privacy Function (1" Autobolt) - Pushing either button on the
inside escutcheon places lock in the "Privacy" mode: a "Lockout" credential or
mechanical key is required to enter. Condition is cleared when the bolt is retracted
from the inside. Function not available on PRO
Models:
KPI:
iButton reader and keypad
IBO:
iButton reader only
MGK: Magnetic stripe card reader, iButton reader and keypad
MGI:
Magnetic stripe card reader and iButton reader
PXK:
Prox card reader, iButton reader, and keypad
PXI:
Prox card reader and iButton reader
PRO:
Keypad only - Manual programming only, 100 code memory
Options:
ATK:
Audit trail of mechanical
key use (not available on PRO)
HSS:
High security screws on
inside escutcheon
T3:
Track 3 card reader
(data must be ABA track 2 for-
mat) - MGI/MGK only
KD:
Keyed Different, includes
Schlage Everest cylinder
LC:
Less Cylinder
Form 55005 Rev. B
CM5500 COMPUTER MANAGED MORTISE LOCK
5500 MORTISE LOCK
STANDARD
5500 MORTISE LOCK
AUTOBOLT
INSTALLATION MANUAL
CM5500-KPI
CM5500-IBO
CM5500-MGK
CM5500-MGI
CM5500-PXK
CM5500-PXI
CM5598
PRO5500
SAFE SCHOOL LOCK
WITH iBUTTON
READER ON INSIDE
09-25-2001
Advertisement
Related Manuals for Schlage CM5500-IBO
Summary of Contents for Schlage CM5500-IBO
- Page 1 High security screws on inside escutcheon SAFE SCHOOL LOCK WITH iBUTTON Track 3 card reader READER ON INSIDE (data must be ABA track 2 for- mat) - MGI/MGK only Keyed Different, includes Schlage Everest cylinder Less Cylinder Form 55005 Rev. B 09-25-2001...
-
Page 2: Before You Begin
CM5500 COMPUTER MANAGED MORTISE LOCK INSTALLATION MANUAL BEFORE YOU BEGIN: Standard units are shipped from the factory to fit 1-3/4” doors. Verify the door thickness. If the door is not 1-3/4” thick, verify that the door thickness option was ordered or consult factory. 1. - Page 3 E. Line up nearest notch on nut with tab on lock washer and bend tab into notch using nut tool so nut is secure. F. Install exterior gasket (if used). G. Install upper and lower standoffs. CYLINDER RECOMMENDED CAM: LOCK WASHER SCHLAGE P/N B502-948 NUT TOOL STANDOFFS UPPER EXTERIOR GASKET STANDOFFS LOWER Form 55005 Rev.
- Page 4 CM5500 COMPUTER MANAGED MORTISE LOCK INSTALLATION MANUAL 3. CHANGE HAND (IF NECESSARY): CHANGE PIN NOTE: The locks are shipped as ordered from factory. If it is necessary to change the hand of the lock, follow the steps below: TO CHANGE HAND OF LOCK CASE: A.
- Page 5 CM5500 COMPUTER MANAGED MORTISE LOCK INSTALLATION MANUAL 4. INSTALL STRIKE BOX AND STRIKE: IMPORTANT! Strike included with lock MUST be used for proper operation of mortise lockset. 5. INSTALL LOCK CASE: Install lock case into edge of door. If the lock has the Privacy option, feed the wire harness though the 3/4” hole as shown below.
- Page 6 CM5500 COMPUTER MANAGED MORTISE LOCK INSTALLATION MANUAL 6. INSTALL OUTSIDE SPINDLE, OUTSIDE ESCUTCHEON AND BASE PLATE ASSEMBLY: Install base plate assembly onto inside of door. Use socket cap screws with washers on top standoffs and phillips head screws on retractor assembly (bottom). Note that the cam on the outside escutcheon must be positioned with the dot at the 6 O’Clock position and inside spindle must be inserted as shown in details.
- Page 7 CM5500 COMPUTER MANAGED MORTISE LOCK INSTALLATION MANUAL 7. INSTALL INSIDE SPINDLE, BATTERIES, AND INSIDE ESCUTCHEON: NOTE: The lock is shipped with four AA alkaline batteries. Always use new, high quality alkaline batteries. A. Plug wiring harness into PC board. B. Tuck wiring harness under retaining clip as shown in detail A, below. Not all wires shown will be present on all models. C.
-
Page 8: Operational Test
CM5500 COMPUTER MANAGED MORTISE LOCK INSTALLATION MANUAL OPERATIONAL TEST: TROUBLE SHOOTING: 1. Push down and up on inside lever: latch should PROBLEM: POSSIBLE CAUSE: retract. Inside lever doesn’t Inside spindle not installed retract latch: 2. Push down and up on outside lever. Lever should be disengaged from retractor and door should not No response from key- Wiring harness not plugged...
