Schlage CO100 User Manual
Co-series
Hide thumbs
Also See for CO100:
- User manual (12 pages) ,
- Installation instructions manual (9 pages) ,
- Installation instructions manual (9 pages)
Related Manuals for Schlage CO100
Summary of Contents for Schlage CO100

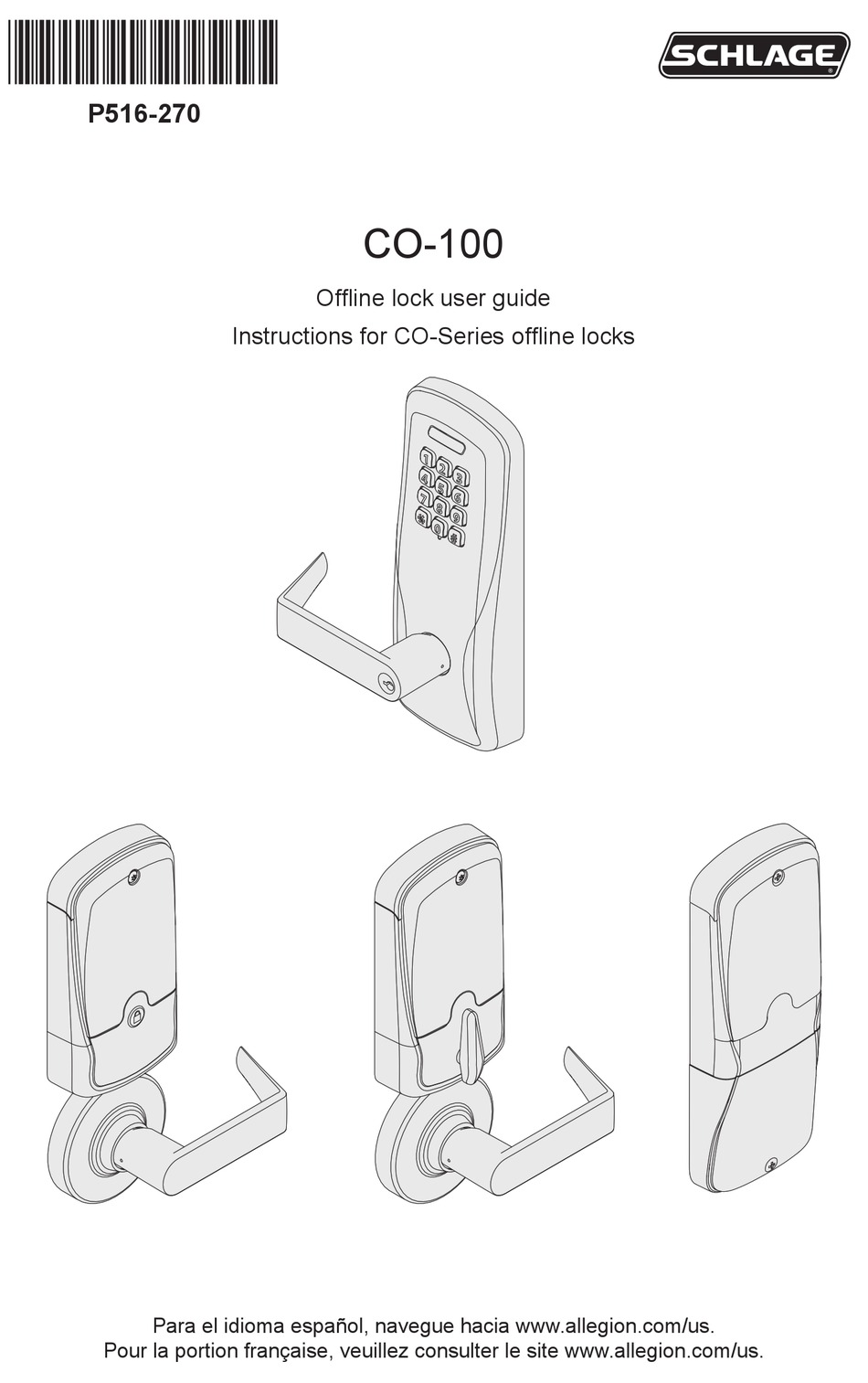

- Page 1 *P516-270* P516-270 CO-100 Offline lock user guide Instructions for CO-Series offline locks Para el idioma español, navegue hacia www.allegion.com/us. Pour la portion française, veuillez consulter le site www.allegion.com/us.
-
Page 2: Table Of Contents
UL Listed product, in accordance with the requirements of the Standards UL 294 and ULC S319. This product has been evaluated for ULC-S319 Class I. 2 • Schlage • CO-100 user guide... -
Page 3: Overview

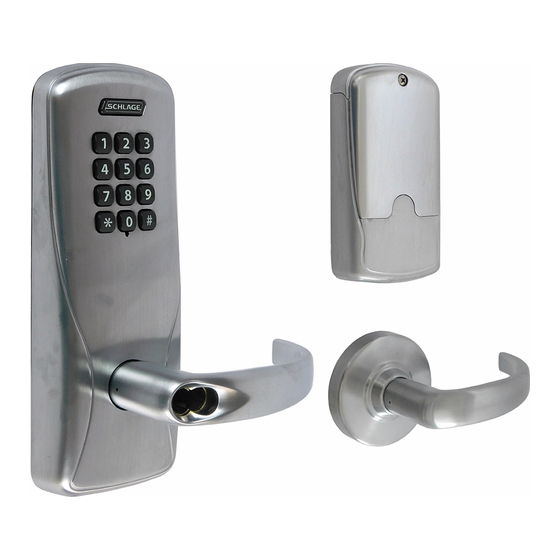

Overview The Schlage CO-100 is a keypad-only off-line electronic lock in the CO-Series product line. • This product is listed for UL 294 and ULC S319. • Two factory-configured functions are available: 1) Classroom/Storeroom, and 2) Office. • The lock is powered by four (4) AA batteries. See Batteries on page 10 for more information. -
Page 4: Lock Functions
• To test, enter the default PIN (13579 and “ # ”). put the lock back into construction • The Schlage button will blink and the lock will access mode, reset the lock to unlock. factory settings. See Reset to •... -
Page 5: Credential Types And Functions
Manual programming instructions Important notes: Wait for the Schlage button LEDs to stop flashing before continuing to the next step. Programming mode will time out if no entry is made in 20-25 seconds. Time out is indicated by three left and nine right red blinks of the Schlage button. -
Page 6: Normal Use Credentials
For another Wait for Create a Programming 3-6 digit PIN, go back confirmation: Freeze PIN and PIN and to step 3 2 right green blinks. press Wait for again to right green finish light. 6 • Schlage • CO-100 user guide... -
Page 7: Pass Through Credentials
2 right green 10 second delay blinks. Disable/ Enter Enter Enter Press Enter enable Programming again to to disable beeper PIN and finish beeper Wait for confirmation: 2 right green to enable beeper blinks. 7 • Schlage • CO-100 user guide... -
Page 8: Error Codes
Error codes All error codes are indicated on the Schlage button by a solid red left LED, and a blinking green right LED. The number of green blinks indicates the error code. Number of Error code description green blinks Green Computer programming error (not complete). -
Page 9: Lock Status Reports
Follow the steps below to obtain lock status reports: Lock status reporting is available with firmware version 2.5.0 or higher. The left and right Schlage button LEDs will blink red once with each button press, followed by the status indicator as described below. -
Page 10: Reset To Factory Defaults
3. Press and hold the Schlage button while reconnecting the battery into the battery pack to resupply power. 4. Continue holding the Schlage button, and wait for two beeps to sound and two green blinks of the Schlage button. 5. Release the Schlage button. -
Page 11: Low Battery Indications
Press IPB to lock 1 red blink Press IPB to unlock 1 green blink 1 Unlocking the lock with the IPB will cause the lock to remain unlocked until the IPB is depressed again. 11 • Schlage • CO-100 user guide... -
Page 12: Troubleshooting
Troubleshooting Problem Possible cause Solution The lock does The beeper may be Use manual programming to enable the beeper not function turned off. (see Disable/enable beeper on page 7). when a valid The battery or wired Check that the battery or wired power is PIN credential is power may be connected correctly.
