Chapter 1 Introduction - AXIOMTEK PICO822 User Manual

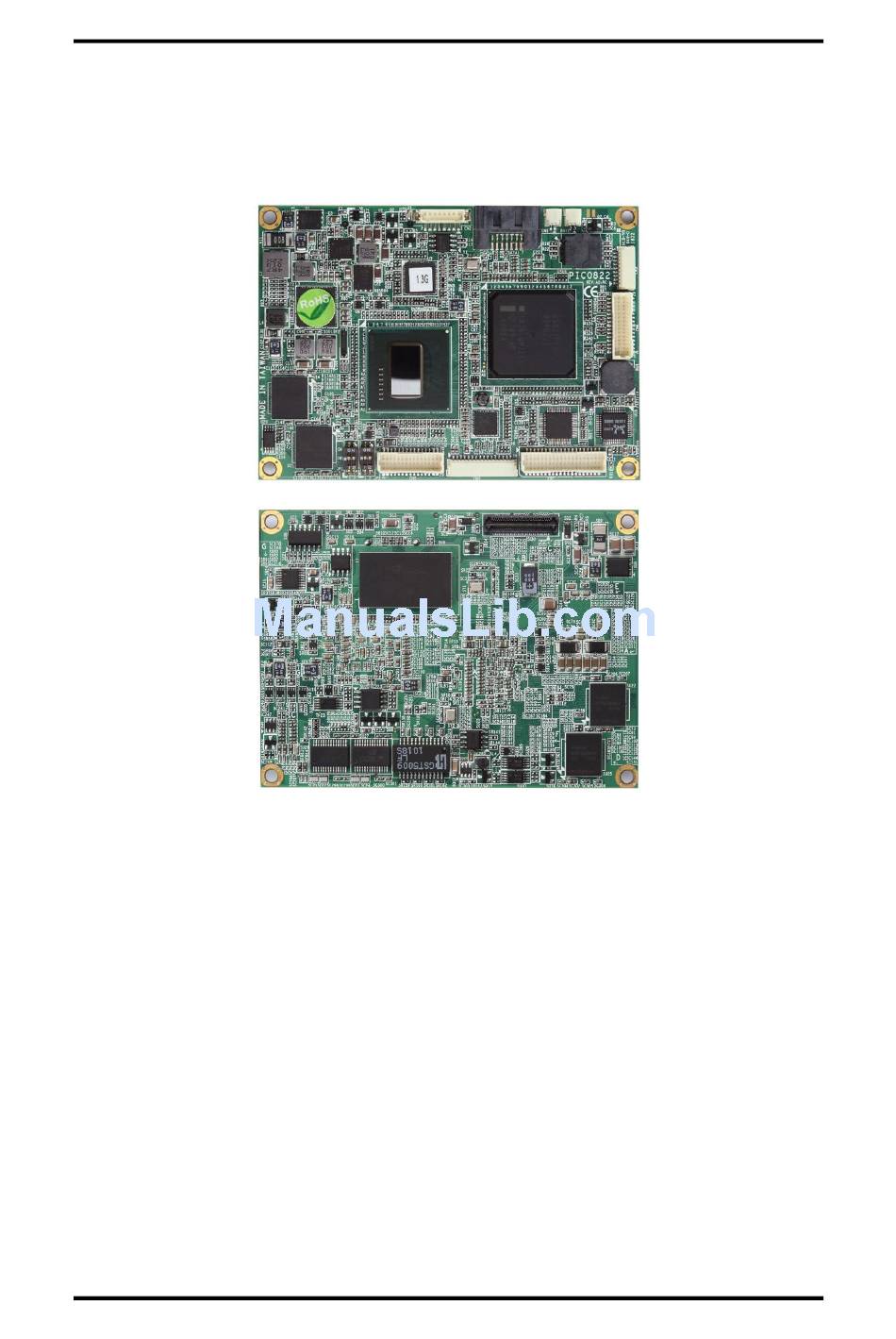

The PICO822 is a Pico-ITX board with Intel
EG20T chipset that delivers outstanding system performance through high-bandwidth
interfaces, multiple I/O functions for interactive applications and various embedded computing
solutions.
The PICO822 is designed with onboard unbuffered 1GB DDR2 800MHz memory, It also
features one Gigabit/Fast Ethernet, one serial ATA port with transfer rates up to 3Gb/s, four
USB 2.0 high speed compliant and built-in high definition audio codec that can achieve the
best stability and reliability for industrial applications. Additionally, it provides you with unique
embedded features, such as two serial ports and Pico-ITX form factor that applies an
extensive array of PC peripherals. The board can be enhanced by its built-in watchdog timer
function, a special industrial feature not commonly seen on other motherboards.
Moreover, the high-speed board to board connector on the rear side has the ability to extend
I/O module in a flexible manner.
Introduction
®
PICO822 Intel Atom
®
TM
E620T/E680T All-In-One Pico-ITX Board
Chapter 1
Introduction
TM
Atom single core E620T/E680T and PCH
1
