2.5.9

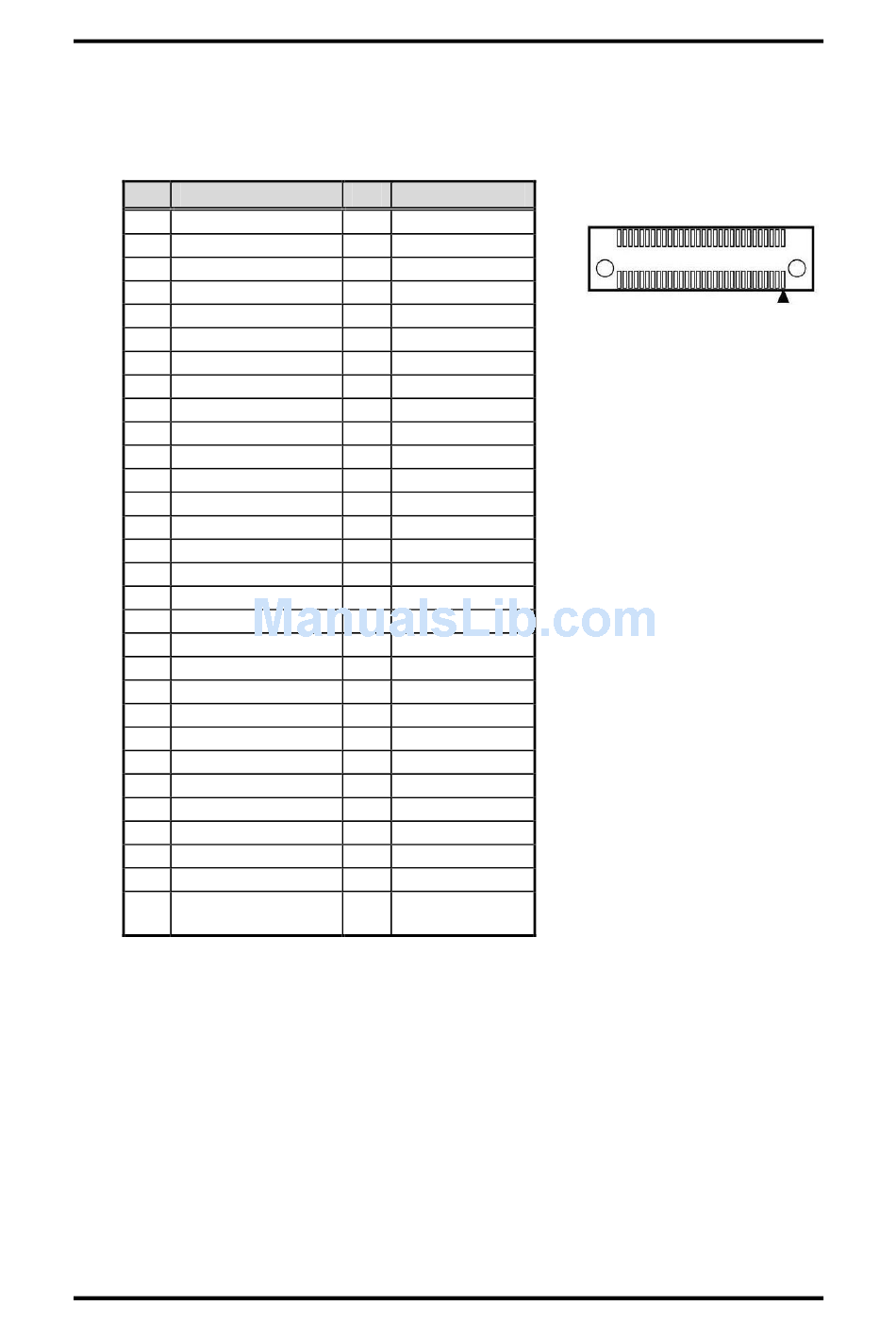

Expansion Connector (SCN1)

The board is equipped with an expansion connector (SCN1) on the bottom side. This
SCN1 is for connecting PICO822 to expansion module such as AX93268 (see Appendix
A for the details of AX93268).
Pin
Signal
1
+12V
3
+12V
5
+12V
7
+12V
9
+12V
11
+12V
13
UART_RX
15
GND
17
SMBus_CLK
19
GND
21
PEG_RX+
23
PEG_RX-
25
GND
27
SDVO_INT+
29
SDVO_INT-
31
GND
33
SDVO_STALL+
35
SDVO_STALL-
37
GND
39
SDVO_CTRL_DATA
41
SDVO_CTRL_CLK
43
GND
45
Reset
47
GPIO
49
USB_PWR
51
USB_DN0
53
USB_DP0
55
GND
57
HD_SPDIF
59
PEG_WAKE
Board and Pin Assignments
®
PICO822 Intel
Atom
Pin
Signal
2
GND
4
GND
6
GND
8
GND
10
GND
12
GND
14
UART_TX
16
GND
18
SMBus_DATA
20
GND
22
PEG_TX+
24
PEG_TX-
26
GND
28
PEG_CLK+
30
PEG_CLK-
32
GND
34
SDVO_RED+
36
SDVO_RED-
38
GND
40
SDVO_GREEN+
42
SDVO_GREEN-
44
GND
46
SDVO_BLUE+
48
SDVO_BLUE-
50
GND
52
SDVO_CLK+
54
SDVO_CLK-
56
GND
58
GPIO
SLP_PLB
60
(Default)
TM
E620T/E680T All-In-One Pico-ITX Board
60
59
2
1
19
