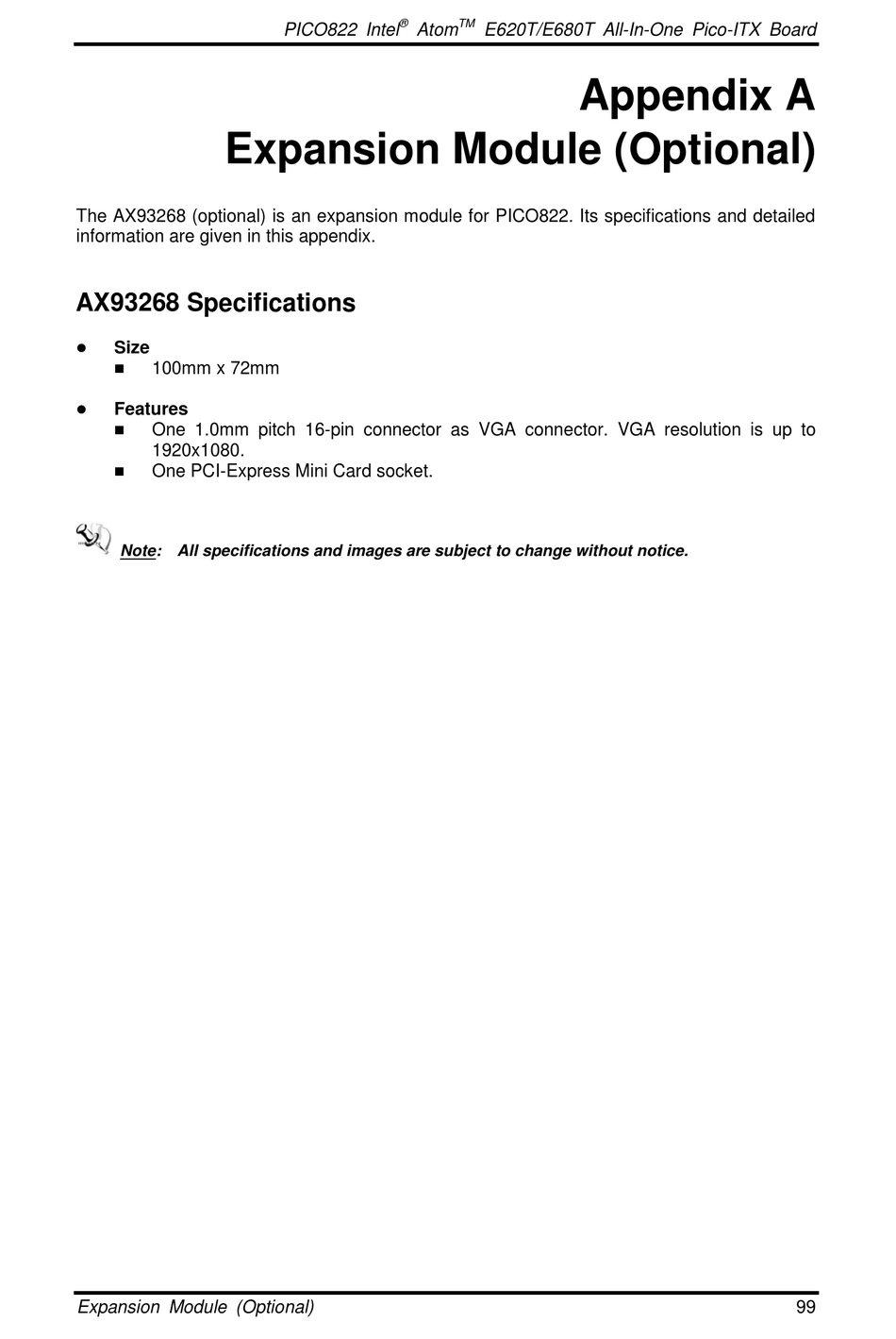

Expansion Module (Optional)
The AX93268 (optional) is an expansion module for PICO822. Its specifications and detailed
information are given in this appendix.

AX93268 Specifications

 Size
 100mm x 72mm

Features
 One 1.0mm pitch 16-pin connector as VGA connector. VGA resolution is up to
1920x1080.
 One PCI-Express Mini Card socket.
Note: All specifications and images are subject to change without notice.
