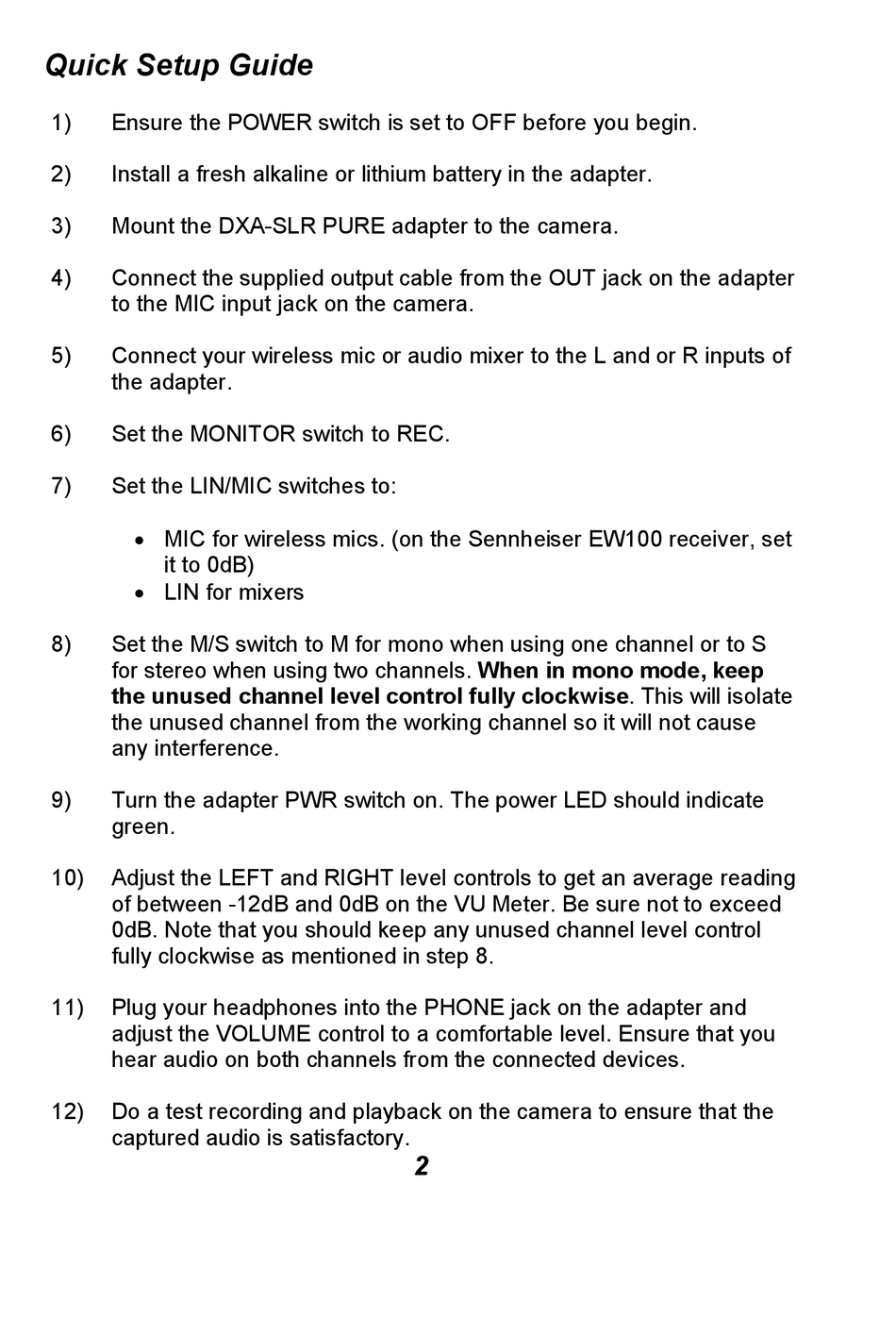

Quick Setup Guide

1) Ensure the POWER switch is set to OFF before you begin.
2) Install a fresh alkaline or lithium battery in the adapter.
3) Mount the DXA-SLR PURE adapter to the camera.
4) Connect the supplied output cable from the OUT jack on the adapter
to the MIC input jack on the camera.
5) Connect your wireless mic or audio mixer to the L and or R inputs of
the adapter.
6) Set the MONITOR switch to REC.
7) Set the LIN/MIC switches to:
 MIC for wireless mics. (on the Sennheiser EW100 receiver, set
it to 0dB)
 LIN for mixers
8) Set the M/S switch to M for mono when using one channel or to S
for stereo when using two channels. When in mono mode, keep
the unused channel level control fully clockwise. This will isolate
the unused channel from the working channel so it will not cause
any interference.
9) Turn the adapter PWR switch on. The power LED should indicate
green.
10) Adjust the LEFT and RIGHT level controls to get an average reading
of between -12dB and 0dB on the VU Meter. Be sure not to exceed
0dB. Note that you should keep any unused channel level control
fully clockwise as mentioned in step 8.
11) Plug your headphones into the PHONE jack on the adapter and
adjust the VOLUME control to a comfortable level. Ensure that you
hear audio on both channels from the connected devices.
12) Do a test recording and playback on the camera to ensure that the
captured audio is satisfactory.
