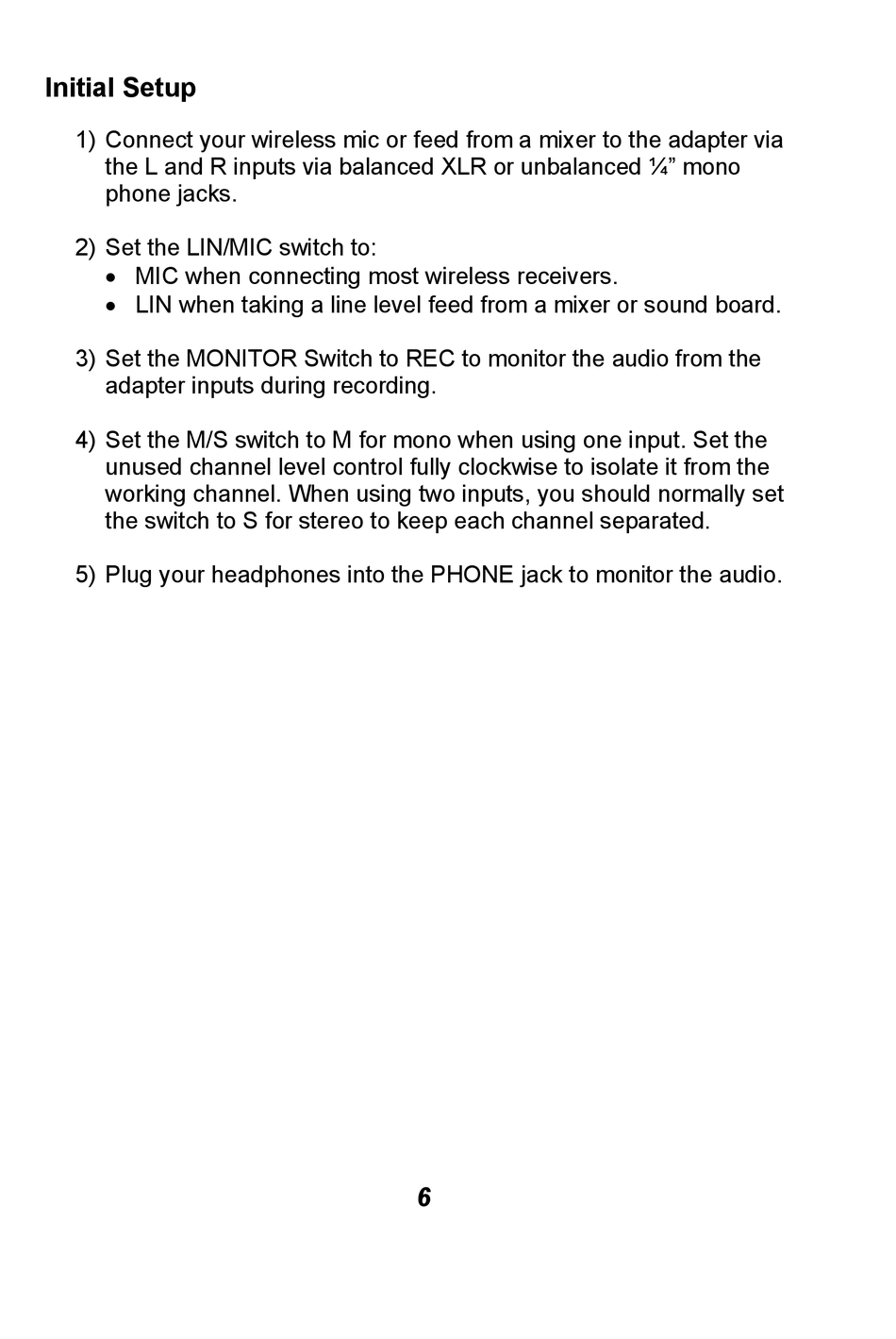

Initial Setup

1) Connect your wireless mic or feed from a mixer to the adapter via
the L and R inputs via balanced XLR or unbalanced ¼" mono
phone jacks.
2) Set the LIN/MIC switch to:
 MIC when connecting most wireless receivers.
 LIN when taking a line level feed from a mixer or sound board.
3) Set the MONITOR Switch to REC to monitor the audio from the
adapter inputs during recording.
4) Set the M/S switch to M for mono when using one input. Set the
unused channel level control fully clockwise to isolate it from the
working channel. When using two inputs, you should normally set
the switch to S for stereo to keep each channel separated.
5) Plug your headphones into the PHONE jack to monitor the audio.
