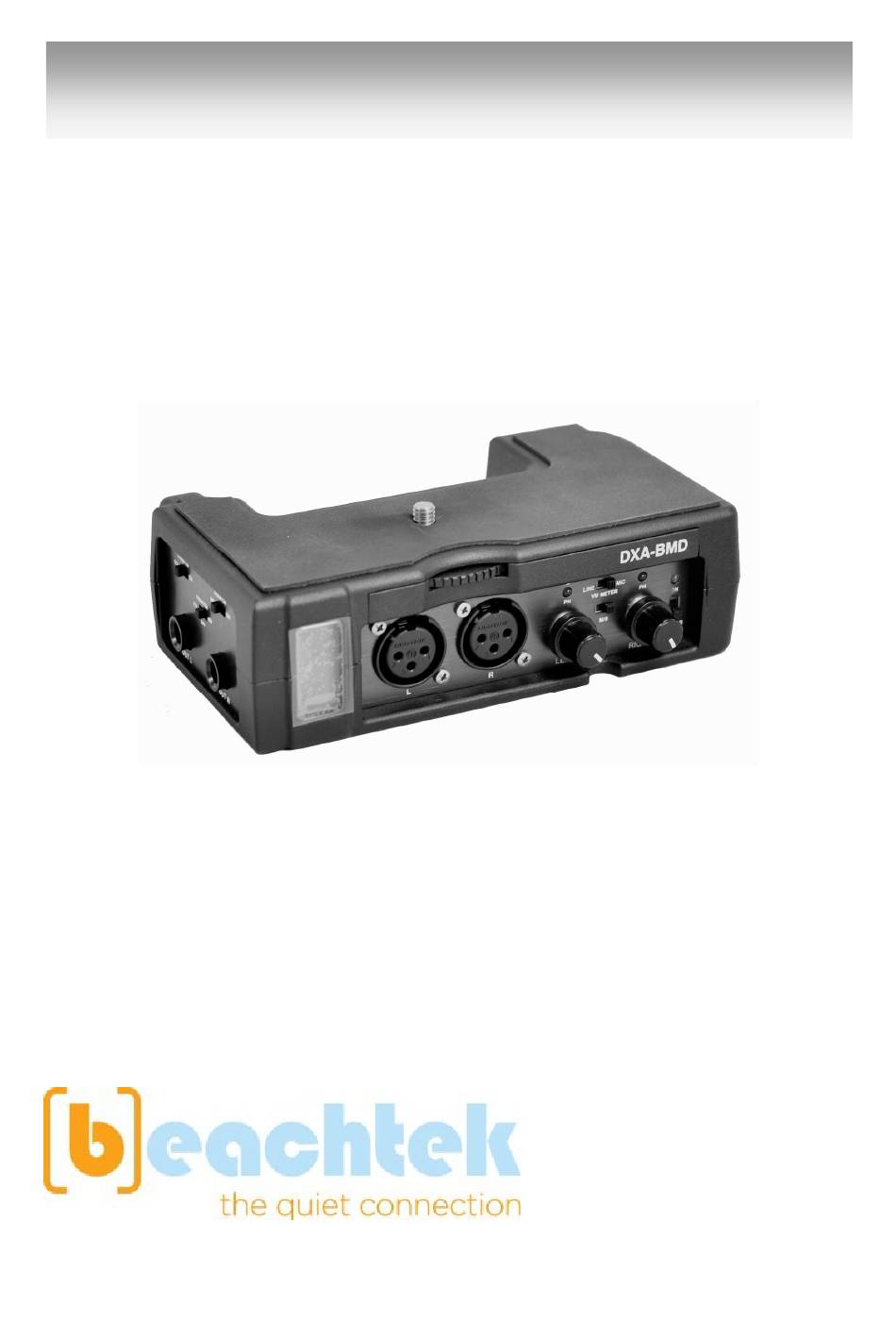

- Page 1 Operating Manual DXA-BMD Passive Audio Adapter for the BlackMagic Cinema Camera This operating manual explains the adapter function settings and how to use the adapter to record audio into the camera. ©Beachtek Inc. 2013...

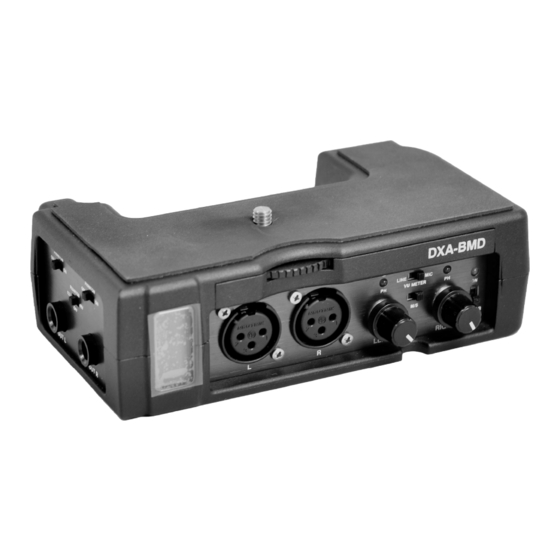

- Page 3 Please contact us if you have any problems or questions. Description The Beachtek DXA-BMD is a two-channel, passive audio adapter for connecting professional audio gear from boom mics, wireless mic and mixing boards to the Blackmagic Cinema Camera.
-
Page 4: Table Of Contents
Contents Before You Begin……………………………………………………….. 1 Supplied Accessories…………………………………………………... 1 Quick Setup Guide……………………………………………………… 2 Adapter Connectors and Controls…………………………………….. 4 Setup Guide……………………………………………………………... 6 Basic Operation…………………………………………………………. 8 Features…………………………………………………………………. 9 Specifications…………………………………………………………… Warranty Information…………………………………………………… 11... -
Page 5: Before You Begin
Before You Begin 1) These instructions refer to the use of this adapter with the Blackmagic Cinema Camera. 2) This adapter does not have a preamplifier to increase the signal levels from the inputs – the output level will only be as strong as the input level. -
Page 6: Quick Setup Guide
1) Ensure the POWER and PH Voltage switches are set to OFF. 2) Install a fresh alkaline or lithium battery in the adapter. 3) Mount the DXA-BMD adapter to the camera. 4) Connect the supplied output cables from: a. OUT 1 jack on the adapter to the AUDIO IN 1 jack on the camera b. - Page 7 10) Only turn on PHANTOM on either channel if you are using a phantom powered mic attached to that channel. 11) Set the PH VOLTAGE switch to either 12V or 48V if either channel requires phantom power. 12) Adjust the LEFT and RIGHT level controls to get an average reading of between -12dB and 0dB on the VU Meter.
-
Page 8: Adapter Connectors And Controls
Adapter Connectors and Controls Front Panel PWR Switch Main power switch for adapter PWR LED Green indicates power on and good battery condition Red indicates low battery voltage MODE Switch Selects M for mono or S for stereo output mode VU METER Selects VU meter calibration for either LINE when camera is set to LINE input or MIC when camera is set to MIC input. - Page 9 Front Panel Side Panel...
-
Page 10: Setup Guide
Setup Guide Battery Installation 1) The DXA-BMD operates on one 9 volt battery. We recommend that you use either an alkaline or lithium type battery for the longest operating time. 2) To install the battery unlatch the drawer by pushing in and over on the drawer front, releasing and sliding the drawer out. - Page 11 Initial Setup 1) Be sure that the PH Voltage is set to OFF 2) Set the PHANTOM switch for each channel to OFF as well 3) Set the camera audio menu as follows: Microphone Input: 0% CH 1 and CH 2 Input Levels Mic for microphones and wireless mics Line for mixers CH 1 Input: 30%...
-
Page 12: Basic Operation
Basic Operation After following the above Initial Setup, you should be ready to start recording. 1) Turn the adapter PWR switch ON. The power LED should light green indicating good battery voltage. Red indicates low battery warning. 2) Adjust the LEFT and RIGHT level controls to give you an average reading of between -12dB and 0dB on the VU Meter. -
Page 13: Features
Features Inputs Two balanced Neutrik XLR connectors Outputs Two balanced TRS ¼” jacks for connection to the camera VU Meter Easy to read level meters indicate proper signal level for each channel Level Controls Adjusts signal level output on each channel Phantom Power ... -
Page 14: Specifications
Specifications Input Levels MIC level: 0dB on the VU meter at -44dBu input LINE level: 0dB on the VU meter at +10dBu input Frequency Response 20Hz to 20kHz (+/- 0.5dB) Less than 0.01% @ 1 kHz, -30dBu input S/N Ratio 85 dB @ 1Khz, -30dBu input Gain Unity... -
Page 15: Warranty Information
Warranty Information Limited Two Year Warranty This warranty covers any defects or malfunction in your new Beachtek adapter for two years from date of purchase. Beachtek will replace or repair any defective or malfunctioning adapter, within the warranty period, at no charge. The warranty does not cover damage resulting from accident, alteration, misuse or abuse. - Page 16 Contact Information Address Beachtek Inc. 480 Osprey Avenue Kelowna, British Columbia Canada V1Y 5A5 Phone 778-478-9872 Email info@beachtek.com Website www.beachtek.com...
