BeachTek DXA-8 Operating Instructions

Specifications
Gain (dB) Adjustable from -10 dB to +15
Frequency response 20 Hz to 20 KHz, +/-3 dB
(limiter on)
Output noise level less than -80 dBu
Input level before clipping +1.5 dBu
-27 dBu
Maximum output level -30 dBu
-36 dBu
Phantom power Dual regulated 48 volt power
Current to 14 mA
Battery type / duration (1) 9 volt alkaline battery
10 hours typical
LED battery indicator
Current draw 35 mA typical
Case Powder coated aluminum
Dimensions 5.25" L x 3.5" W x 1.25" H
Weight 16 oz
Full One Year Warranty
This warranty covers any defects or malfunction in your new BeachTek adapter
for one full year.
BeachTek will replace any defective or malfunctioning adapter, within the
warranty period, with a new unit at no charge. The warranty does not cover
damage resulting from accident, alteration, misuse or abuse. The device must
be sent to our service center at your expense.
Should you require service please contact us first before returning the unit to
us. Return instructions can be found on our website at www.beachtek.com/
questions.html
BeachTek Inc.
2120 Queen Street East, Suite 202
Toronto, Ontario M4E 1E2
tel (416) 690-9457 • fax (416) 690-0866
email adapter@beachtek.com
web www.beachtek.com
(min gain with limiter on)
(max gain with limiter on)
(limiter off)
(limiter on)
(direct short)
(no phantom)
(no phantom)
DXA-8

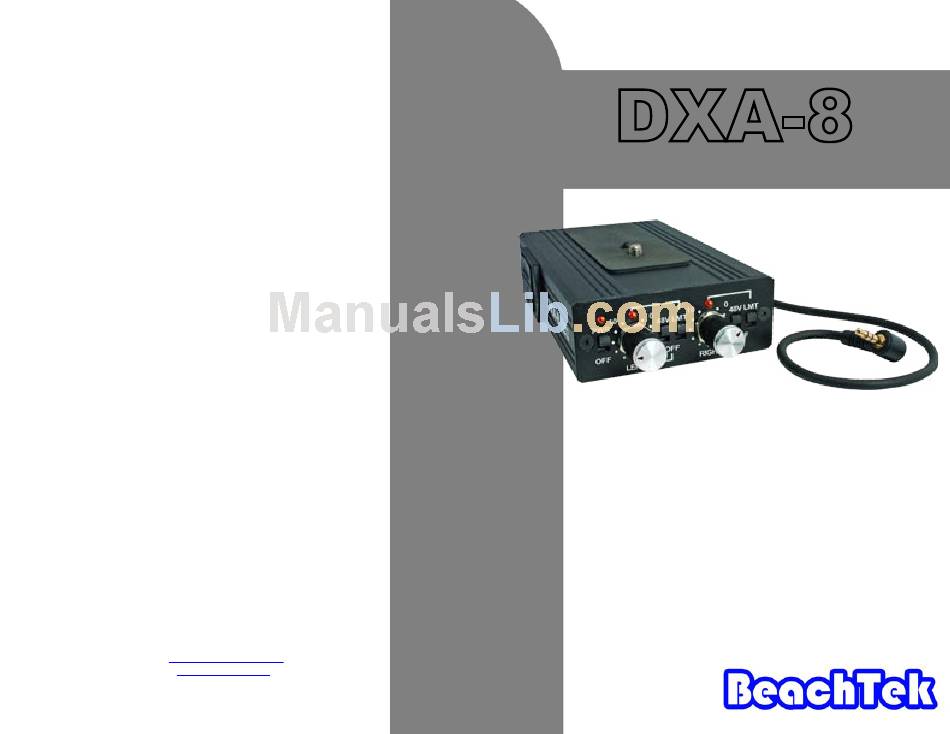

Operating Instructions for the DXA-8 Ultimate Adapter
The BeachTek DXA-8 is a two channel, battery-powered microphone
adapter with built in preamplifiers, limiters and dual phantom power.
This adapter is designed to easily attach balanced or unbalanced
type microphones to a consumer or prosumer camcorder. The DXA-
8 gives you flexibility and control over the audio signal to ensure the
best possible audio recording.
The DXA-8 is very easy to set up and use and requires a minimal
amount of fuss. Its rugged construction ensures years of use and
its compact size fits neatly under any camcorder. Along with its high
quality audio, the DXA-8 is truly the "Ultimate Adapter".
• Before using this high quality device, please read this
operating manual thoroughly to obtain the highest performance.
• Please contact us if you have any problems or questions.
