BeachTek DXA-5D Operating Instructions

Specifications

Input Level MIC setting:
LINE setting:
Output Level Nominal MIC levels
Frequency Response 20 Hz to 20 kHz (+/- 3dB)
Phantom Power Dual regulated 48 volt power supplies
Current to 14 mA (direct short)
Level Meter Calibrated from -54 dBu to -33 dB
Battery Type One 9 volt alkaline battery
Battery Duration 3 hours typical with both phantom
switches enabled
No power required to pass signal
Dimensions 6" x 3" x 1.7" (L x W x H)
(152 mm x 75 mm x 43 mm)
Weight 16 oz (0.45 kg)
Limited Two Year Warranty
This warranty covers any defects or malfunction in your new BeachTek adapter
for two years from date of purchase.
BeachTek will replace or repair any defective or malfunctioning adapter, within
the warranty period, at no charge. The warranty does not cover damage
resulting from accident, alteration, misuse or abuse. The device must be sent to
our service center at your expense.
Should you require service please contact us first before returning the unit to
us. Return instructions can be found on our website at www.beachtek.com
under the Support option.
Upon receiving the returned adapter it will be inspected and replaced or
repaired if found defective. The unit will be shipped back to you within five
business days at our expense.
BeachTek Inc.
1855 Kirschner Rd. Suite 230
Kelowna, British Columbia
Canada V1Y 4N7
tel (416) 690-9457
email info@beachtek.com
web www.beachtek.com
©2009 BeachTek Inc.
-36 dBu ideal
-10 to +4 dBu ideal
DXA-5D
Operating Instructions for the DXA-5D Adapter

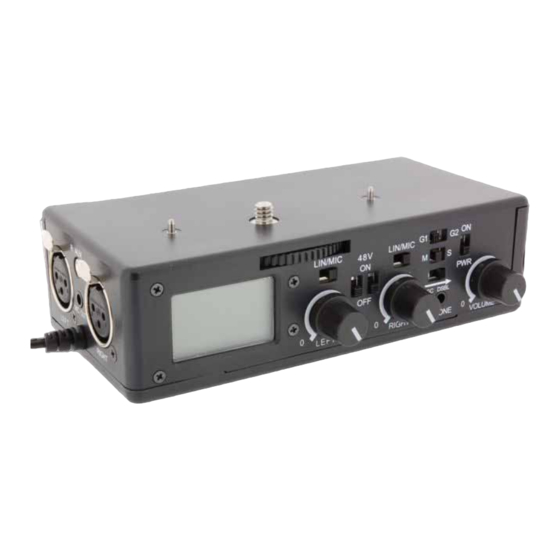

The BeachTek DXA-5D is a two-channel, transformer balanced XLR
adapter for attaching external microphones and other audio gear to
the Canon 5D Mark II camera. It can also be used with any cam-
corder or other audio recording device that has a built-in mic jack.
The DXA-5D is very easy to set up and use. It allows you to connect
a wide variety of audio devices including professional condenser
microphones that require 48 volt phantom power to operate. The
built-in level meters show the input signal strength at a glance while
the trim controls allow you to adjust the input level for optimum
recording. The headphone jack lets you monitor the audio that is
coming out of the adapter. The DXA-5D uses high quality balancing
transformers, which are completely noise free for superb audio.
The adapter mounts to the bottom of the camera and can also be
mounted to any standard tripod.
• Before using this high quality device, please read this
operating manual thoroughly to obtain the highest performance.
• Please contact us if you have any problems or questions.
