Ingenico 3300 User Manual

Compact secure counter-top pin pad
Hide thumbs
Table of Contents

Advertisement

Quick Links

I n g e n i c o
3300
1
Secure transaction and payment solutions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 3300 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ingenico 3300

Summary of Contents for Ingenico 3300

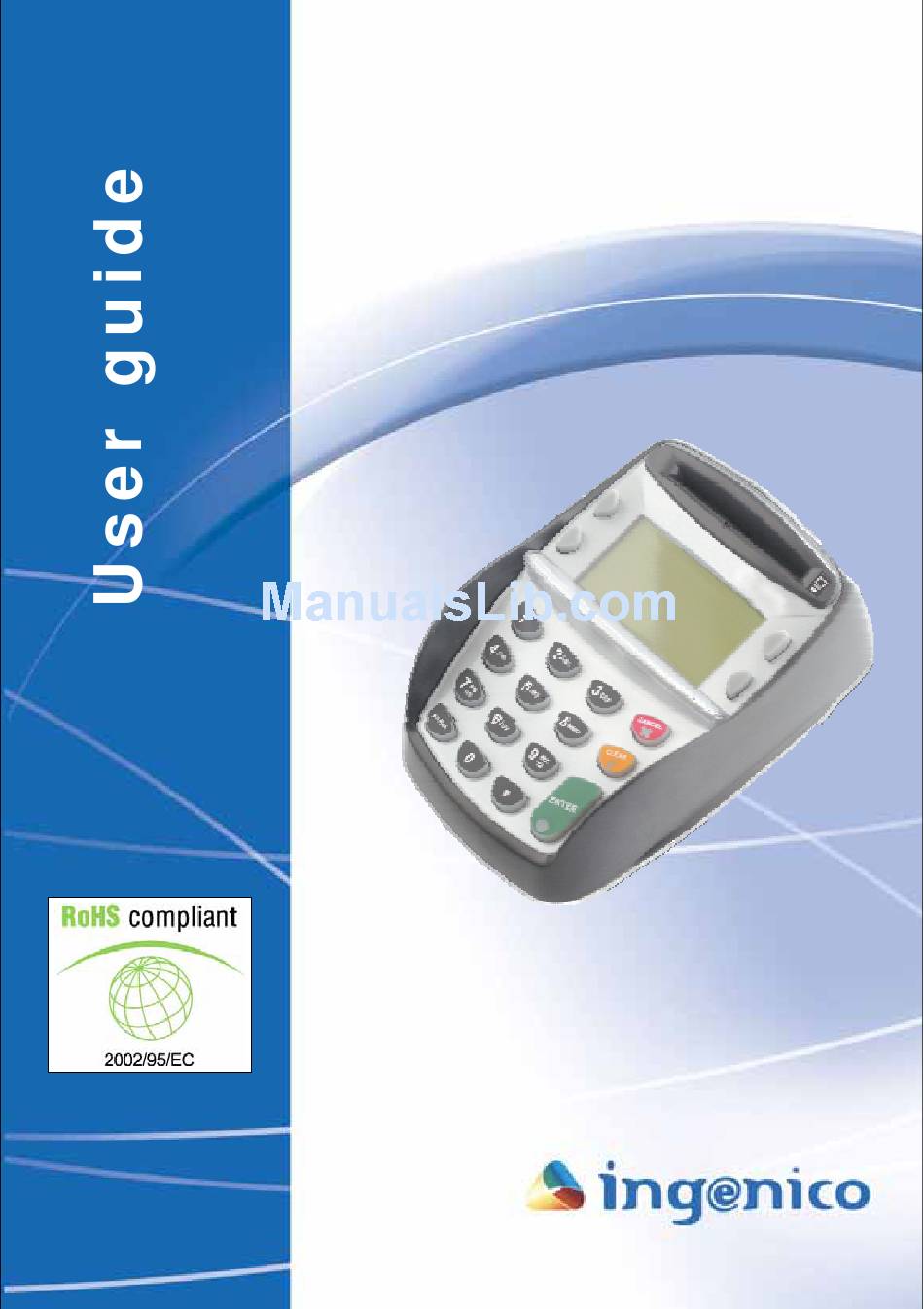

  • Page 1 I n g e n i c o 3300 Secure transaction and payment solutions...

  • Page 3: Table Of Contents

    Contents Presentation ....................5 Overview of Ingenico 3300 ..............6 Keyboard details and functionality ............7 Use........................9 Smart Card reading ................9 Terminal maintenance ................9 Installation and starting................11 Location of the terminal ............... 11 Terminal connections................11 Installing a SIM card ................
  • Page 4 Ingenico 3300...

  • Page 5: Presentation

    1 Presentation The Ingenico 3300 is a compact secure counter-top PIN pad, able to be handheld for PIN entry, designed to accept payment with a smart card reader. The terminal box contains: The PIN pad This manual The EC compliance fascicle...

  • Page 6: Overview Of Ingenico 3300

    Ingenico 3300 1.1 Overview of Ingenico 3300 Smartcard reader Bi-color LED 4 function keys Backlit graphic screen PIN shield 15-key backlit keyboard Led status Led OFF: This is the normal status of the led. Led ON in GREEN color: If the previous led status was OFF in this case it means that it is requested to insert a card in order to continue the transaction.

  • Page 7: Keyboard Details And Functionality

    1.2 Keyboard details and functionality This chapter describes the key functions for a terminal with no specific application. Some keys can have other functions according to the applications that are present in the terminal. The 4 programmable function keys will have different utilities according to the application installed in the terminal The red key cancels the...
  • Page 8 Ingenico 3300...

  • Page 9: Use

    In this chapter, we consider that the terminal has been connected. For the installation, refer to chapter 3 “Installation and starting”. 2.1 Smart Card reading The Ingenico 3300 is fitted with a smart card reader. The card will be always inserted with the chip facing the users i.e. chip towards the display & keyboard.
  • Page 10 Ingenico 3300...

  • Page 11: Installation And Starting

    3 Installation and starting 3.1 Location of the terminal The Ingenico 3300 is intended to be a counter top device. Ingenico advices you to place the terminal on a clear and flat surface, far from any very hot zones, protected from vibrations, dust, damp and electromagnetic radiation (computer screen, anti-theft barrier etc.).
  • Page 12 Ingenico 3300 Or it can be connected to a PC: Power requirements 6-18V dc. Maximum current 300mA RS232 Interface Logic levels (RS 232C levels) speed: 300 to 115200 bauds format: 7 or 8 bits parity: odd, even, none The communication connector is an eight way RJ 45 PLUG style connector.
  • Page 13 USB Interface...

  • Page 14: Installing A Sim Card

    Foolproof lug Foolproof lug Ingenico 3300 3.3 Installing a SIM card The SIM card connectors are located on the back side of the terminal. Installing a SIM card Remove the cover with a torx 6 screwdriver, Unlock the connector by sliding the metallic...

  • Page 15: Recommendations

    4 Recommendations 4.1 Safety In order to ensure that software integrity self-test is performed periodically, it is necessary to restart (disconnect-reconnect) the terminal at least once per day. As this terminal does not have a power off switch, the disconnecting device is the main transformer;...
  • Page 16 Ingenico 3300...
  • Page 18 Ingenico 3300...
  • Page 19 « Code de la propriété intellectuelle ». INGENICO keeps the right without notice to modify the characteristics and the functions of this device. INGENICO is not responsible for any use of this device, which would be non consistent with the present document.
  • Page 20 Your contact Ingenico 192 avenue Charles de Gaulle 92200 Neuilly sur Seine France Tel.: +33 (0)1 46 25 82 00 - Fax: +33 (0)1 47 72 56 95 www.ingenico.com...
