Appendix D: Probe Basics

P3010 High-Frequency Compensation

142
The P3010 high-frequency compensation should seldom require adjustment.
However, your probe may require high-frequency adjustment if either of the
following are true:
The probe has high-frequency aberrations
The probe does not perform at the rated bandwidth

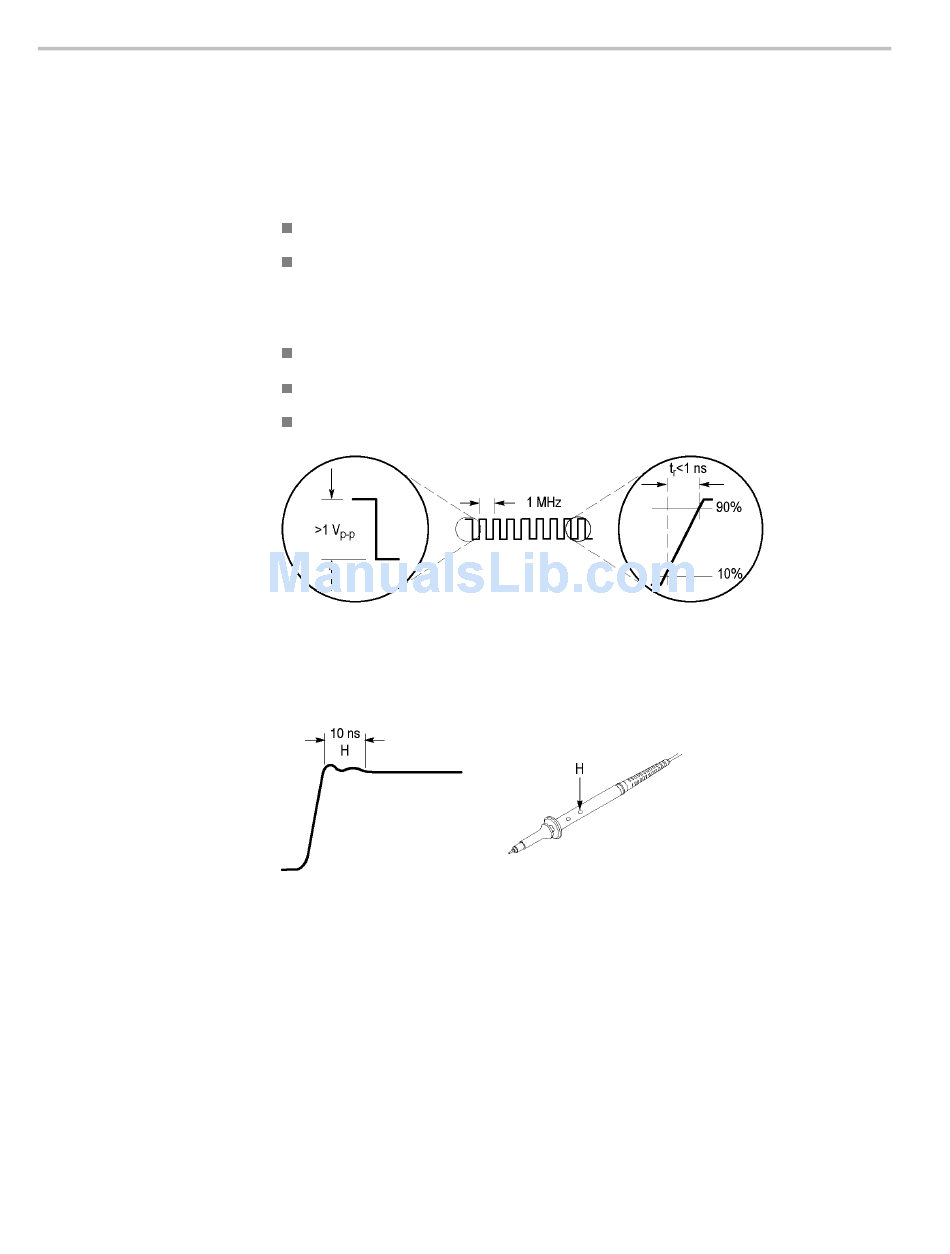

To perform the high-frequency compensation adjustment, you will need a signal
source that has all of the following characteristics:
Square-wave output at 1 MHz
Fast rise output with rise time less than 1 ns
Output properly terminated
Connect the P3010 to the signal source to display a 1 MHz test signal on your
oscilloscope. Use the BNC-to-probe tip adapter (013-0277-00) to make the
connection. The oscilloscope should display a waveform similar to the one shown
next.
Adjust trimmer H until the waveform is flat on top and has a square leading edge.
