Page 1: User Manual
Kramer Electronics, Ltd. USER MANUAL Rack Adapter Model: RK-622... -
Page 2: Table Of Contents

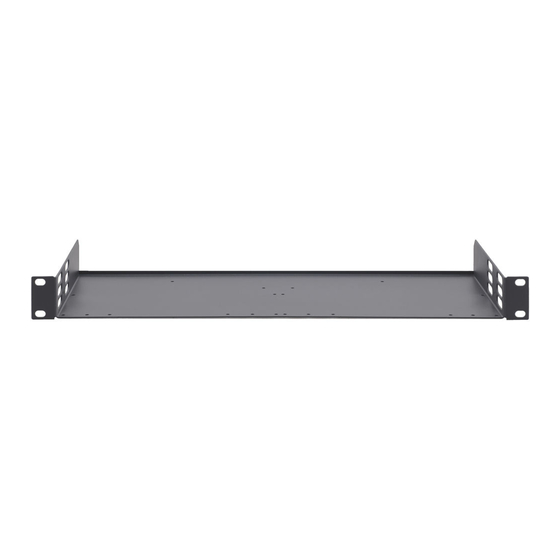

Figure 1: RK-622 Rack Adapter Figure 2: Connecting the Side Bracket Figure 3: RK-622 Rack Adapter – Connecting the 622 (Aluminum) Figure 4: RK-622 Rack Adapter – Connecting the 622 (Extrusion) Figure 5: RK-622 Rack Adapter – Connecting a Blank Panel... -
Page 3: Introduction
Unpack the equipment carefully and save the original box and packaging materials for possible future shipment Review the contents of this user manual The RK-622 does not have to be filled with mounted units. Use a blank panel to fill the empty space. 2.1 Recommendations for Best Performance... -
Page 4: Overview
Overview You can mount one or two Kramer 622 units in a 19" 1U rack. The 622 units are manufactured in two versions; an Aluminum box or an extrusion-type box. -
Page 5: Mounting The 622 On The Kramer Rk-622 Rack Adapter
Figure 2: Connecting the Side Bracket 2. Place the first 622 unit (with the side bracket) on the rack. 3. Hold both the 622 and the RK-622 with your hands and turn them upside down. 4. Insert the appropriate amount of screws through the holes on the RK-622 that fit the holes on the underside of the 622, using the screws supplied with the unit (as illustrated in Figure 3). -
Page 6: Mounting An Extrusion Housing Unit
To mount the 622 units on the RK-622, do the following: 1. Place the first 622 unit on the rack. 2. Hold both the 622 and the RK-622 with your hands and turn them upside down. 3. Insert the appropriate amount of screws through the holes on the RK-622 that fit the holes on the underside of the 622, using the screws supplied with the unit (as illustrated in Figure 4). -
Page 7: Connecting A Blank Panel To The Rk-622
SCREW CONUS BLACK M3x5 622R/T (Extr) 622R/T (Extr) Figure 4: RK-622 Rack Adapter – Connecting the 622 (Extrusion) 5.3 Connecting a Blank Panel to the RK-622 to the RK-622 to cover any empty spaces, as You can connect a blank panel... -
Page 8: Technical Specifications
Technical Specifications Technical Specifications Table 1 includes the technical specifications: Table 1: Technical Specifications of the RK-622 DIMENSIONS: 19-inch (W), 7-inch (D) 1U (H) WEIGHT: 1.2 kg. (2.65 lbs.) approx. ACCESSORIES: 10 M3x5 conus black screws, 6 M3x8 conus black screws OPTIONS: 1 half-19"... - Page 9 EXCLUSION OF DAMAGES The liability of Kramer for any effective products is limited to the repair or replacement of the product at our option. Kramer shall not be liable for: 1. Damage to other property caused by defects in this product, damages based upon inconvenience, loss of use of the product, loss of time, commercial loss;...
- Page 10 For the latest information on our products and a list of Kramer distributors, visit our Web site: www.kramerelectronics.com, where updates to this user manual may be found. We welcome your questions, comments and feedback. Safety Warning: Disconnect the unit from the power supply before opening/servicing.
