Page 1: User Manual
Kramer Electronics, Ltd. USER MANUAL Wall Plate Series W-HDMI, WP-HDMI1M, WP-HDMI2M... - Page 2 Contents Contents Introduction Getting Started Overview W-HDMI, WP-HDMI1M and WP-HDMI2M Wall Plate Inserts W-HDMI WP-HDMI1M WP-HDMI2M Figures Figure 1: W-HDMI Figure 2: WP-HDMI1M Figure 3: WP-HDMI2M...
-
Page 3: Getting Started

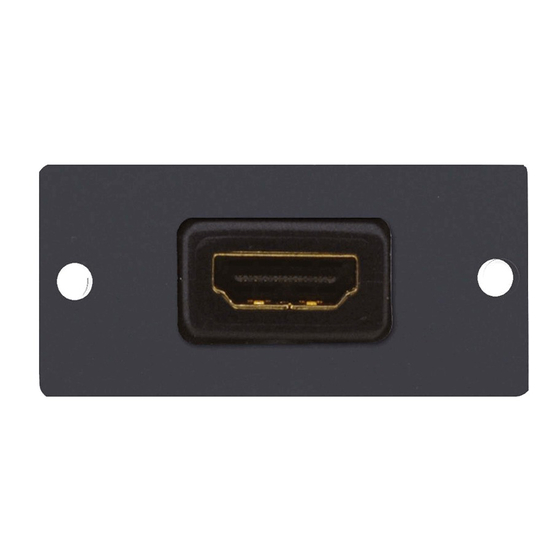

Each insert can be used with the Kramer WP Frame or with one of our TBUS products. Getting Started... - Page 4 WP-HDMI2M (see section 4.3) 4.1 W-HDMI The W-HDMI is a single-insert wall plate (see Figure 1) with one HDMI connector at the front and a cable and connector at the rear: Figure 1: W-HDMI 1 Available in three versions: one for Belgium and Germany, one for England and Europe (except Belgium and Germany),...
- Page 5 W-HDMI, WP-HDMI1M and WP-HDMI2M Wall Plate Inserts 4.2 WP-HDMI1M The WP-HDMI1M is a one-gang metal wall plate insert (see Figure 2) with one pass through male connector for HDMI at the front and a cable and connector at the rear.
- Page 6 W-HDMI, WP-HDMI1M and WP-HDMI2M Wall Plate Inserts 4.3 WP-HDMI2M The WP-HDMI2M is a one-gang metal wall plate insert (see Figure 3) with two pass through male connectors for HDMI at the front and cables and connectors at the rear. Figure 3: WP-HDMI2M...
- Page 8 For the latest information on our products and a list of Kramer distributors, visit our Web site: www.kramerelectronics.com, where updates to this user manual may be found. We welcome your questions, comments and feedback. Kramer Electronics, Ltd. Web site: www.kramerelectronics.com E-mail: info@kramerel.com...
