- Page 1 Kramer Electronics, Ltd. USER MANUAL Wall Plate (WXL) Series Multifunctional Passive Wall Plates: WXL-1FM, WXL-2F, WXL-1F, WXL-2M, WXL-1M...
- Page 2 Introduction Getting Started Overview Multifunctional Passive Wall Plates WXL-1FM XLR Audio to Terminal Blocks Adapter WXL-2F XLR Audio to Terminal Blocks Adapter WXL-1F XLR Audio to Terminal Blocks Adapter WXL-2M XLR Audio to Terminal Blocks Adapter WXL-1M XLR Audio to Terminal Blocks Adapter...
-
Page 3: Getting Started

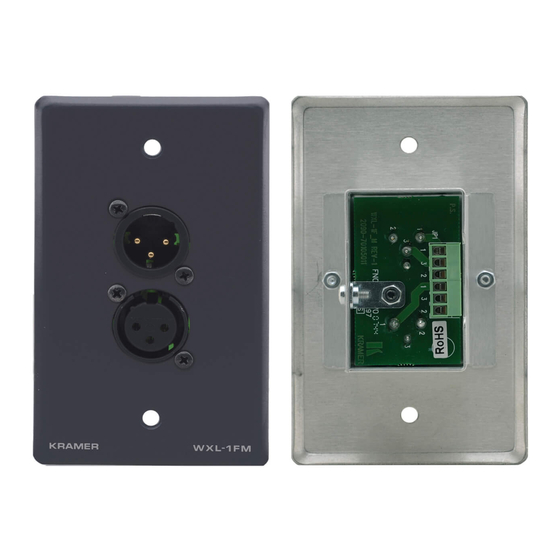

GROUP 6: Accessories and Rack Adapters; GROUP 7: Scan Converters and Scalers; and GROUP 8: Cables and Connectors 2 Each wall plate is supplied with two M3x4 screws 3 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com 4 Except Belgium and Germany... - Page 4 WXL-1M (see section 4.5) 4.1 WXL-1FM XLR Audio to Terminal Blocks Adapter The Kramer WXL-1FM is a wall plate with male and female XLR connectors on the front and terminal block connectors on the rear, as Figure 1 illustrates: Figure 1: WXL-1FM...
- Page 5 Multifunctional Passive Wall Plates 4.2 WXL-2F XLR Audio to Terminal Blocks Adapter The Kramer WXL-2F is a wall plate with two female XLR connectors on the front and terminal block connectors on the rear, as Figure 2 illustrates: Figure 2: WXL-2F 4.3 WXL-1F XLR Audio to Terminal Blocks Adapter...
- Page 6 Figure 3 illustrates: Figure 3: WXL-2M 4.5 WXL-1M XLR Audio to Terminal Blocks Adapter The Kramer WXL-1M is a wall plate with a male XLR connector on the front and terminal block connectors on the rear. KRAMER: SIMPLE CREATIVE TECHNOLOGY...
- Page 7 EXCLUSION OF DAMAGES The liability of Kramer for any effective products is limited to the repair or replacement of the product at our option. Kramer shall not be liable for: Damage to other property caused by defects in this product, damages based upon inconvenience, loss of use of the product, loss of time, commercial loss;...
- Page 8 For the latest information on our products and a list of Kramer distributors, visit our Web site: www.kramerelectronics.com, where updates to this user manual may be found. We welcome your questions, comments and feedback. Kramer Electronics, Ltd. Web site: www.kramerelectronics.com E-mail: info@kramerel.com...
