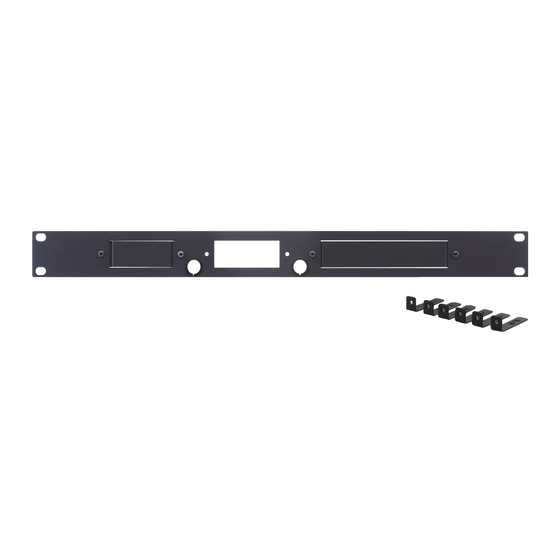

- Page 1 USER MANUAL TOOLS , PicoTOOLS , MegaTOOLS Rack Adapters MODELS: RK-1T2PT, RK-2T1PT, RK-3T, RK-3T-B, RK-6T, RK-9T, RK-3TR, RK-4PT, RK-4PT-B, RK-T2B, RK-T2B-B, RK-T2SB, RK-T2SB-B P/N: 2900-000243 Rev 4 www.kramerAV.com...
-
Page 2: Table Of Contents
Kramer Electronics Ltd. Contents Introduction Getting Started Overview Defining your Rack Adapter RK-1T2PT RK-2T1PT RK-3T/RK-3T-B RK-6T RK-9T RK-3TR RK-4PT/RK-4PT-B RK-T2B/RK-T2B-B RK-T2SB/RK-T2SB-B Connecting Brackets Installing Devices on Your Rack Adapter Installing a Typical Device Installing an Extrusion Type Device TOOLS, PicoTOOLS, MegaTOOLS Rack Adapters – Contents... -
Page 3: Introduction
Kramer Electronics Ltd. Introduction Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been providing a world of unique, creative, and affordable solutions to the vast range of problems that confront the video, audio, presentation, and broadcasting professional on a daily basis. In recent years, we... -
Page 4: Overview
European Advanced Recycling Network (EARN) and will cover any costs of treatment, recycling and recovery of waste Kramer Electronics branded equipment on arrival at the EARN facility. For details of Kramer’s recycling arrangements in your particular country go to our recycling pages at www.kramerav.com/support/recycling. -
Page 5: Defining Your Rack Adapter
Kramer Electronics Ltd. Defining your Rack Adapter The following rack adapters enable you to mount Kramer devices in a 19” rack: RK-1T2PT on page 3. RK-2T1PT on page 4. RK-3T/RK-3T-B on page 4. RK-6T on page 5. -
Page 6: Rk-2T1Pt
Kramer Electronics Ltd. RK-2T1PT The RK-2T1PT 19” rack adapter is suitable for mounting one Kramer PicoTOOLS and two Kramer TOOLS size devices (extruded or regular) in a 1U rack space. TOOLS Extrusion TOOLS Pico TOOLS Feed-through Hole for Power Supply Cable... -
Page 7: Rk-6T
Kramer Electronics Ltd. RK-6T The RK-6T 19” rack adapter is suitable for mounting six Kramer TOOLS size devices (extruded or regular) in a 2U rack space. Extrusion TOOLS TOOLS Feed-through Hole for Power Supply Cable Figure 4: RK-6T Rack Adapter... -
Page 8: Rk-9T
Kramer Electronics Ltd. RK-9T The RK-9T 19” rack adapter is suitable for mounting nine Kramer TOOLS size devices (extruded or regular) in a 3U rack space. Extrusion TOOLS TOOLS Feed-through Hole for Power Supply Cable Figure 5: RK-9T Rack Adapter RK-3TR The RK-3TR 19”... -
Page 9: Rk-4Pt/Rk-4Pt-B
Kramer Electronics Ltd. RK-4PT/RK-4PT-B The RK-4PT/RK-4PT-B 19” rack adapter is suitable for mounting four Kramer PicoTOOLS size device in a 1U rack space. Pico TOOLS Pico TOOLS Feed-through Hole for Power Supply Cable Figure 7: RK-4PT/RK-4PT-B Rack Adapter RK-T2B/RK-T2B-B 19” rack adapter is suitable for mounting two Kramer MegaTOOLS RK-T2B/RK-T2B-B size devices in a 1U rack space. -
Page 10: Rk-T2Sb/Rk-T2Sb-B
Kramer Electronics Ltd. RK-T2SB/RK-T2SB-B The RK-T2SB 19” rack adapter is suitable for mounting one Kramer TOOLS and one Kramer MegaTOOLS size device in a 1U rack space. TOOLS Large-size TOOLS Feed-through Hole for Power Supply Cable Figure 9: RK-T2SB Rack Adapter Connecting Brackets The connecting brackets include holes for different types of devices. -
Page 11: Installing Devices On Your Rack Adapter
Kramer Electronics Ltd. Installing Devices on Your Rack Adapter This section describes how to install Kramer devices on your rack adapter. Installing a Typical Device To install a typical device on your rack adapter: 1. Remove the side panel screws (one on each side) from the device. -
Page 12: Installing An Extrusion Type Device
Kramer Electronics Ltd. Installing an Extrusion Type Device An extrusion type device is one that the front panel protrudes past the front face of the rack adapter. Extrusion type devices do not have screws attached to each side. Use the screws included with the rack adapter. - Page 13 Electronics products, this product must be insured during shipment, with the insurance and shipping charges prepaid by you. If this product is returned uninsured, you assume all risks of loss or damage during shipment. Kramer Electronics will not be responsible for any costs related to the removal or re- installation of this product from or into any installation.
- Page 14 SAFETY WARNING Disconnect the unit from the power supply before opening and servicing For the latest information on our products and a list of Kramer distributors, visit our Web site where updates to this user manual may be found. We welcome your questions, comments, and feedback.
