Grizzly H8217 Instruction Manual

Grizzly H8217 Instruction Manual

3/8" reversible angle drill 0−1500 rpm
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

MODEL H8217
⁄
" REVERSIBLE ANGLE DRILL
3
8
0−1500 RPM
INSTRUCTION MANUAL
COPYRIGHT © AUGUST, 2007 BY GRIZZLY INDUSTRIAL, INC.
WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE
OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC.
#JM9331 PRINTED IN CHINA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the H8217 and is the answer not in the manual?

Questions and answers

Related Manuals for Grizzly H8217

Summary of Contents for Grizzly H8217

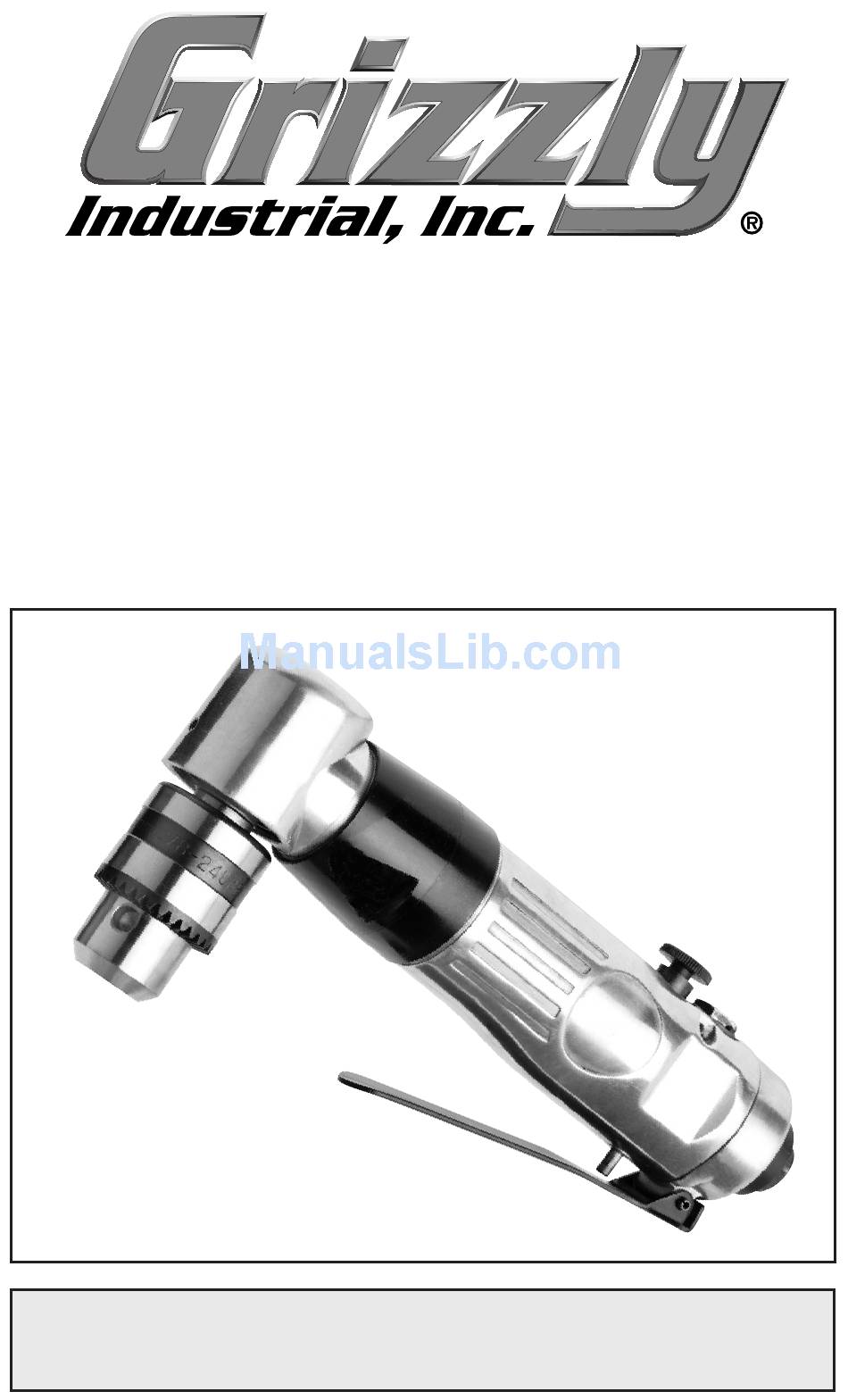

  • Page 1 " REVERSIBLE ANGLE DRILL 0−1500 RPM INSTRUCTION MANUAL COPYRIGHT © AUGUST, 2007 BY GRIZZLY INDUSTRIAL, INC. WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC. #JM9331 PRINTED IN CHINA...
  • Page 2 ���� ������ �������� �������� ������ ������������ �� ��� ������ ������ ���������� ����������� ��� ������� �� ���� ������������������ ������� �� ����� ���������� ��� ������ ��� ������������ ����� �� ���� ������ ��� ������ �� ������� �������� ������� ��������� ����������� ������������� �� ������ ���...

  • Page 3: Safety Instructions For Pneumatic Tools

    Always wear a respi- rator NIOSH approved for the type of material being processed. Model H8217 ⁄ " Reversible Angle Drill 1500 RPM SAFETY Indicates an imminently hazardous situation which, if not avoided, WILL result in death or serious injury.
  • Page 4 23. BE AWARE OF HOSE LOCATION. Hoses can easily become a tripping hazard when laid across the floor in a disorganized fashion. 24. DO INFLUENCE ALCOHOL, OR WHEN TIRED. Model H8217 ⁄ " Reversible Angle Drill 1500 RPM UNINTENTIONAL RECOMMENDED UNTRAINED UNDER...

  • Page 5: Specifications

    INTRODUCTION Foreword specifications, photographs in this manual represent the Model H8217 as supplied when the manual was prepared. However, owing to Grizzly’s policy of continuous improvement, changes may be made at any time with no obligation on the part of Grizzly.

  • Page 6: Installing Bits

    If normal safety precautions are overlooked or ignored, serious personal injury may occur. Installing Bits The Model H8217 uses drill bits with a 0 to " diameter shaft. See the Grizzly catalog or www.grizzly.com for a complete listing of available bits and accessories.

  • Page 7: Daily Maintenance

    Daily Maintenance Drop 2-6 drops of air tool oil directly into the air fitting before using the drill. In addition, drip 2-6 drops of oil directly into the ball oiler by depressing the oil ball located in the angle housing, shown in Figure 4.
  • Page 8 H8217 PARTS LIST �� �� �� �� �� �� �� �� �� �� �� �� �� �� REF PART # DESCRIPTION PH8217001 HOUSING PH8217002 COMPRESSION SPRING PH8217003 REVERSE VALVE HOUSING PH8217004 REVERSE VALVE PH8217005 ROLL PIN 2.5 X 20 PH8217006 VALVE HOUSING...
