Summary of Contents for Grizzly H7792

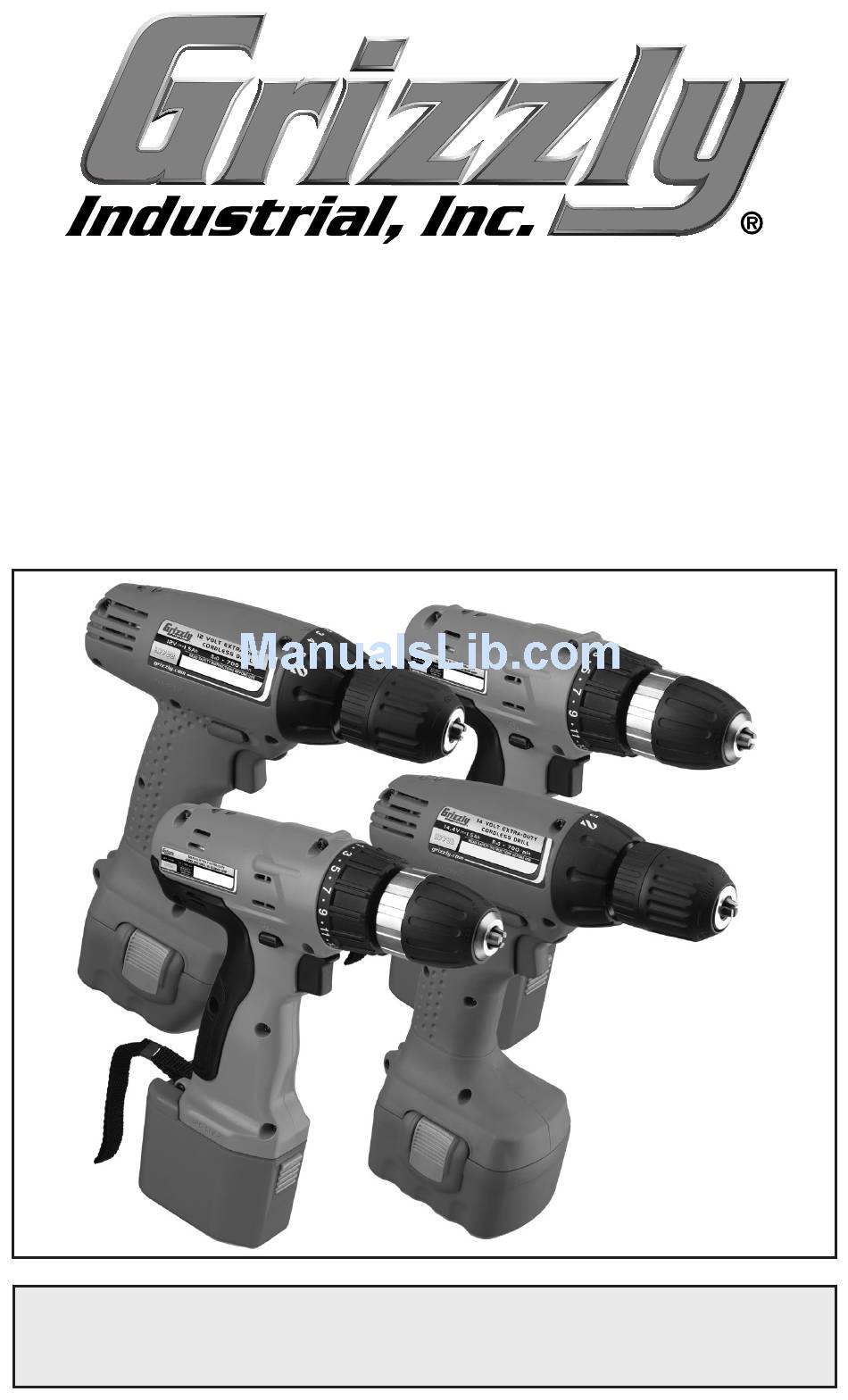

- Page 1 MODEL H7792/H7793/H7794/H7795 CORDLESS DRILL OWNER'S MANUAL COPYRIGHT © OCTOBER, 2005 BY GRIZZLY INDUSTRIAL, INC. WARNING: NO PORTION OF THIS MANUAL MAY BE REPRODUCED IN ANY SHAPE OR FORM WITHOUT THE WRITTEN APPROVAL OF GRIZZLY INDUSTRIAL, INC. #EW7591 PRINTED IN CHINA...
-
Page 3: Table Of Contents
Direction Switch ...10 Installing Bits ...10 Torque Settings ...11 Driving Screws ...11 Drilling Tips ...12 Drilling ...12 SECTION 3: ACCESSORIES...13 SECTION 4: MAINTENANCE ...14 Drill Maintenance ...14 Charger and Battery ...14 Replacement Chargers and Batteries ...15 WARRANTY AND RETURNS ...16... -
Page 4: Introduction
Foreword We are proud to offer the Grizzly Model H7792-H7795 Cordless Drills. These mod- els are part of a growing Grizzly family of fine power tools. When used according to the guidelines set forth in this manual, you can expect years of trouble-free, enjoyable operation and proof of Grizzly’s commit-... -
Page 5: Variable Speed
Customer Service #: (570) 546-9663 • To Order Call: (800) 523-4777 • Fax #: (800) 438-5901 Cordless Drill Models H7792, H7793, H7794, H7795 MODEL VOLTAGE AMP HOURS VARIABLE SPEED NUMBER OF CLUTCH SETTINGS CHUCK CAPACITY CHARGING TIME WEIGHT WITH BATTERY... -
Page 6: Identification
Figure 1. Drill component identification. A. Charger B. Battery C. Bit D. Keyless Chuck E. Torque Setting Ring Identification F. Direction Indicator G. Direction Switch H. Trigger Case Model H7792/H7793/H7794/H7795 Cordless Drills... -
Page 7: Section 1: Safety
PRODUCES DUST. Wood dust is a carcinogen and can cause cancer and severe respiratory illnesses. Model H7792/H7793/H7794/H7795 Cordless Drills Indicates an imminently hazardous situation which, if not avoided, WILL result in death or serious injury. Indicates a potentially hazardous situation which, if not avoided, COULD result in death or serious injury. - Page 8 Make sure you know what type of wood dust you will be exposed to and always wear an approved respirator. Model H7792/H7793/H7794/H7795 Cordless Drills ADJUSTING KEYS R E C O M M E N D E D...
-
Page 9: Additional Safety Instructions For Cordless Drills
Always consider safety first, as it applies to your individual working conditions. Use this and other machinery with caution and respect. Failure to do so could result in serious personal injury, damage to equipment or poor work results. Model H7792/H7793/H7794/H7795 Cordless Drills for Cordless Drills 8. HOLDING THE DRILL: When the... -
Page 10: Additional Safety Instructions For Batteries And Chargers
10. BATTERY DISPOSAL: The battery must be recycled or disposed of properly. DO NOT dispose of the battery in a landfill or incinerate. Combustion of some of the batteries’ component materials can cause toxic fumes and possible explosion. Model H7792/H7793/H7794/H7795 Cordless Drills DAMAGE: Replace... -
Page 11: Section 2: Operations
3. The red light will come on (Models H7792/3 will blink slowly) when the battery is charging. Charge the bat- tery for 1 hour or until the charging light turns green (Models H7794/5) or blinks rapidly (Models H7792/3). -
Page 12: Direction Switch
4. To release the bit or driver, hold the chuck collar, and turn the sleeve coun- terclockwise. Note: The bit may be hot after use. Use gloves when removing. Model H7792/H7793/H7794/H7795 Cordless Drills ⁄ " shanks. Chuck Collar... -
Page 13: Torque Settings
Figure 4. Torque adjustment clutch ring. 2. Turn the clutch ring to the drill setting to prevent the clutch from slipping. Note: DO NOT operate the drill with the clutch set between the highest number and the drill setting. -
Page 14: Drilling Tips
National Standards Institute (ANSI). Performing drilling operations: 1. Install the correct sized drill bit. 2. Set the clutch to drill and set the direc- tion to clockwise (forward). 3. Place the drill bit firmly against the workpiece, start the drill slowly and... -
Page 15: Section 3: Accessories
2" lengths , so they work directly in the chuck or in quick change bit holders. Figure 6. Hex power bits. Model H7792/H7793/H7794/H7795 Cordless Drills G8865—Cobalt Alloy Drill Bits 13-PC. G8866—Cobalt Alloy Drill Bits 21-PC G8867—Cobalt Alloy Drill Bits 29-PC... -
Page 16: Section 4: Maintenance
Refer to the following page or the Grizzly catalog for replacement batteries. The battery must be recycled or disposed of properly. DO NOT dispose of the bat- tery in a landfill or incinerate. -
Page 17: Replacement Chargers And Batteries
Replacement Chargers and Batteries Model H7792: Replacement Battery: H8857 Replacement Charger: H8858 Model H7793: Replacement Battery: H8861 Replacement Charger: H8862 Model H7792/H7793/H7794/H7795 Cordless Drills Model H7794: Replacement Battery: H8859 Replacement Charger: H8860 Model H7795: Replacement Battery: H8863 Replacement Charger: H8864... -
Page 18: Warranty And Returns
WARRANTY AND RETURNS Grizzly Industrial, Inc. warrants every product it sells for a period of 1 year to the original purchaser from the date of purchase. This warranty does not apply to defects due directly or indirectly to misuse, abuse, negligence, accidents, repairs or alterations or lack of maintenance. -
Page 19: Warranty Card
____20-29 ____50-59 How long have you been a woodworker/metalworker? ____0-2 Years How many of your machines or tools are Grizzly? ____0-2 Do you think your machine represents a good value? ____Yes Would you recommend Grizzly Industrial to a friend? ____Yes Would you allow us to use your name as a reference for our customers in your area? Note: We never use names more than 3 times. - Page 20 Send a Grizzly Catalog to a friend: Name________________________________ Street________________________________ City______________State______Zip_______ FOLD ALONG DOTTED LINE GRIZZLY INDUSTRIAL, INC. P.O. BOX 2069 BELLINGHAM, WA 98227-2069 TAPE ALONG EDGES--PLEASE DO NOT STAPLE Place Stamp Here...
