Grizzly H8071 Instructions

introduction
the Model h8071 drill press lathe attachment
allows wooden workpieces to be turned on a drill
press in the same manner as a wood lathe. items
like small pickets, legs, spindles, handles, dowels,
and pins can be made. Fits drill press tables with
t-nut slots or with slotted through holes as shown
in figure 1.

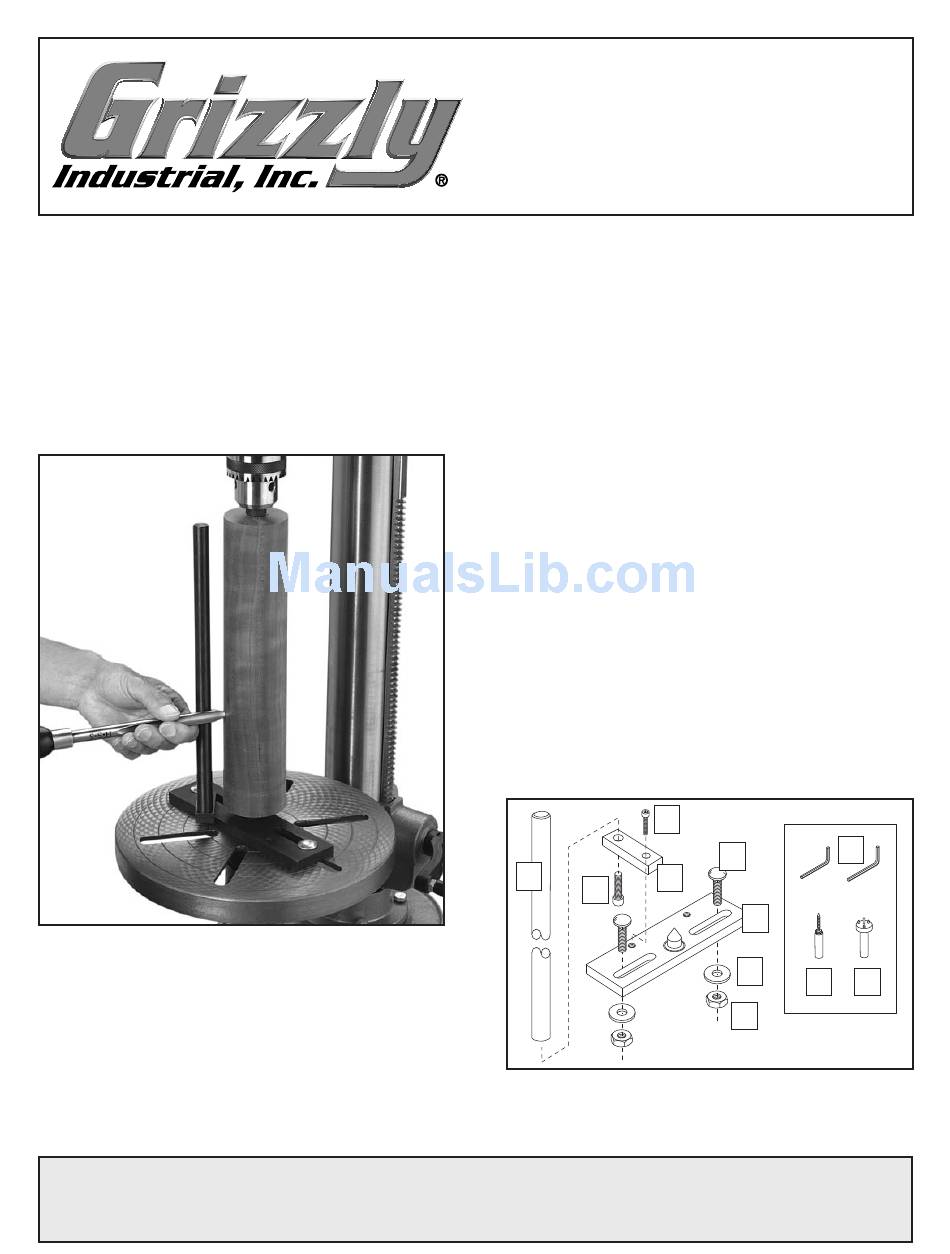

figure 1. h8071 drill press lathe attachment

specifications

tool rest length ............................................ 12"
Maximum Workpiece length (if reversed) ..... 24"
Maximum Workpiece diameter ........................ 6"
shank diameter of screw and spur Center ....
Construction Material .................................. steel
shipping Weight .......................................3.5 lbs.
Warning: no portion of this manual may be reproduced in any shape
or form Without the Written approval of grizzly industrial, inc.
⁄ "
3
8
Copyright © JUNE, 2010 By grizzly iNdUstrial, iNC.
#Cr13012 priNtEd iN ChiNa
model h8071
drill press lathe
attachment
instructions
inventory
refer to the list and figure 2 to inventory your
package. if you can't find an item on this list, check
the mounting locations or examine the packaging
materials carefully. occasionally we pre-install
certain components for shipping purposes.
if any nonproprietary parts are missing (e.g. a
nut or a washer), we will gladly replace them; or
for the sake of expediency, replacements can be
obtained at your local hardware store.
description
a. tool rest .................................................... 1
b. Cap screw M8-1.25 x 20 ............................ 1
c. Cap screw M6-1 x 20 ................................. 1
d. tool rest Foot ............................................ 1
e. Carriage Bolt M10-1.5 x 40 ......................... 2
f.
Base and live Center assembly ................ 1
g. Flat Washer 10mm ..................................... 2
h. hex Nut M10-1.5 ......................................... 2
i.
hex Wrenches 5, 6mm ..........................1 Ea
J.
screw Center .............................................. 1
K. spur Center ................................................ 1
C
a
d
B
figure 2. inventory.
Qty
i
E
F
g
J K
h
