4 Your TP-575
Figure 1 and
# Feature
1 EDID SETUP Button
2 IN LED
3 OUT 1 (LINE) LED
4 OUT 2 (HDMI) LED
5 ON LED
6 LINE IN RJ-45 Connector
OUT 1 (LINE) RJ-45 Connector Connects to the CAT 5 IN RJ-45 connector on the PT-572+
7
8 OUT 2 (HDMI) Connector
9 12V DC
5 Using the TP-575 HDMI Line Receiver / DA
This section describes how to:
Connect the TP-575 (see section 5.1)
•
• Wire the twisted pair RJ-45 connectors (see section 5.2)
• Use the EDID SETUP button (see section 5.3).
1 This LED also illuminates or blinks during EDID setup (see section 5.3)
6

Your TP-575 HDMI Line Receiver / DA

HDMI Line Receiver / DA
Table 1 define the TP-575 HDMI Line Receiver / DA:

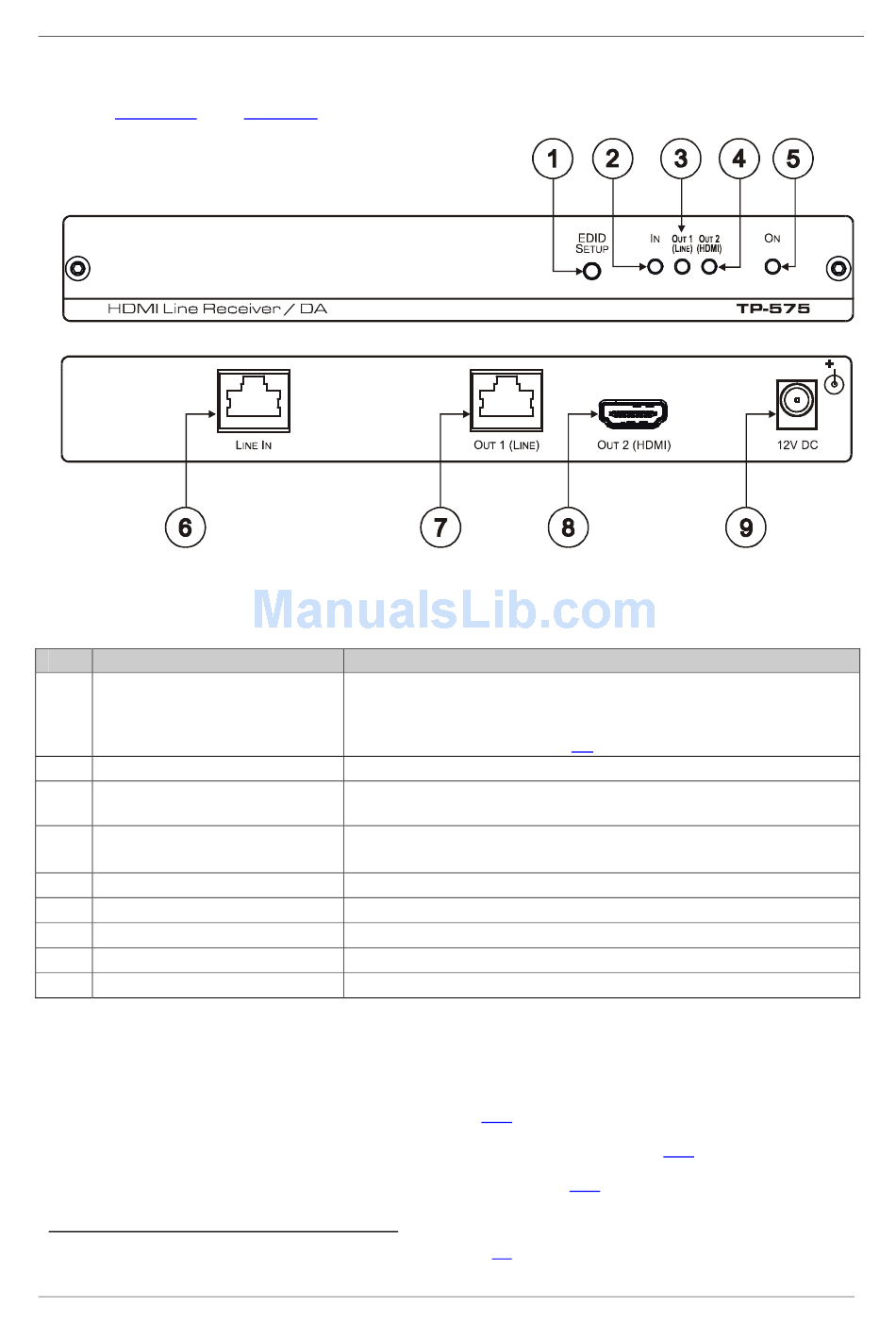

Figure 1: TP-575 HDMI Line Receiver / DA

Table 1: TP-575 HDMI Line Receiver / DA Features

Press briefly to determine the type of EDID stored in the non-
volatile memory
Press and hold to select the desired EDID setup and then release
to acquire EDID (see section 5.3)
Illuminates when an input is connected
Illuminates when OUT 1 is connected and active
Blinks when the monitor does not support HDCP
Illuminates when OUT 2 is connected and active
Blinks when the monitor does not support HDCP
Illuminates when receiving power
Connects to the CAT 5 OUT RJ-45 connector on the PT-571
Connects to the HDMI acceptor
+12V DC connector for powering the unit
Function
