664 User Guide and Technical Information
13)
Menu Button
Displays the Setup Menu.
14)
Headphone Encoder
Main and Input Settings Screen: Turn to adjust
headphone gain. In Main Screen: Press to select
headphone monitor source. In Menus: Turn
to navigate; Press to make selection. In Input
Settings Screen press to select input source.
Headphone gain and preset selection functions
can be reversed:
15)
Headphone Clipping LED
Illuminates red to indicate headphone output is
approaching clipping level.
16) RTN Switch
Slide Left to activate RTN A, slide Right to acti-
vate RTN B. To access secondary function Press
and hold Select Encoder then slide left for COM
RTN and right for RTN C. Primary and Second-
ary functions of the RTN toggle switch can be
selected in the Setup Menu.

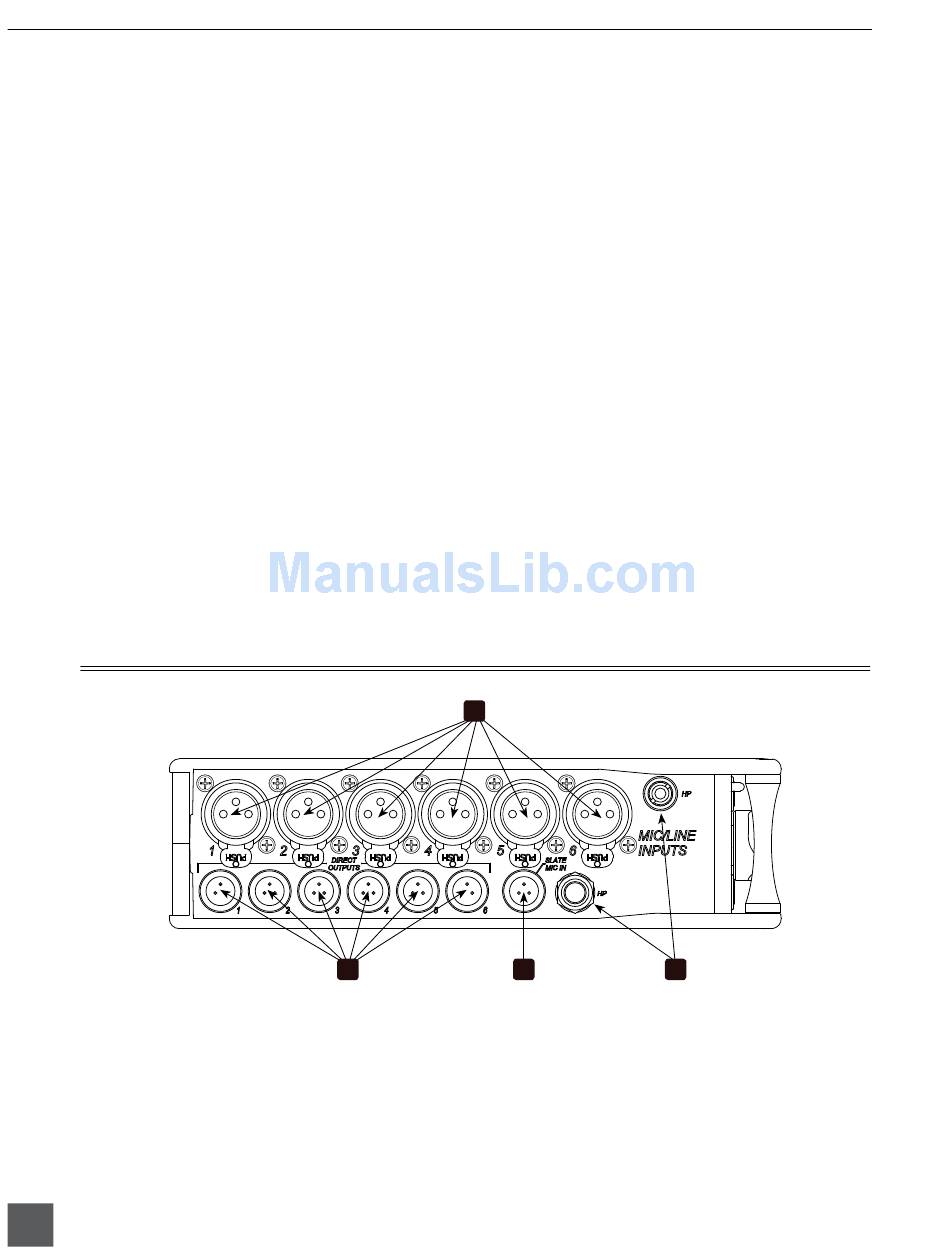

Left Panel Connectors and Control

1)
XLR-3F Analog Inputs 1-6
Active-balanced analog microphone- or line-
level input for inputs 1-6 on XLR-3F connec-
tor. Input type is set within the Input Settings
Screen. Inputs 1 and 6 can also accept AES3 or
AES42 (Mode 1) signal. Pin-1 ground, pin-2 (+),
pin-3 (-).
2
v . 2 .01 Features and specifications are subject to change . Visit www .sounddevices .com for the latest documentation .
see Headphone Monitoring
4
17)
Slate / Tone Switch
Slide left to activate the Slate Microphone, slide
again to deactivate. For momentary action
hold for one second or longer. Slide right to
activate the Tone Oscillator. Tone will latch if
held for one second or longer; slide again to
deactivate. Secondary function: press and hold
Select Encoder then slide Mic switch to activate
COM. Primary and Secondary functions can be
switched in the Setup Menu.
18)
Slate Mic LED
Illuminates green when Slate Mic or COM is
active.
19)
Select Encoder
Multi-function encoder. Selects Tracks and
RTN's on the Main Screen. On the Main Screen,
press the Select Encoder and the Meters button
to arm/disarm record tracks. With L, R, X1, X2,
or any RTN selected, press then turn to adjust
level. Vertical Scroll in matrix windows. Turn to
adjust digital trim level in Input Settings Win-
dow. Turn to scroll cursor and press to insert a
space character during text entry. Acts as shift
button to access secondary functions.
1
3
2)
Headphone Output
1/4-inch and 3.5 mm TRS stereo headphone
connectors. Can drive headphones from 8 to
1000 ohm impedances to very high levels. Tip =
left, ring = right, sleeve = ground.
