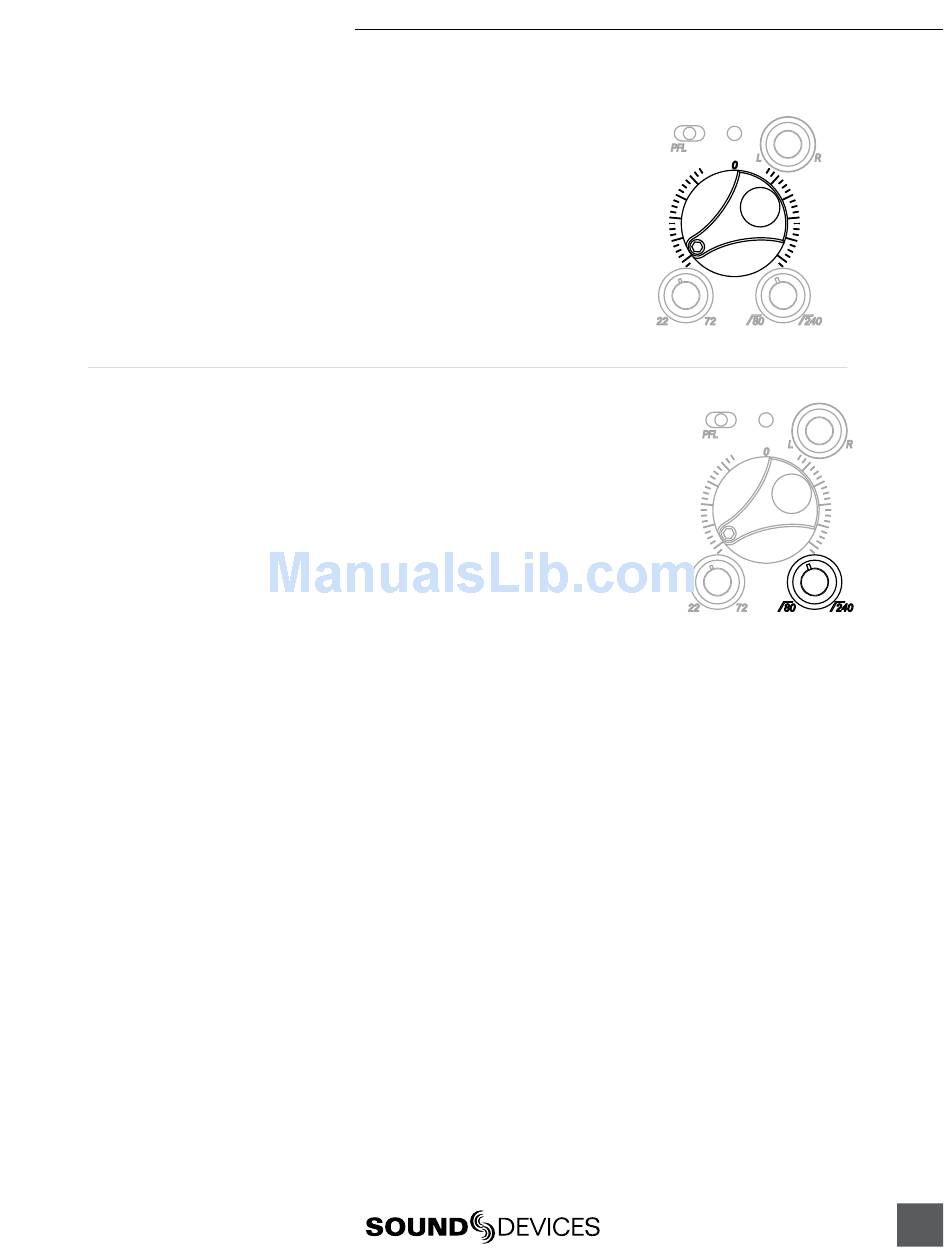

Input Fader

The Input Fader is the primary control used while mixing and it affects
the level of the Input signal routed to all post-fade destinations. Use the
Input Fader to make fine gain adjustments. The fader can be attenuated
from off (full counter-clockwise position) to +15 dB above the set Trim
level (full clockwise position). To optimize gain structure for the best per-
formance, operate input faders at or near the 0 dB (unity gain) position.

High-Pass Filter

Each input channel has an adjustable high-pass filter controlled by the High-Pass Filter control. High-
pass (or low-cut/low roll-off) filters are useful for removing excess low
frequency energy from audio signals. Wind noise is a common unwanted
low frequency signal that can be reduced with the use of a high-pass filter.
For most audio applications, engaging the high-pass filter is beneficial, be-
cause audio information below 100 Hz is rarely used, especially for speech
reproduction.
The 664's high-pass filter circuit features an adjustable corner (-3 dB) fre-
quency over a range from 80 to 240 Hz. Below 80 Hz, the filter's slope is 12
dB/octave. At higher corner frequency settings, the slope is 6 dB/octave. The
purpose for this compound slope is to give additional roll-off at the 80 Hz
setting to reduce wind noise and low frequency rumble. The higher settings
can be used to counteract the proximity effect of directional microphones where a more gentle slope is
desired.
The 664's high-pass filter circuit is unique because of its placement before any electronic amplification.
Most mixers' high-pass filter circuits are placed after the microphone preamplifier, such that all of the
low-frequency signals get amplified. By virtue of the 664's circuit cutting the low-frequency signals
before amplification, higher headroom is achieved in the presence of signals with significant low-
frequency energy.
When possible, attempt to equalize at the sound source with microphone selection, placement, wind-
screens, and onboard microphone filtering. Many microphones have on-board high pass filters. Use
the high-pass filters on the 664 in conjunction with the microphone's filter to increase the filter's slope.
The filter can be removed from the circuit completely by rotating the high-pass filter control to the full
counter-clockwise (detented) position. The high-pass filter potentiometer can be adjusted easily and
then recessed to hide it from the mixing surface.
