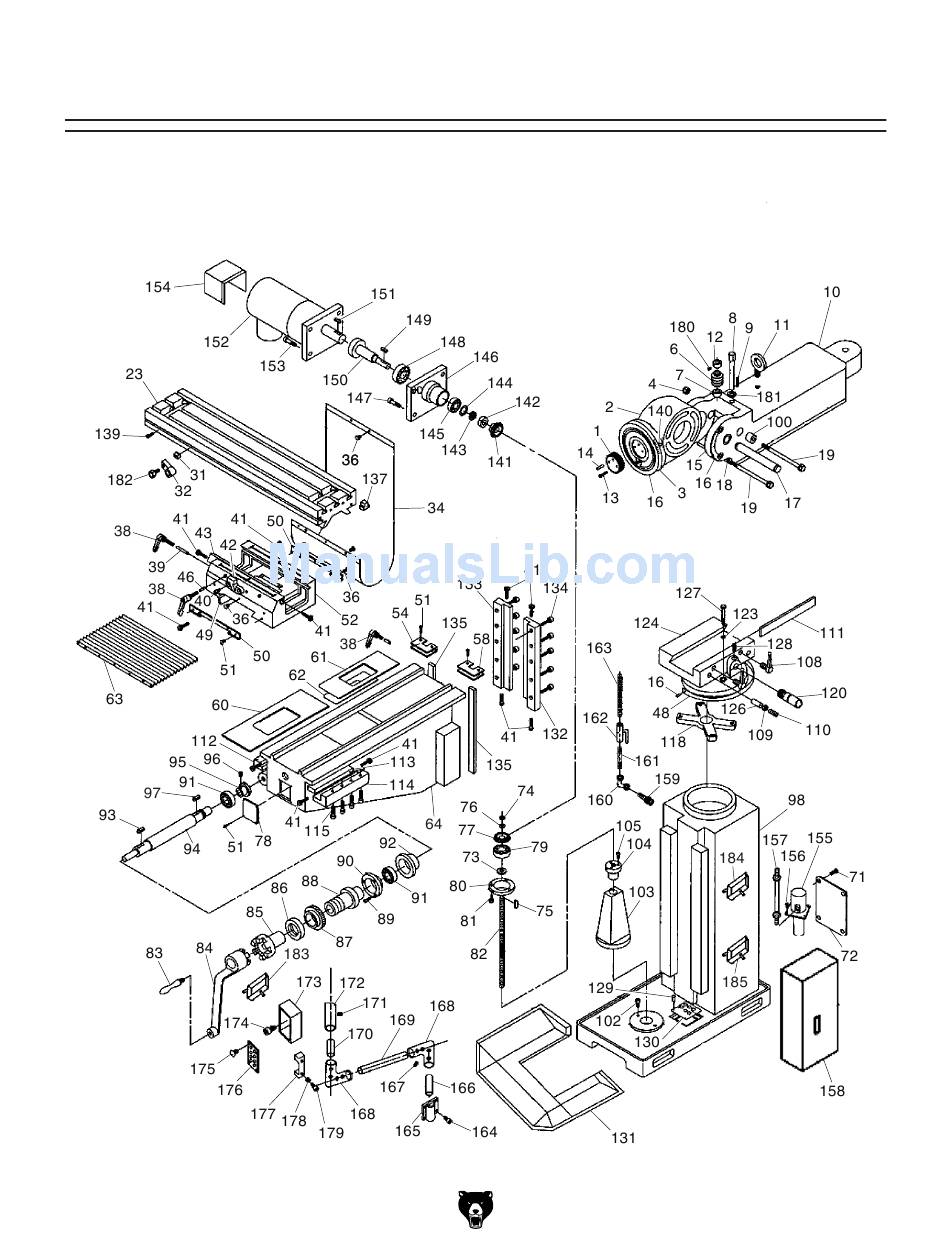

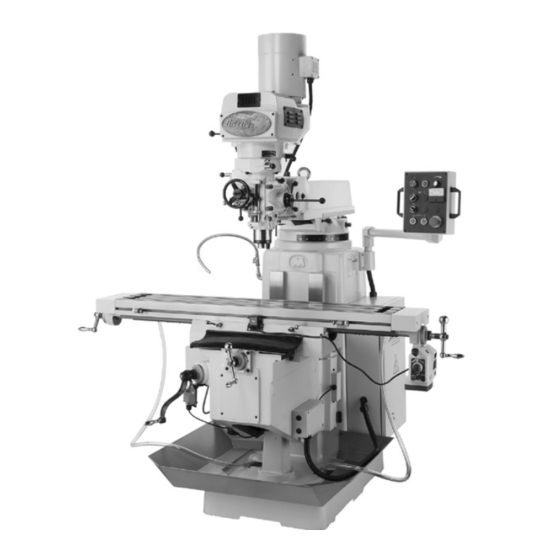

- Page 1 SECtION 9: PARtS base Machine breakdown -58- g0669X precision 10" x 54" Vs Milling Machine...
- Page 2 base Machine Parts List REF PART # DESCRIPTION P0669X001 WORM WASHER P0669X002 RAM ADAPTER P0669X003 ADAPTER SCALE P0669X004 LOCK BOLT HEX NUT P0669X006 WORM P0669X007 COLLAR P0669X008 WORM SHAFT PK36M KEY 5 X 5 X 50 P0669X010 P0669X011 LIFTING EYE BOLT 3/4-10 P0669X012 SPACER PSB13M...
- Page 3 base Machine Parts List REF PART # DESCRIPTION P0669X141 BEVEL GEAR 18T P0669X142 SPACER P0669X143 SPANNER NUT P0669X144 SPANNER LOCK WASHER P6204 BALL BEARING 6204ZZ P0669X146 BEARING BRACKET PSB14M CAP SCREW M8-1.25 X 20 P6206 BALL BEARING 6206ZZ PK48M KEY 4 X 4 X 20 P0669X150 DRIVE SHAFT PK34M...
- Page 4 Drive System breakdown -61- g0669X precision 10" x 54" Vs Milling Machine...
- Page 5 Drive System Parts List REF PART # DESCRIPTION P0669X201 LOWER PULLEY HOUSING PSB02M CAP SCREW M6-1 X 20 P0669X203 GEAR SHAFT PINION P0669X204 DETENT PLATE P0669X205 DETENT PLUNGER P0669X206 COMPRESSION SPRING PSB20M CAP SCREW M5-.8 X 14 P0669X208 PINION BLOCK P0669X209 PINION CRANK P0669X210...
-
Page 6: Head Breakdown
Head breakdown -63- g0669X precision 10" x 54" Vs Milling Machine... - Page 7 REF PART # DESCRIPTION PSB26M CAP SCREW M6-1 X 12 PW03M FLAT WASHER 6MM P0669X303 FEED BEVEL PINION P0669X304 GEAR SHAFT SLEEVE P0669X305 LOCK COLLAR PSS02M SET SCREW M6-1 X 6 P0669X308 FEED GEAR 20T PK103M KEY 3 X 3 X 12 PSB11M CAP SCREW M8-1.25 X 16 PW01M...
- Page 8 REF PART # DESCRIPTION P0669X437 BUSHING P0669X435 ANGULAR BEARING 7207C PSS07M SET SCREW M5-.8 X 5 P0669X443 BUSHING PSS02M SET SCREW M6-1 X 6 P0669X442 QUILL PRP02M ROLL PIN 3 X 16 P0669X445 TRIP LEVER P0669X446 TRIP LEVER PIN P0669X447 INDICATOR ROD P0669X448 QUILL INNER LOCK PLUNGER...
- Page 9 Longitudinal & Cross Slide Leadscrews breakdown & Parts List REF PART # DESCRIPTION PN01 HEX NUT 1/2-20 P0669X502 HANDLE P0669X503 BALL CRANK P0669X504 DIAL LOCK RING P0669X505 GRADUATED DIAL P0669X506 DIAL HOLDER PSB26M CAP SCREW M6-1 X 12 P0669X508 BEARING CAP P6204 BALL BEARING 6204ZZ P0669X510...
- Page 10 One-Shot Oiler breakdown & Parts List REF PART # DESCRIPTION P0669X601 ONE SHOT OILER ASSEMBLY P0669X602 ALUMINUM PIECE 13.5MM P0669X603 OIL REGULATION DISTRIBUTOR P0669X604 OIL REGULATION DISTRIBUTOR P0669X605 FLEXIBLE STEEL TUBE 4 X 550MM P0669X606 ELBOW JOINT P0669X607 ELBOW JOINT Control Panel Electrical Components breakdown &...
- Page 11 Electrical Cabinet breakdown & Parts List REF PART # DESCRIPTION P0669X801 ELECT CABINET SAFETY SWITCH P0669X802 POWER SWITCH KEDU ZH-HD-2 P0669X803 COOLING FAN P0669X804 FREQ DRIVE YASKAWA VS-606V7 P0669X805 RELAY OMRON MY2-110NJ 805-1 P0669X805-1 RELAY SOCKET OMRON PYF-08A P0669X806 FUSE HOLDER GIKOKA 3P30A600V 806-1 P0669X806-1 FUSE 32A GIN-SING 30A600V P0669X807...
- Page 12 Accessories breakdown & Parts List REF PART # DESCRIPTION P0669X901 COOLANT HOSE W/CLAMP P0669X902 TOOL BOX PSDP2 SCREWDRIVER PHILLIPS #2 PSDF2 SCREWDRIVER FLAT #2 P0669X905 HEX WRENCH SET 1.5-10MM g0669X precision 10" x 54" Vs Milling Machine REF PART # DESCRIPTION P0669X906 FREQENCY DRIVE MANUAL...
-
Page 13: Label Placement
MuSt maintain the original location and readability of the labels on the machine. If any label is removed or becomes unreadable, REPLACE that label before using the machine again. Contact Grizzly at (800) 523-4777 or www.grizzly.com to order new labels. -70-...
