ASSEMBLE THE SUB-CHASSIS

Important note :
Carefully lift the acrylic base and drive module assembly straight up so as not to damage the platter's
spindle.

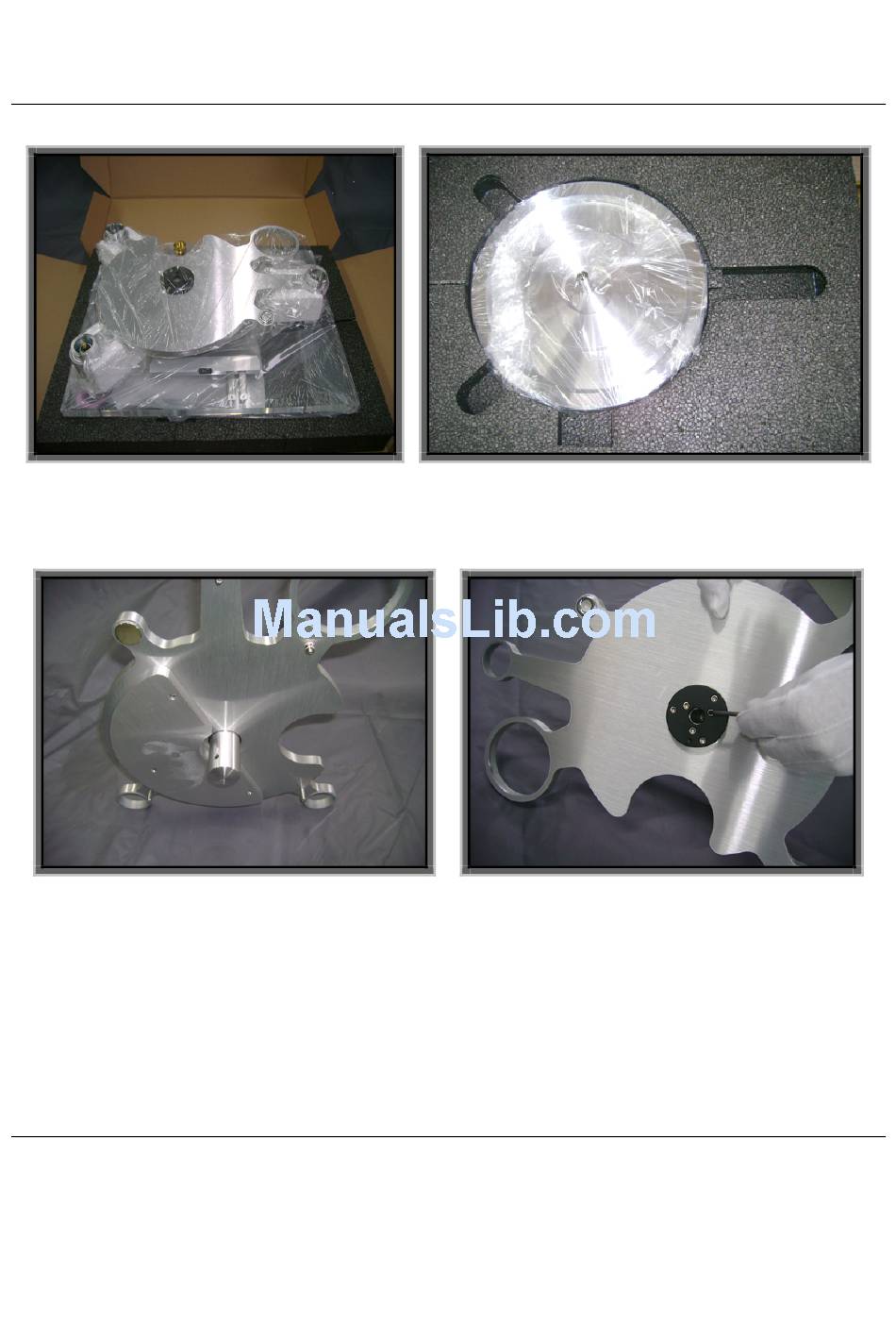

Assembling the spindle holder to the sub-chassis
•
Locate the spindle holder assembly and remove the 3 mounting screws.
•
Retrieve the 9/64
•
Lift the sub-chassis straight up and install the spindle holder from under the sub-chassis (ground lug
side).
Note :
DO NOT FILL THE SPINDLE HOLDER WITH OIL AT THIS TIME

INSTALL THE TONE ARM AND PHONO CARTRIDGE

Precaution – When performing anything near the tonearm and cartridge, we recommend not wearing
loose clothing, ties, sweaters or anything than can catch and damage the cartridge cantiliver.
Install the tone arm following the manufacturer's recommendations.
Notes :
- At this time the MVSS plungers and wheel lock nuts will not be fitted to the sub-chassis.
The platter is located below the acrylic base with the spindle pointing up.
th"
allen key in the tool kit.
Oracle Audio Technologies 6
