To make the front of the dust cover rest higher in the low position, rotate the vertical set screw
counterclockwise.
•
To increase the spring tension to hold the dust cover in the open position rotate the rear set screw
clockwise.
Note :
If the dustcover can not be lifted fully open in its playing area, it is possible to vary the spring tension
of the hinges. The tension has been pre-calibrated on both hinges at the factory to its best performance. The set
screw located vertically in the hinge base is used to limit the closing of the cover. This will allow the adjustement
of the parallel plane of the dust cover. The set screw located at the rear of the hinge will increase or decrease
the spring tension holding the dust cover in the open position. The springs are not designed to hold the dust
cover open in the mid open position.

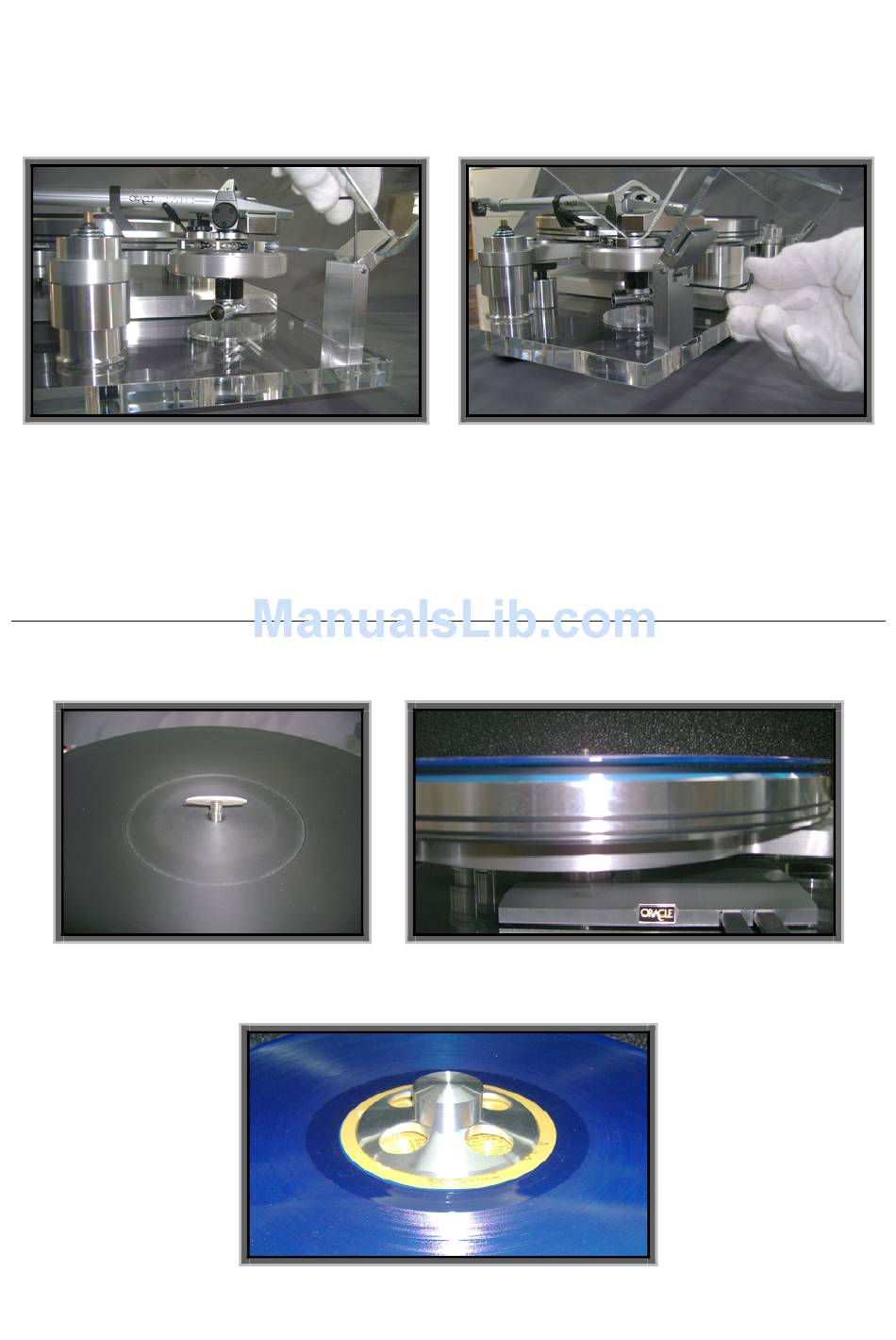

THE RECORD CLAMP AND TAPERED WASHER

•
Position the tapered washer over the spindle on the acrylic mat
•
Place a record over the acylic mat.
•
Retrieve the record clamp from the foam packaging
•
Tighten the clamp so the record is pushed flat against the mat.
