ASSEMBLE THE SUB CHASSIS

Note: Lift the acrylic base straight up so as not to damage the platter's spindle protruding through.
•

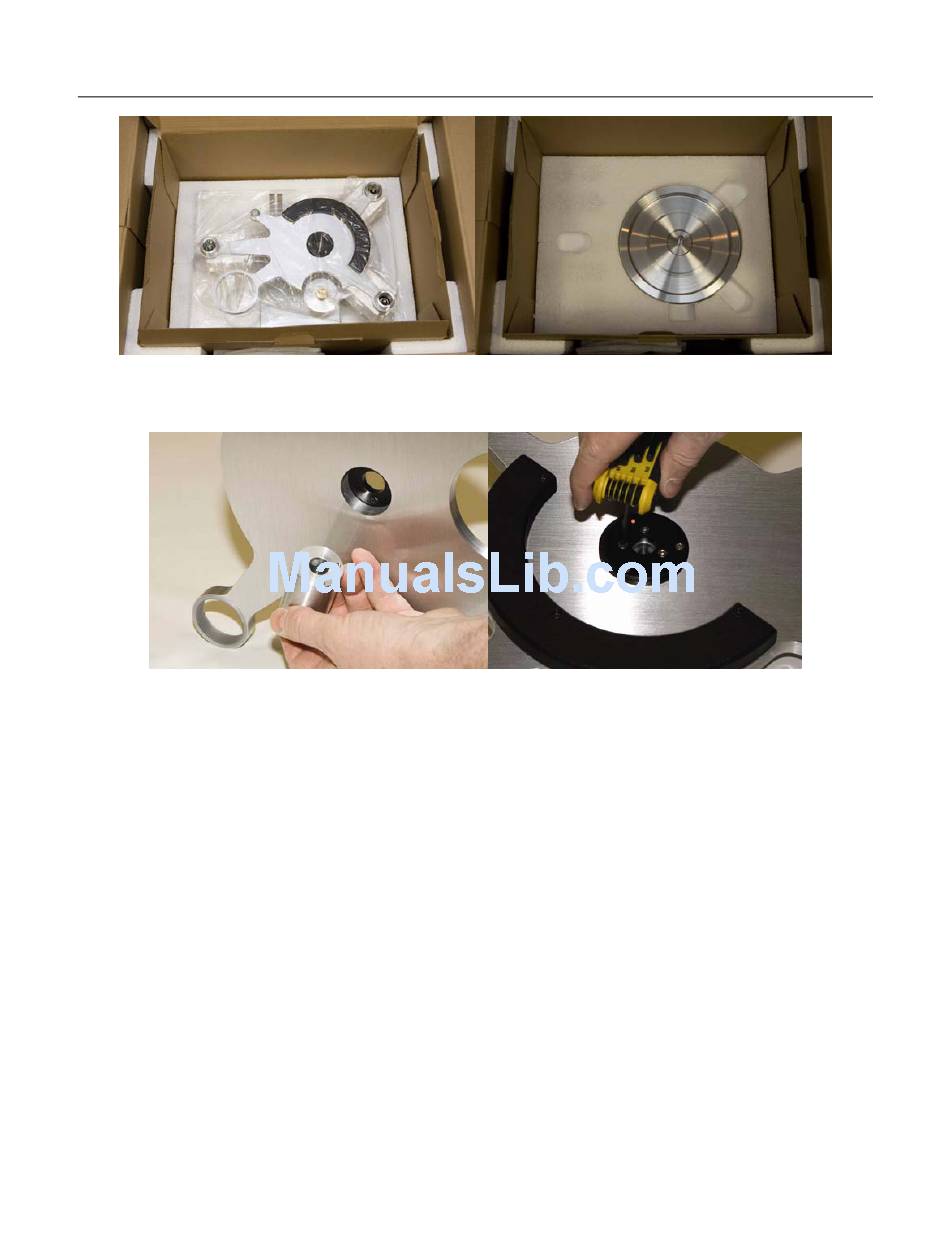

Locate the bearing assembly in the lower section of the packaging. Remove the 3 mounting
screws.
•
Locate the tool kit in the lower section and select the appropriate 9/64
•
Lift the sub chassis straight up and mount the bearing assembly from underneath (ground lug
side). The bearing assembly can only be mounted in one position
Note: The main bearing mounting flange is marked with a red dot. When installed this red dot
must be on the axis of the motor pulley and the platter spindle. Any other positioning will
impair the operation of your Delphi Mk VI.
Oracle Audio Technologies
Delphi MK VI Installation Manual
th"
allen key.
5
