Install The Mvss Plungers - Oracle Audio Delphi Mk VI Owner's Manual

Note:
DO NOT FILL THE RESERVOIRS WITH THE SILICONE FLUID AT THIS TIME. THIS OPERATION
WILL BE CARRIED OUT AFTER THE SUSPENSION TUNING.
INSTALLING THE MVSS PLUNGERS

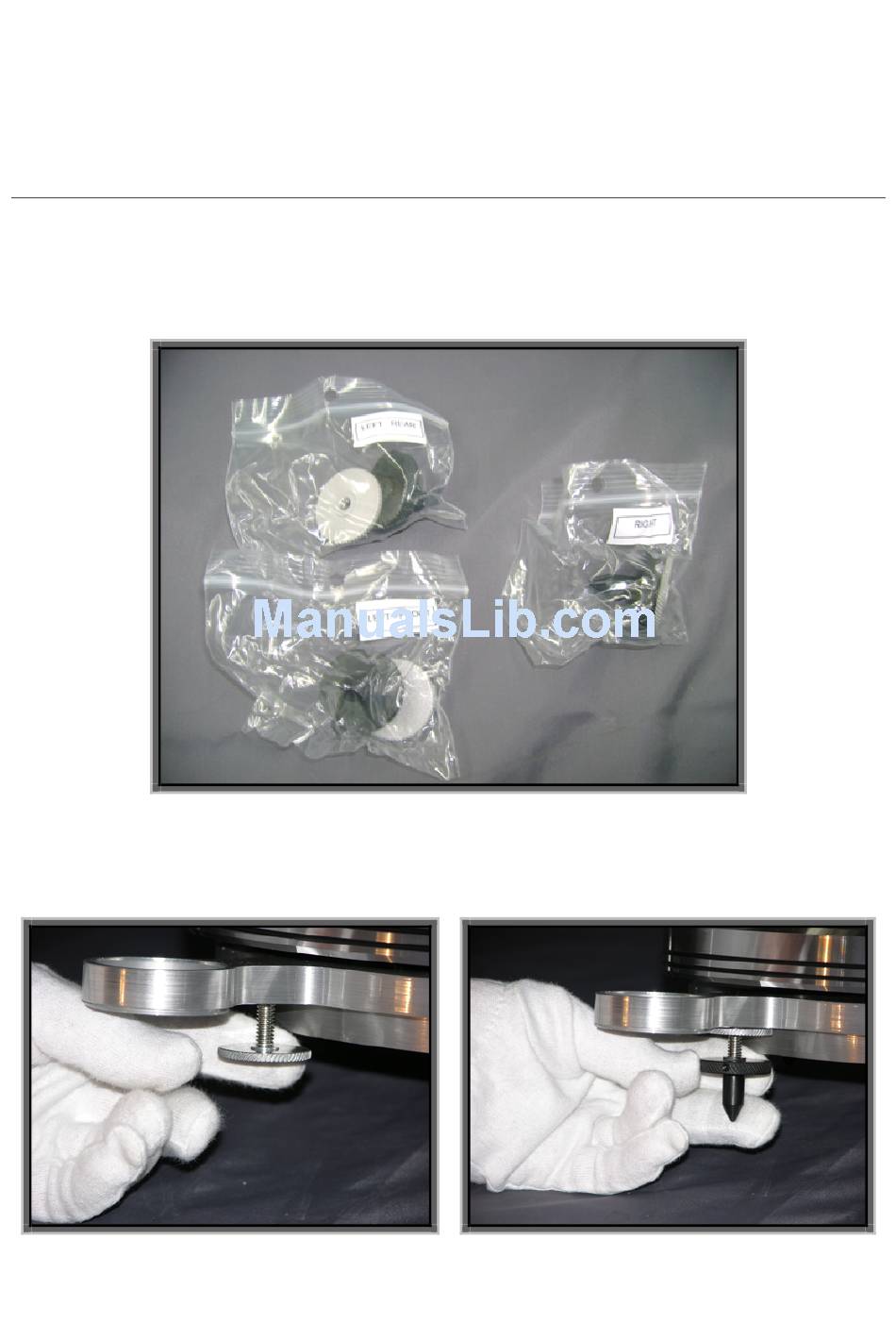

Before you proceed to the mounting of the Micro Vibration Stabilizer System ( MVSS ) make sure to positively
identify where each of them need to be installed. The small plastic bags are identified Front left, Rear left and
Right side. The 3 plungers and 3 wheel lock nuts have been pre-mounted to your sub-chassis at the factory to
allow the drilling of the locator mark ( the indentation with the white spot ). This is why they are marked to be
installed at a specific location on the sub-chassis.
•
Install the plungers and wheel lock nuts on the threaded stems below the sub-chassis making sure the
raised shoulder of the wheel lock nut is installed towards the sub-chassis.
•
Install each threaded plunger at the position indicated on the plastic bag and thread both the wheel lock
nut and the plunger all the way up loosely against the sub-chassis.
