Install The Drive Belt - Oracle Audio Delphi Mk VI Owner's Manual

•

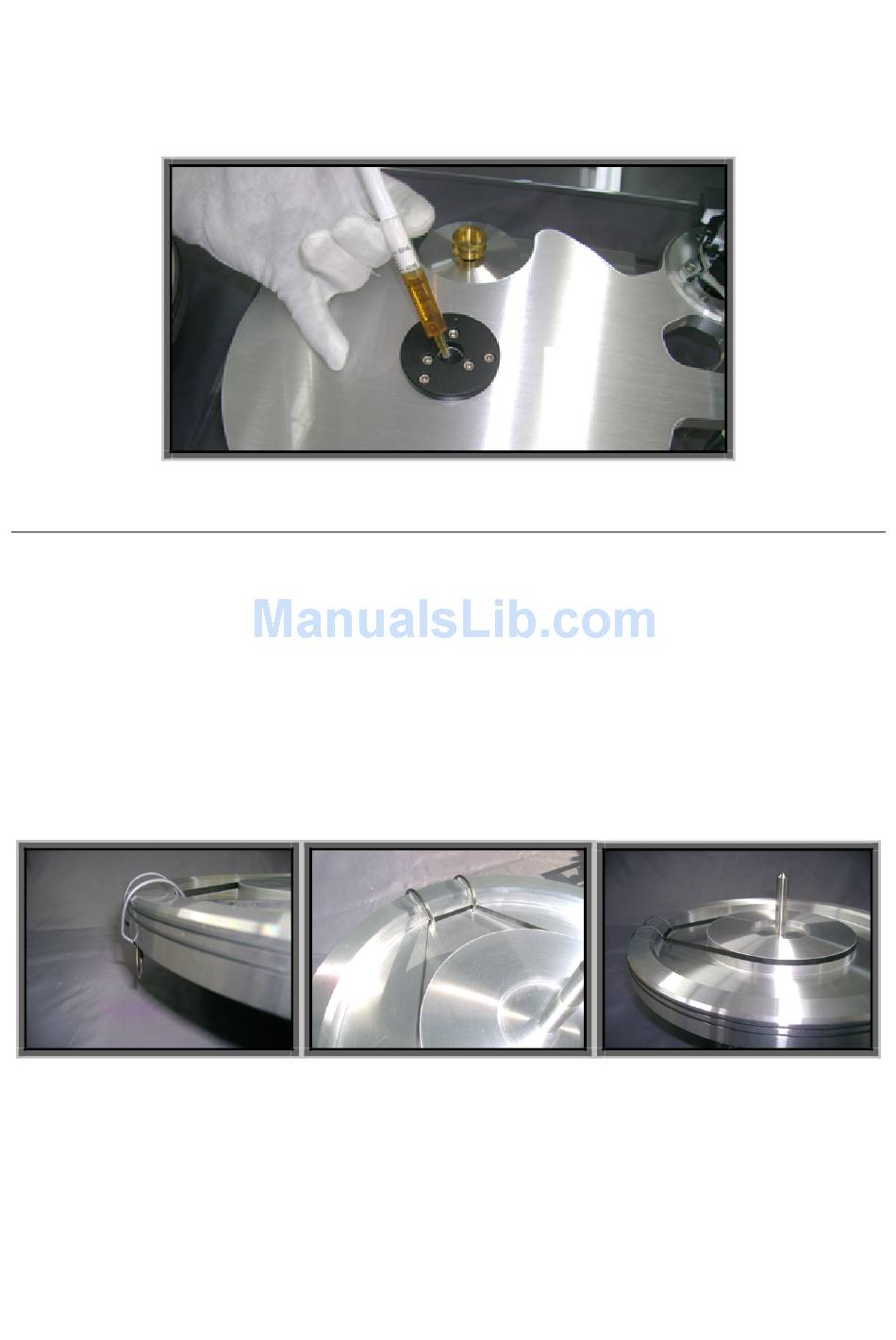

Retrieve the oil syringe and depth gauge from the packaging.
•
Fill the spindle holder with the oil supplied with your Oracle MK VI and use the depth gauge to make
sure the exact amount of oil is used in the spindle holder. The optimal quantity of oil to be added in the
spindle holder is 3cc.

INSTALL THE DRIVE BELT

Drive belt installation tool ...
Note :
To reduce any contamination problem wash your hands prior to handling the drive belt
•
Retrieve the drive belt and the installation tool from the upper section of the foam packaging.
•
Place the platter on your lap with the spindle pointing up.
•
Position the drive belt around the inner hub of the platter.
•
Take the drive belt installation tool and and insert the two ends to catch the drive belt.
•
Pull the tool away from you and flip it around the edge of the platter
•
Run your finger around the inner hub of the platter so it is between the drive belt and the hub and move
the drive belt near the upper edge so it rests at about 3mm ( 1/8 inch ) from the upper edge of the inner
hub.
Explanation ...
If the drive belt remains at the bottom of the platter around the inner hub there will be a
misalignment with the height of the motor pulley. When the platter starts rotating the drive belt will then jump out
of the motor pulley.
•
Bring the platter over the spindle holder, align the drive belt installation tool so the motor pulley falls
between the two legs of the tool.
•
Carefully lower the platter straight down in the spindle holder.
