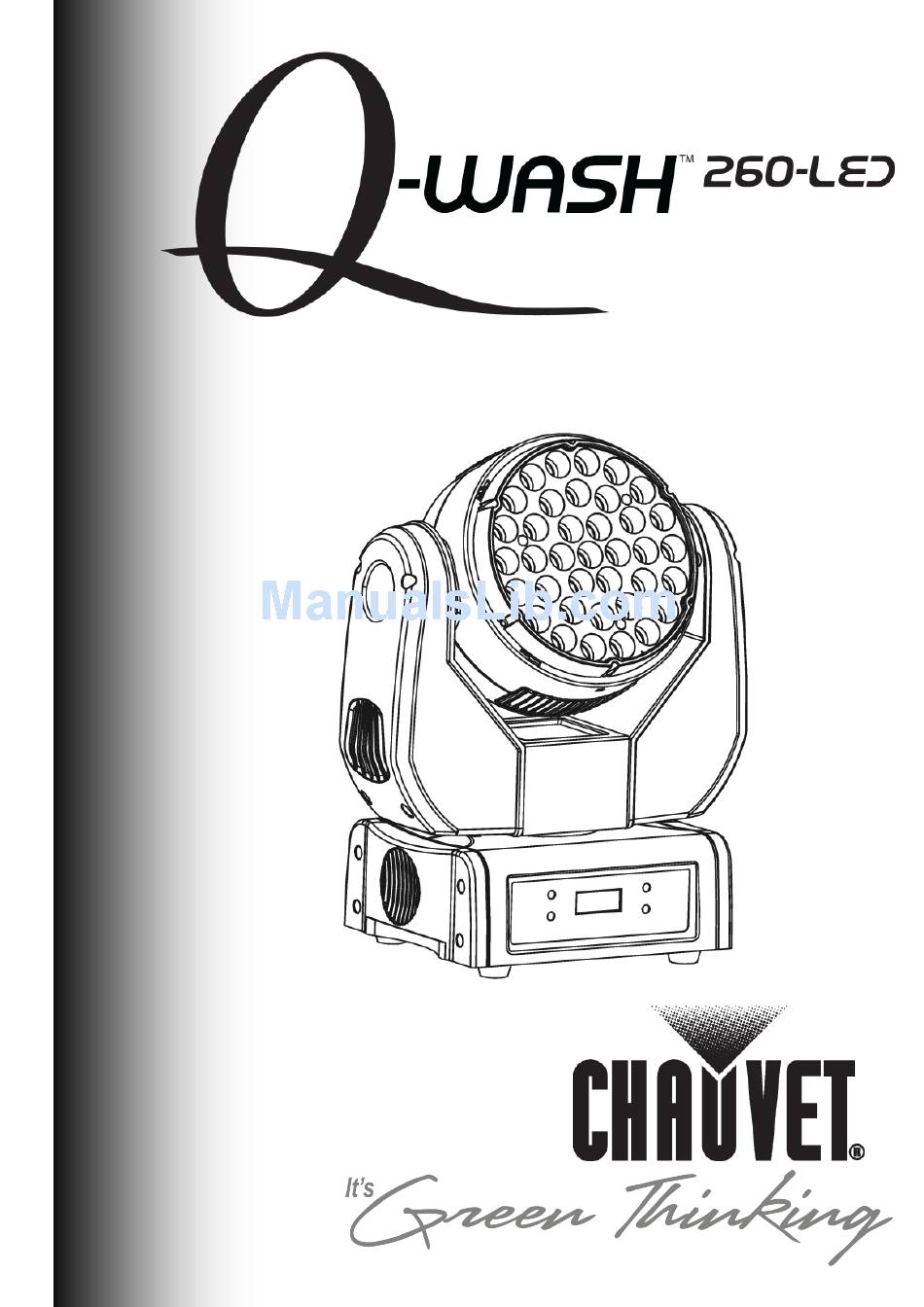

- Page 1 Quick Reference Guide...
-
Page 2: About This Guide
Q-Wash 260-LED QRG About This The Q-Wash 260-LED Quick Reference Guide (QRG) only contains the product’s connection and mounting information, as well as the menu options Guide and the DMX values. This Quick Reference Guide DOES NOT replace the product’s User Manual. - Page 3 Q-Wash 260-LED QRG Features Operating modes: 9-channel: Pan, tilt, red, green, blue, color/macros, dimmer, strobe, control 12-channel: Pan, pan fine, tilt, tilt fine, pan/tilt speed, red, green, blue, color/macros, dimmer, strobe, and control Pan: 540 Tilt: 270 RGB static color mixing with or without DMX control...
- Page 4 Q-Wash 260-LED QRG Product The Q-Wash 260-LED is an RGB LED wash moving head with multiple narrow beams. The product consists of a base and a moving head on a yoke. Description The LEDs are inside ducts, which, along with special optics, provide a very narrow beam angle.
- Page 5 5. Insert the fuse holder back into place and reconnect power. DMX Linking The Q-Wash 260-LED can work with a DMX controller using a regular DMX serial connection. If you are not familiar with the DMX standard, please download the DMX Primer document from www.chauvetlighting.com.
- Page 6 Q-Wash 260-LED QRG Mounting Before mounting this product, read the Safety Notes at the beginning of this guide and on page 2 of the product’s User Manual. Then, follow the mounting procedure indicated in the Setup chapter of the User Manual.
- Page 7 When in EDIT and CALIB modes, <UP> and <DOWN> only change the value of the selected option. To move to the next option press <ENTER> repeatedly. Refer to the Q-Wash 260-LED User Manual for more details. Page 7 of 12...
-
Page 8: Menu Options
Q-Wash 260-LED QRG Menu Options Level Programming Levels Description ADDRESS Selects a starting DMX address 001~512 Resets the product’s custom settings RESET NO/YES Select the fan’s operation mode. HIGH NOTE: Fixture’s controller will force the fan to High if the... -
Page 9: Extra Menu
Q-Wash 260-LED QRG 1st Level Programming Levels Description GREEN Combines red, green, blue, and white to obtain a custom color BLUE DIMMER 000~255 Selects the dimmer value EDIT (Cont.) STROBE Selects the strobe frequency and mode DIMSPEED Selects the dimmer speed... -
Page 10: Dmx Values
Q-Wash 260-LED QRG DMX Values BASIC Channel Function Value Percent/Setting 000 255 0~540º 000 255 0~270º Tilt 000 255 0~100% 000 255 0~100% Green 000 255 0~100% Blue 000 005 No function 006 010 High power 011 ... - Page 11 Q-Wash 260-LED QRG ADVANCED Channel Function Value Percent/Setting 000 255 0~540º 000 255 Fine movement control Pan Fine 000 255 0~270º Tilt 000 255 Fine movement control Tilt Fine 000 255 Fast~Slow Pan/Tilt Speed 000 255 0~100% 000 ...
- Page 12 (954) 929-1115 (Press 4) Email: uktech@chauvetlighting.com Fax: (954) 756-8015 Email: tech@chauvetlighing.com World Wide Web World Wide Web www.chauvetlighting.com www.chauvetlighting.co.uk Q-Wash 260-LED QRG – Rev. 07 © Copyright 2011 CHAUVET® All rights reserved. Printed in the P. R. C. Page 12 of 12...
