4. Getting Started
To restart the image projection:
•
Press PAUSE key
4.10 Quick lens adjustment
Overview
•
Lens Adjustment via Control Buttons on Projector
•
Lens Adjustment via Menu Bar
•
Direct Lens Adjustment (RCU)
4.10.1 Lens Adjustment via Control Buttons on Projector
How to enter the adjustment menu.
1. Press the control button
The lens adjustment menu appears on the screen, requesting for ZOOM/FOCUS alignment.
2. Press button
(B) to toggle between ZOOM/FOCUS and Vert. Hor. SHIFT menu.
Note: For the alignment, a lens adjustment test pattern can be activated: toggle control button
the lens adjustment test pattern.
3. Press the corresponding arrows (A1) or (A2) on the adjust button, as indicated in front of the menu items, for alignment.
4. Press control button
1
A2
A1
D

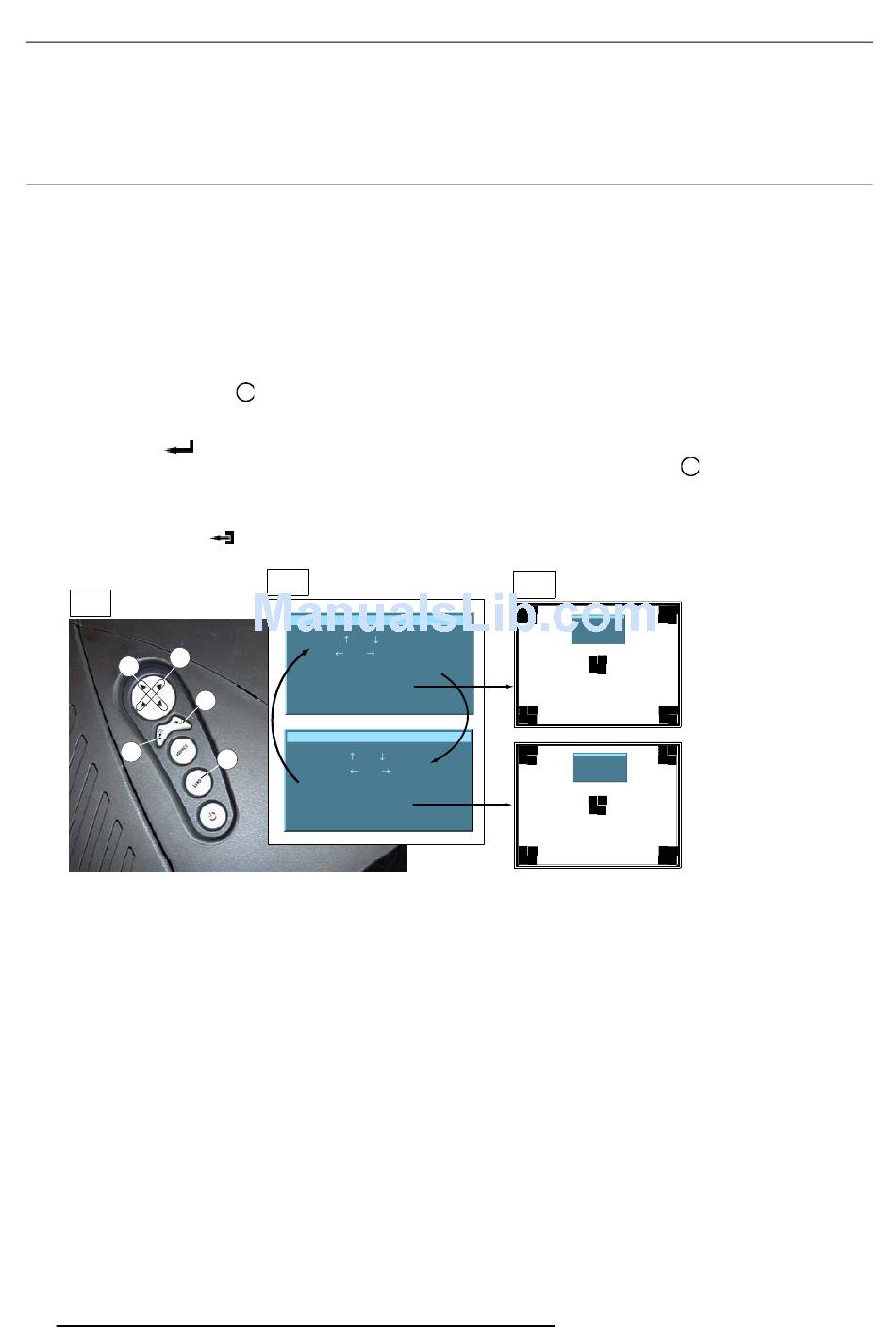

Image 4-12
Lens Adjustment
1
Button panel on projector
2
Menu Zoom/Focus and Vertical & Horizontal shift
3
Same menus inserted in lens adjustment test pattern
4.10.2 Lens Adjustment via Menu Bar
How to enter the adjustment menu.
1. Press the MENU button (A) on the Remote Control.
The menu bar (1) appears on top of the image. (image 4-13)
2. Press → (A1) on adjust button to select menu item Installation.
A text box appears with the first item Lens adjustment selected (reversed text)
3. Press ENTER button (B) to activate the lens adjustment menu (2).
The lens adjustment menu appears on the screen, requesting for ZOOM/FOCUS alignment.
4. Press ENTER button (B) to toggle between ZOOM/FOCUS and Vert. Hor. SHIFT menu (2).
Note: For the alignment, a lens adjustment test pattern can be activated: toggle button (C) to activate or deactivate the lens
adjustment test pattern (3).
5. Press the corresponding arrows (A1) or (A2) on the adjust button, as indicated in front of the menu items, for alignment.
44
Lens
(C).
(D) to leave the lens adjustment menu. (image 4-12)
2
Lens adjustment
Use
and
Use
and
Press <enter> for ZOOM/FOCUS
Press <LOGO> or <LENS>
B
for test pattern
Lens adjustment
C
Use
and
Use
and
Press <enter> for SHIFT mode
Press <LOGO> or <LENS>
for test pattern
3
for vertical shift
for horizontal shift
for zoom
for focus
Lens
(C) to activate or deactivate
Lens adjustment
Use
and
for vertical shift
Use
and
for horizontal shift
Press <enter> for ZOOM/FOCUS
Press <LOGO> or <LENS>
for test pattern
Lens adjustment
Use
and
for zoom
Use
and
for focus
Press <enter> for SHIFT mode
Press <LOGO> or <LENS>
for test pattern
R5976816 RLM R6+ PERFORMER 21/12/2005
