Summary of Contents for EnGenius EOA3630

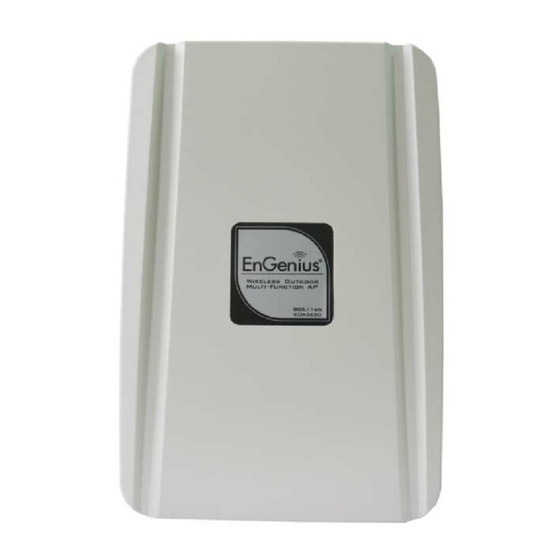

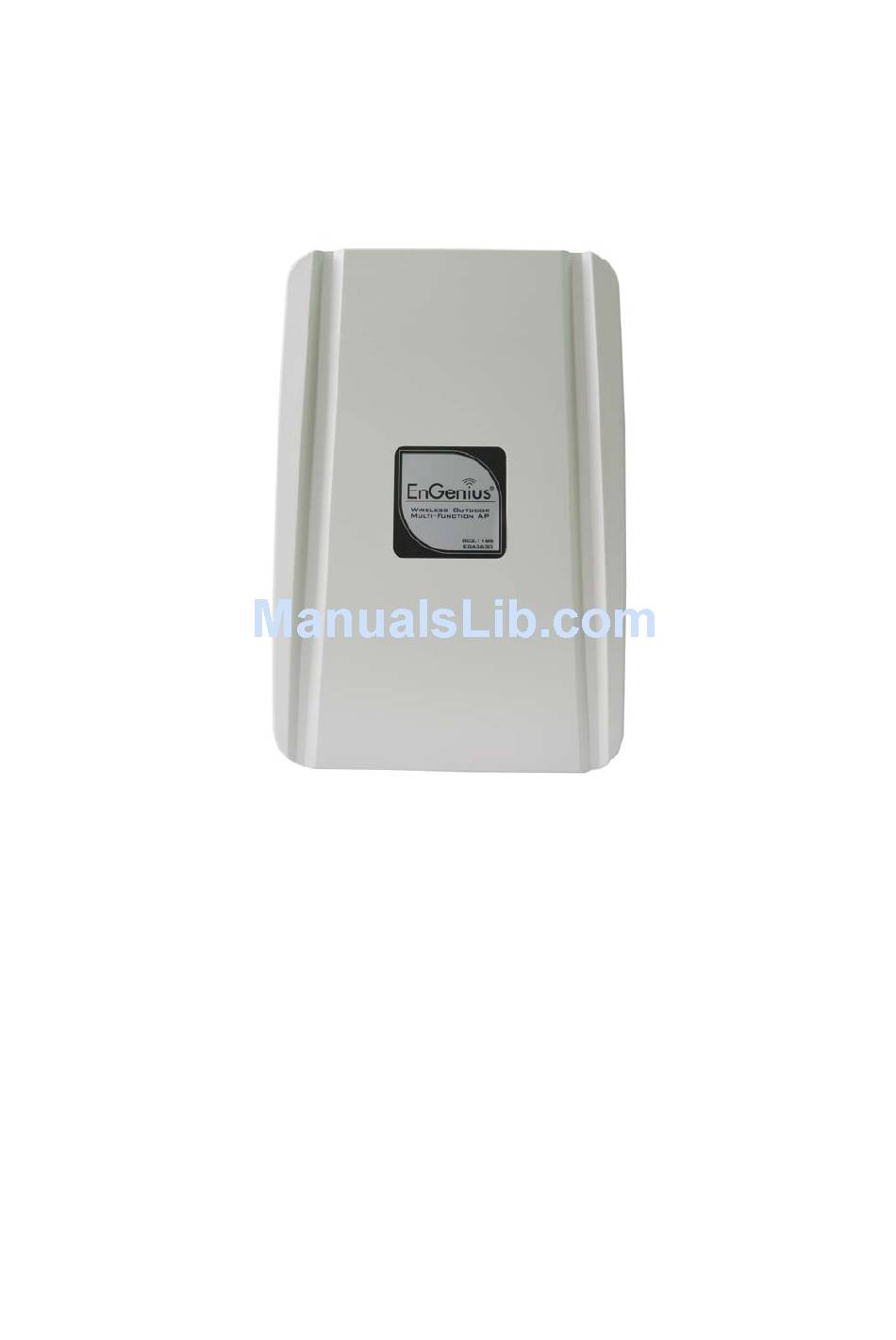

- Page 1 11b/g Long Range Multi‐Function AP EOA3630 User’s Manual Version : 1.0 ...
-
Page 2: Table Of Contents
................................. 5 ACKAGE ONTENTS ..............................5 YSTEM EQUIREMENT ..............................6 ARDWARE VERVIEW 2 EOA3630 MULTI‐FUNCTION INSTRUCTION GUIDE ......................7 ................................. 7 CCESS OINT ..........................7 CCESS OINT WITH UNCTION ................................8 ... - Page 3 ..............................30 IRELESS ILTER ..............................31 INK ETTINGS 5 LAN SETUP ..................................32 .................................. 32 ETTINGS ............................... 33 PANNING REE ETTINGS 6 ROUTER SETTINGS ................................34 ................................34 ETTINGS ...
-
Page 4: Product Overview
1 Product Overview Thank you for using EOA3630. It is a powerful, enhanced, enterprise scale product with 7 multi‐functions Access Point, Access Point with WDS function, Client Bridge, WDS Bridge, Repeater, AP Router and Client Router. EOA3630 is easily to install almost anywhere by wall mount kit and also support Power over Ethernet for quick outdoor installation. External N‐type antenna provides better wireless signal quality and the antenna is upgradeable. EOA3630 can manage power level control, Narrow bandwidth selection, Traffic shaping and Real‐time RSSI indicator. EOA3630 is fully support of security encryption including WI‐Fi Protected ... -
Page 5: Benefits
Fully Interoperable with IEEE 802.11b/IEEE 802.11g compliant Compliant devices Watertight and Avoid water invaded and weather corroded for outdoor environment Weatherproof Wall mount and mast Building on Outdoor environment easily. mounting kit support Detachable antenna Collocate with any antenna for user’s environment support (N‐Type) 7 Multi‐Function Users can use different mode in various environment Point‐to‐point, Point‐to‐multipoint Let users transfer data between two buildings or multiple buildings Wireless Connectivity Channel Bandwidth Using different bandwidth to reach varied distance Selection Support RSSI Indicator Users can select the best signal to connect with AP easily (CB mode) Flexible Access Point locations and cost savings. EOA3630 must uses Power‐over‐Ethernet the adapter provided in the package. Support Multi‐SSID Allow clients to access different networks through a single access function (4 SSID) in AP point and assign different policies and functions for each SSID by mode manager WPA2/WPA/ WEP/ IEEE Fully support all types of security types. 802.1x support MAC address filtering in Ensures secure network connection AP mode ... -
Page 6: Package Contents
SNMP Remote Help administrators to remotely configure or manage the Access Configuration Point easily. Management QoS (WMM) support Enhance user performance and density High Speed Data Rate Up Capable of handling heavy data payloads such as MPEG video to 108Mbps streaming 1.3 Package Contents Open the package carefully, and make sure that none of the items listed below are missing. Do not discard the packing materials, in case of return; the unit must be shipped in its original package. 1* Wireless Long Range Multi‐Function AP (EOA3630) 1* 24V/0.6A Power Adapter 1* Mounting kit 1* QIG 1* CD (User Manual) 1* 5dBi 2.4GHz Dipole Antennas Auction: Using other Power Adapter than the one included with EOA3630 may cause damage of the device. 1.4 System Requirement The following conditions are the minimum system requirement. A computer with an Ethernet interface and operating under Windows XP, Vista, 7 or Linux. Internet Browser that supports HTTP and JavaScript. ... -
Page 7: Hardware Overview
1.5 Hardware Overview MCU Atheros SoC, 180MHz Memory 32MB SDRAM Flash 8MB Physical Interface ‐ LAN: One 10/100 Fast Ethernet RJ‐45 ‐ Reset Button LEDs Status 1 x Power/ Status 1 x LAN (10/100Mbps) 1 x WLAN (Wireless is up) 3 x Link Quality (Client Bridge mode) • Green: Good Quality • Yellow: Marginally Acceptable Quality • Red: Bad Quality Power Requirements Active Ethernet (Power over Ethernet) 24V / 0.6A Regulation Certifications FCC Part 15 / UL, ETSI 300 / 328 / CE ... -
Page 8: Eoa3630 Multi-Function Instruction Guide
2 EOA3630 Multi‐Function Instruction Guide 2.1 Access Point In the Access Point Mode with WDS Function, EOA3630 function likes a central connection for any stations or clients that support IEEE 802.11b/g and SuperG network. Stations and Client must configure the same SSID and Security Password to associate within the range. EOA3630 supports 4 different SSIDs to separate different clients at the same time. 2.2 Access Point with WDS Function EOA3630 also supports WDS function in Access Point Mode without losing AP’s capabilities. Configure others Access Point’s Wireless MAC Address in both Access Point devices to enlarge the wireless area by enabling WDS Link Settings. WDS function can support up to 8 different AP’s MAC addresses. Auction: Not every Access Point device has support WDS in Access Point Mode. It is recommended using EOA3630 if you would like to use this service. ... -
Page 9: Client Bridge
2.3 Client Bridge In the Client Bridge Mode, the EOA3630 function likes a wireless dongle. Connected to an Access Point wirelessly and surf internet whenever you want. Using Site Survey to scan all the Access Point within the range and configure its SSID and Security Password to associate with it. Connect you station to the LAN port of the EOA3630 via Ethernet. 2.4 WDS Bridge In the WDS Bridge Mode, the EOA3630 can wirelessly connect different LANs by just simply configure each other’s MAC Address and Security Settings. This mode is used when two wired LANs locate in small distance and want to communicate each other. The best solution is using EOA3630 wirelessly connect two wired LANs. WDS Bridge Mode can establish 16 WDS links, the connection diagram is like a Star. Auction: WDS Bridge Mode is not function like Access Point. APs linked by WDS are using the same frequency channel, more APs connected together may lower throughput. Please be aware to avoid loop connection diagram, otherwise enable Spanning Tree Function. ... -
Page 10: Repeater
2.5 Repeater In the Repeater Mode, the EOA3630 can extend the wireless coverage area of another Access Point or Wireless Router. Access Point or Wireless Router must within the range and EOA3630 must use the same SSID, Security Password and Channel. 2.6 AP Router In the AP Router Mode, the EOA3630 has DHCP server build inside that allows you to configure easily via wireless. AP Router Mode can also support four different SSIDs. Use wireless device to associate with EOA3630, connect an Ethernet through the WAN port. You can surf internet whenever you want ... -
Page 11: Client Router
2.7 Client Router In the Client Router Mode, the EOA3630 has DHCP Server build inside that allows many LANs automatically generate an IP address to share the same Internet. Connect an AP/WISP Wirelessly and connect to LANs via wired. Client Router Mode is act completely opposite to the AP Router Mode. ... -
Page 12: Computer Configuration Instruction
3 Computer Configuration Instruction 3.1 Assign a Static IP In order to configure EOA3630, please follow the instruction below: 1. In the Control Panel, double click Network Connections and then double click on the connection of your Network Interface Card (NIC). You will then see the following screen. 2. Select Internet Protocol (TCP/IP) and then click on the Properties button. This will allow you to configure the TCP/IP settings of your PC/Notebook 3. Select Obtain an IP Address automatically radio button and then enter the IP address and subnet mask. Ensure that the IP address and subnet mask are on the same subnet as the device. 4. Click on the OK button to close this window, and then close LAN properties window. Auction: IP Address entered in the TCP/IP Properties needs to be at the same subnet of the EOA3630 IP Address. For example: EOA3630’s default IP Address is 192.168.1.1 so the IP Address in the TCP/IP settings could be 192.168.1.10. ... -
Page 13: Logging Method
3.2 Logging Method After complete the IP settings from last section, you can now access the web‐based configuration menu. 1. Open web browser 2. Enter IP 192.168.1.1 into you address filter. Auction: If you have changed the EOA3630 LAN IP address, make sure you enter the correct IP Address. 3. After connected to the EOA3630 successfully, browser will pop out a Windows Security window. Please enter the correct Username and Password. 4. The default Username and Password are both admin. Auction: If you have changed the Username and Password, please enter your own Username and Password. ... -
Page 14: Wireless Configuration
4 Wireless Configuration 4.1 Switching Operation Mode The EOA3630 supports 6 different operation modes: Access Point, Client Bridge, WDS Bridge, Repeater, AP Router, and Client Router. Click System Properties under System Section to begin. . Device Name: Specify a name for the device, but it is not the broadcast SSID. Country/Region: Select a Country/Region to conform local regulation. Operation Mode: Select an operation mode via Radio Button. Click Apply to save the changed. Note: If you would like to use Access Point with WDS Function mode, please select Access Point Mode and then enable WDS Link Settings function. ... -
Page 15: Wireless Settings
4.2 Wireless Settings 4.2.1 Access Point Mode Wireless Mode Select the desired 802.11 standard modes or SuperG mode. There are four different modes and they are 802.11b, 802.11g Only, 802.11 b/g mixed and SuperG. Channel / Frequency The channel availability is based on the country’s regulation. Auto Place a Check to enable Auto channel selection. AP Detection AP Detection can help to select a best channel by scan nearby area. Current Profile Configure up to four different SSIDs, it can help to divide group of clients to access the network. Press Edit to configure the profile and place a Check to enable extra SSID. Profile Isolation Restricted Client to communicate with different VID by Selecting the Radio button. Auction: SuperG is a special feature in EOA3630. If the client does not support SuperG, it cannot establish a wireless connection successfully. ... - Page 16 SSID Specify the SSID for current profile. VLAN ID Specify the VLAN tag for current profile. Suppressed SSID Place a Check to hide the SSID. Client will not be able to see the broadcast SSID in Site Survey. Station Separation Select the Radio Button to allow / deny client to communicate each other. Wireless Security Please refer to the Wireless Security section. Save / Cancel Press Save to save the changes or Cancel to return previous settings. ...
-
Page 17: Client Bridge Mode
4.2.2 Client Bridge Mode Wireless Mode Select the desired 802.11 standard modes or SuperG mode. There are four different modes and they are 802.11b, 802.11g Only, 802.11 b/g mixed and SuperG. SSID Specify the SSID if known. SSID text box will be automatically fill in when select an AP in the Site Survey. Site Survey Using Site Survey to scan nearby APs and then select the AP to establish the connection. Prefer BSSID Specify the MAC address if known. Prefer BSSID text box will be automatically fill in when select an AP in the Site Survey. WDS Client Place a Radio button to Enable / Disable WDS Client. Apply / Cancel Press Apply to apply the changes or Cancel to return previous settings. Profile After Site Survey, webpage will display all nearby area’s Access Point. Click the BSSID if you would like to connect with it. Wireless Security Please refer to the Wireless Security section. ... -
Page 18: Wds Bridge Mode
Refresh Press Refresh to scan again. Auction: If the Access Point is suppressed its own SSID, SSID section will be blank, the SSID must be filled in manually. 4.2.3 WDS Bridge Mode Wireless Mode Select the desired 802.11 standard modes or SuperG mode. There are four different modes and they are 802.11b, 802.11g Only, 802.11 b/g mixed and SuperG. Channel / Frequency The channel availability is based on the country’s regulation. Apply / Cancel Press Apply to apply the changes or Cancel to return previous settings. MAC Address Enter the Access Point’s MAC address that you would like to extend the wireless area into the MAC address filter. Mode Select Disable or Enable from the drop down list. Apply / Cancel Press Apply to apply the changes or Cancel to return previous settings. Auction: The Access Point that you would like to extend the wireless area must enter your Access Point’s MAC address. Not all Access Point supports this feature. ... -
Page 19: Repeater Mode
4.2.4 Repeater Mode Wireless Mode Select the desired 802.11 standard modes or SuperG mode. There are four different modes and they are 802.11g Only, 802.11 b/g mixed and SuperG. SSID Specify the SSID if known. SSID text box will be automatically fill in when select an AP in the Site Survey. Site Survey Using Site Survey to scan nearby APs and then select the AP to establish the connection. Prefer BSSID Specify the MAC address if known. Prefer BSSID text box will be automatically fill in when select an AP in the Site Survey. WDS Client Place a Radio button to Enable / Disable WDS Client. Apply / Cancel Press Apply to apply the changes or Cancel to return previous settings. Profile After Site Survey, webpage will display all nearby area’s Access Point. Click the BSSID if you would like to connect with it. Wireless Security Please refer to the Wireless Security section. ... -
Page 20: Ap Router Mode
Refresh Press Refresh to scan again. Auction: If the Access Point is suppressed its own SSID, SSID section will be blank, the SSID must be filled in manually. 4.2.5 AP Router Mode Wireless Mode Select the desired 802.11 standard modes or SuperG mode. There are four different modes and they are 802.11b, 802.11g Only, 802.11 b/g mixed and SuperG. Channel / Frequency The channel availability is based on the country’s regulation. Auto Place a Check to enable Auto channel selection. AP Detection AP Detection can help to select a best channel by scan nearby area. Current Profile Configure up to four different SSIDs, it can help to divide group of clients to access the network. Press Edit to configure the profile and place a Check to enable extra SSID. Profile Isolation Restricted Client to communicate with different VID by Selecting the Radio button. ... - Page 21 Auction: SuperG is a special feature in EOA3630. If the client does not support SuperG, it cannot establish a wireless connection successfully. SSID Specify the SSID for current profile. VLAN ID Specify the VLAN tag for current profile. Suppressed SSID Place a Check to hide the SSID. Client will not be able to see the broadcast SSID in Site Survey. Station Separation Select the Radio Button to allow / deny client to communicate each other. Wireless Security Please refer to the Wireless Security section. Save / Cancel Press Save to save the changes or Cancel to return previous settings. ...
-
Page 22: Client Router Mode
4.2.6 Client Router Mode Wireless Mode Select the desired 802.11 standard modes or SuperG mode. There are four different modes and they are 802.11b, 802.11g Only, 802.11 b/g mixed and SuperG. SSID Specify the SSID if known. SSID text box will be automatically fill in when select an AP in the Site Survey. Site Survey Using Site Survey to scan nearby APs and then select the AP to establish the connection. Prefer BSSID Specify the MAC address if known. Prefer BSSID text box will be automatically fill in when select an AP in the Site Survey. WDS Client Place a Radio button to Enable / Disable WDS Client. Apply / Cancel Press Apply to apply the changes or Cancel to return previous settings. Profile After Site Survey, webpage will display all nearby area’s Access Point. Click the BSSID if you would like to connect with it. Wireless Security Please refer to the Wireless Security section. ... -
Page 23: Wireless Security Settings
Refresh Press Refresh to scan again. Auction: If the Access Point is suppressed its own SSID, SSID section will be blank, the SSID must be filled in manually. 4.3 Wireless Security Settings Wireless Security Settings section will guide you to the entire Security modes configuration: WEP, WPA‐PSK, WPA2‐PSK, WPA‐PSK Mixed, WPA, WPA2, and WPA Mixed. We strongly recommend that uses WPA2‐PSK as your security settings. 4.3.1 WEP Security Mode Select WEP from the drop down list to begin the configuration. Auth Type Select Auth Type in Open System or Shared. Input Type Select Input Type in Hex or ASCII. Key Length Select Key Length in 64/128/152 bit password length. Default Key Select the default index key for wireless security. Key1 Specify password for security key index No.1. Key2 Specify password for security key index No.2. Key3 Specify password for security key index No.3. Key4 Specify password for security key index No.4. ... -
Page 24: Wpa-Psk
4.3.2 WPA‐PSK Security Mode Select WPA‐PSK from the drop down list to begin the configuration. Encryption Select Auto, TKIP or AES for Encryption type. Passphrase Specify the security password. Group Key Update Specify Group Key Update Interval time. Interval Group Key Update Specify Group Key Update Timeout time. Timeout Pairwise Key Update Specify Pairwise Key Update Timeout time. Interval 4.3.3 WPA2‐PSK Security Mode Select WPA2‐PSK from the drop down list to begin the configuration. Encryption Select Auto, TKIP or AES for Encryption type. ... -
Page 25: Wpa-Psk Mixed
Passphrase Specify the security password. Group Key Update Specify Group Key Update Interval time. Interval Group Key Update Specify Group Key Update Timeout time. Timeout Pairwise Key Update Specify Pairwise Key Update Timeout time. Interval 4.3.4 WPA‐PSK Mixed Security Mode Select WPA‐PSK Mixed from the drop down list to begin the configuration. Encryption Select Auto, TKIP or AES for Encryption type. Passphrase Specify the security password. Group Key Update Specify Group Key Update Interval time. Interval Group Key Update Specify Group Key Update Timeout time. Timeout Pairwise Key Update Specify Pairwise Key Update Timeout time. Interval Auction: WPA‐PSK Mixed means it allow both WPA‐PSK and WPA2‐PSK security types to establish wireless connection. ... -
Page 26: Wpa
4.3.5 WPA Security Mode Select WPA from the drop down list to begin the configuration. Encryption Select Auto, TKIP or AES for Encryption type. Radius Server Specify Radius Server IP Address. Radius Port Specify Radius Port number, the default port is 1812. Radius Secret Specify Radius Secret that is given by the Radius Server. Group Key Update Specify Group Key Update Interval time. Interval Group Key Update Specify Group Key Update Timeout time. Timeout Pairwise Key Update Specify Pairwise Key Update Timeout time. Interval Radius Accounting Select Enable or Disable Radius Accounting. The detail of Radius Accounting is at next section. ... -
Page 27: Wpa2
4.3.6 WPA2 Security Mode Select WPA2 from the drop down list to begin the configuration. Encryption Select Auto, TKIP or AES for Encryption type. Radius Server Specify Radius Server IP Address. Radius Port Specify Radius Port number, the default port is 1812. Radius Secret Specify Radius Secret that is given by the Radius Server. Group Key Update Specify Group Key Update Interval time. Interval Group Key Update Specify Group Key Update Timeout time. Timeout Pairwise Key Update Specify Pairwise Key Update Timeout time. Interval Radius Accounting Select Enable or Disable Radius Accounting. The detail of Radius Accounting is at next section. ... -
Page 28: Wpa Mixed
4.3.7 WPA Mixed Security Mode Select WPA Mixed from the drop down list to begin the configuration. Encryption Select Auto, TKIP or AES for Encryption type. Radius Server Specify Radius Server IP Address. Radius Port Specify Radius Port number, the default port is 1812. Radius Secret Specify Radius Secret that is given by the Radius Server. Group Key Update Specify Group Key Update Interval time. Interval Group Key Update Specify Group Key Update Timeout time. Timeout Pairwise Key Update Specify Pairwise Key Update Timeout time. Interval Radius Accounting Select Enable or Disable Radius Accounting. The detail of Radius Accounting is at next section. Auction: WPA Mixed means it allow both WPA and WPA2 security types to establish wireless connection. ... -
Page 29: Radius Accounting
4.3.8 Radius Accounting Radius Accounting Select Enable to begin configuration of Radius Accounting. Radius Accounting Server Specify Radius Accounting Server IP. Radius Accounting Port Specify Radius Accounting Server IP. The default port is 1813. Radius Accounting Secret Specify Radius Accounting Server Secret that is given by the Radius Accounting Server. Radius Accounting Specify Radius Accounting Interval for updating information. Interval ... -
Page 30: Wireless Advanced Settings
4.4 Wireless Advanced Settings Data Rate Select Data Rate from the drop down list. Transmit Power Select Transmit Power to increase or decrease Transmit Power. Fragment Length Specify package size during transmission. This value changed only when you experienced high error rate. RTS/CTS Threshold Specify Threshold package size for RTC/CTS. Protection Mode Select Disable or Enable Protection Mode. WMM Select Disable or Enable WMM function. WMM is based on the four Access Categories: voice, video, best effort and background. WMM function is not used to guarantee transmission speed. Channel Bandwidth Select Channel Bandwidth from the drop down list. Decrease channel bandwidth may cause lower throughput but less collision. Distance Specify distance rage between AP and Clients. Longer distance may lose high connection speed. Wireless Traffic Shaping Place a Check to enable Wireless Traffic Shaping function. Incoming Traffic Limit Specify the wireless transmission speed for downloading. Outgoing Traffic Limit Specify the wireless transmission speed for uploading. ... -
Page 31: Wireless Mac Filter
Auction: Changing Wireless Advanced Settings may cause insufficient wireless connection quality. Please remain all settings as default unless you have acknowledged all changing that you have made. 4.5 Wireless MAC Filter Wireless MAC Filters is used to Allow or Deny wireless clients, by their MAC addresses, accessing the Network. You can manually add a MAC address to restrict the permission to access EOA3630. The default setting is Disable Wireless MAC Filters. 0. ACL Mode ACL Mode can help to deny or allow certain Client to access the network. Select Disable, Deny MAC in the list or Allow MAC in the list from the drop down list. MAC Address Filter Specify the MAC address manually. Add Press Add to add the MAC address in the table. Apply Press Apply to apply the changes. ... -
Page 32: Wds Link Settings
4.6 WDS Link Settings WDS Link Settings is used to establish a connection between Access Points but the device is not losing Access Point function. AP has WDS function can extend the wireless coverage and allow LANs to communicate each other. MAC Address Enter the Access Point’s MAC address that you would like to extend the wireless area. Mode Select Disable or Enable from the drop down list. Apply / Cancel Press Apply to apply the changes or Cancel to return previous settings. Auction: The Access Point that you would like to extend the wireless area must enter your Access Point’s MAC address. Not all Access Point supports this feature. ... -
Page 33: Lan Setup
5 LAN Setup This section will guide you to the Local Area Network (LAN) settings 5.1 IP Settings This section is only available for Non‐Router Mode. IP Settings allows you to LAN port IP address of the EOA3630. Auction: Changing LAN IP Address will change LAN Interface IP address. Webpage will automatically redirect to the new IP address after Apply. IP Network Setting Select Radio button for Obtain an IP address automatically or Specify an IP address. IP Address Specify LAN port IP address. IP Suet Mask Specify Subnet Mask. Default Gateway Specify Default Gateway Primary DNS Specify Primary DNS Secondary DNS Specify Secondary DNS Apply / Cancel Press Apply to apply the changes or Cancel to return previous settings. Auction: Obtain an IP address automatically is not a DHCP server. It means automatically get IP address when device connected to a device which has DHCP server. ... -
Page 34: Spanning Tree Settings
5.2 Spanning Tree Settings Spanning Tree Status Select the Radio button to On or Off Spanning Tree function. Bridge Hello Time Specify Bridge Hello Time in second. Bridge Max Age Specify Bridge Max Age in second. Bridge Forward Delay Specify Bridge Forward Delay in second. Priority Specify the Priority number. Smaller number has greater priority. Apply / Cancel Press Apply to apply the changes or Cancel to return previous settings. ... -
Page 35: Router Settings
6 Router Settings This section is only available for AP Router Mode and Client Router Mode. 6.1 WAN Settings There are four different types of WAN connection: Static IP, DHCP, PPPoE and PPTP. Please contact your ISP to select the connection type. 6.1.1 Static IP Select Static IP in WAN connection if your ISP gives all the information about IP address, Subnet Mask, Default Gateway, Primary DNS and Secondary DNS. Internet Connection Type Select Static IP to begin configuration of the Static IP connection. Account Name Specify Account Name that is provided by ISP. Domain Name Specify Domain Name that is provided by ISP. MTU Specify the Maximum Transmit Unit size. Suggest remain in Auto. IP Address Specify WAN port IP address. IP Subnet Mask Specify WAN IP Subnet Mask. Gateway IP Address Specify WAN Gateway IP address. Primary DNS Specify Primary DNS IP. Secondary DNS Specify Secondary DNS IP. Discard Ping on WAN Place a Check to Enable or Disable ping from WAN. Apply / Cancel Press Apply to apply the changes or Cancel to return previous settings. Auction: If the router's MTU is set too high, packets will be fragmented downstream. If the router's MTU is set too low, the router will fragment packets unnecessarily and in extreme cases may be unable to establish some connections. In either case, network performance can suffer. ... -
Page 36: Dhcp (Dynamic Ip)
6.1.2 DHCP (Dynamic IP) Select DHCP as your WAN connection type to obtain your IP address automatically. You will need to enter Account Name as your hostname and DNS (Optional). Internet Connection Type Select DHCP to begin configuration of the DHCP connection. Account Name Specify Account Name that is provided by ISP. Domain Name Specify Domain Name that is provided by ISP. MTU Specify the Maximum Transmit Unit size. Suggest remain in Auto. Get Automatically From Select the Radio button for get the DNS automatically from DHCP server. ISP Use These DNS Servers Select the Radio button for setup the Primary DNS and Secondary DNS servers manually. Discard Ping on WAN Place a Check to Enable or Disable ping from WAN. Apply / Cancel Press Apply to apply the changes or Cancel to return previous settings. ... - Page 37 Auction: If the router's MTU is set too high, packets will be fragmented downstream. If the router's MTU is set too low, the router will fragment packets unnecessarily and in extreme cases may be unable to establish some connections. In either case, network performance can suffer. ...
-
Page 38: Pppoe (Point-To-Point Protocol Over Ethernet)
6.1.3 PPPoE (Point‐to‐Point Protocol over Ethernet) Select PPPoE as your WAN connection type if your ISP provides Username and Password. PPPoE is a DSL service and please remove your PPPoE software from your computer, the software is not worked in EOA3630. Internet Connection Type Select PPPoE to begin configuration of the PPPoE connection. MTU Specify the Maximum Transmit Unit size. Suggest remain in Auto. Login Specify the Username that is given by your ISP. Password Specify the Password that is given by your ISP. Service Name Specify the Service Name that is given by your ISP. Connect on Demand Select the Radio button to specify the maximum idle time. Internet connection will ... - Page 39 disconnect when it reach the maximum idle time, but it will automatically connect when user tries to access the network. Keep Alive Select the Radio button to keep internet connection always on. Specify the redial period once the internet lose connection. Get Automatically From Select the Radio button for get the DNS automatically from DHCP server. ISP Use These DNS Servers Select the Radio button for setup the Primary DNS and Secondary DNS servers manually. Discard Ping on WAN Place a Check to Enable or Disable ping from WAN. Apply / Cancel Press Apply to apply the changes or Cancel to return previous settings. Auction: If the router's MTU is set too high, packets will be fragmented downstream. If the router's MTU is set too low, the router will fragment packets unnecessarily and in extreme cases may be unable to establish some connections. In either case, network performance can suffer. ...
-
Page 40: Pptp (Point-To-Point Tunneling Protocol)
6.1.4 PPTP (Point‐to‐Point Tunneling Protocol) Select PPTP as your WAN connection type if your ISP provides information about IP Address, Subnet Mask, Default Gateway (Optional), DNS (Optional), Server IP, Username, and Password. Internet Connection Type Select PPTP to begin configuration of the PPTP connection. MTU Specify the Maximum Transmit Unit size. Suggest remain in Auto. IP Address Specify WAN port IP address. ... - Page 41 IP Subnet Mask Specify WAN IP Subnet Mask. Gateway IP Address Specify WAN Gateway IP address. PPTP Server Specify PPTP Server IP address. Username Specify the Username that is given by your ISP. Password Specify the Password that is given by your ISP. Connect on Demand Select the Radio button to specify the maximum idle time. Internet connection will disconnect when it reach the maximum idle time, but it will automatically connect when user tries to access the network. Keep Alive Select the Radio button to keep internet connection always on. Specify the redial period once the internet lose connection. Get Automatically From Select the Radio button for get the DNS automatically from DHCP server. ISP Use These DNS Servers Select the Radio button for setup the Primary DNS and Secondary DNS servers manually. Discard Ping on WAN Place a Check to Enable or Disable ping from WAN. Apply / Cancel Press Apply to apply the changes or Cancel to return previous settings. Auction: If the router's MTU is set too high, packets will be fragmented downstream. If the router's MTU is set too low, the router will fragment packets unnecessarily and in extreme cases may be unable to establish some connections. In either case, network performance can suffer. ...
-
Page 42: Lan Settings (Router Mode )
6.2 LAN Settings (Router Mode) IP Address Specify LAN port IP address. IP Subnet Mask Specify LAN IP Subnet Mask. WINS Server IP Specify WINS Server IP. Use Router As DHCP Place a Check to enable DHCP server. Server Starting IP Address Specify DHCP server starting IP address. Ending IP Address Specify DHCP server ending IP address. Apply / Cancel Press Apply to apply the changes or Cancel to return previous settings. ... -
Page 43: Vpn Pass Through
6.3 VPN Pass Through VPN Pass Through is on top of an existing network by passing or restricting certain protocol. This function can help to provide a secure private network. PPTP Pass Through Place a Check to enable PPTP protocol passes through WAN. L2TP Pass Through Place a Check to enable L2TP protocol passes through WAN. IPSec Pass Through Place a Check to enable IPSec protocol passes through WAN. Apply / Cancel Press Apply to apply the changes or Cancel to return previous settings. ... -
Page 44: Port Forwarding
6.4 Port Forwarding Port Forwarding is used to forward a TCP/IP packet in a NAT to a specific network port. Add Entry Press Add Entry to add a rule of Port Forwarding. Apply Press Apply to apply the changes. Service Name Specify a name for current Port Forwarding rule. Protocol Select a protocol from drop down list: Both, TCP and UDP. Starting Port Specify Starting Port number. Ending Port Specify Ending Port number. IP Address Specify IP address. Save / Cancel Press Save to apply the changes or Cancel to return previous settings. ... -
Page 45: Dmz
6.5 DMZ DMZ (Demilitarized) is a physical or logical subnetwork that exposed LAN to an unknown network. This function allows you to add an additional entry to an IP address. DMZ Hosting Select Enable or Disable DMZ from drop down list. DMZ Address Specify an IP address of DMZ. Apply / Cancel Press Apply to apply the changes or Cancel to return previous settings. ... -
Page 46: Information Status
7 Information Status Status section is on the navigation drop‐down menu. You will then see three options: Main, Wireless Client List, System Log, WDS Link Status, Connection Status, and DHCP Client Table. Each option is described in detail below. 7.1 Main Click on the Main link under the Status drop‐down menu or click Home from the top‐right of the webpage. The status that is displayed corresponds with the operating mode that is selected. Information such as operating mode, system up time, firmware version, serial number, kernel version and application version are displayed in the ‘System’ section. LAN IP address, subnet mask, and MAC address are displayed in the ‘LAN’ section. In the ‘Wireless section, the frequency, channel is displayed. Since this device supports multiple‐SSIDs, the details of each SSID, such as ESSID and its security settings are displayed. ... -
Page 47: Wireless Client List
7.2 Wireless Client List Click on the Wireless Client List link under the Status drop‐down menu. This page displays the list of Clients that are associated to the EOA3630. The MAC addresses and signal strength for each client is displayed. Click on the Refresh button to refresh the client list ... -
Page 48: System Log
7.3 System Log Click on the System Log link under the Status drop‐down menu. The device automatically logs (records) events of possible interest in its internal memory. If there is not enough internal memory for all events, logs of older events are deleted, but logs of the latest events are retained. ... -
Page 49: Wds Link Status
7.4 WDS Link Status The WDS Link Status will only show in WDS Bridge Mode. Click on the WDS Link Status link under the Status drop‐down menu. This page displays the current status of WDS link, including station ID, MAC address, status and RSSI. 7.5 Connection Status Click on the Connection Status link under the Status drop‐down menu. This page displays the current status of the network, including network type, SSID, BSSID, connection status, wireless mode, current channel, security, data rate, noise level and signal strength. ... -
Page 50: Dhcp Client Table
7.6 DHCP Client Table Click on the DHCP Client List link under the Status drop‐down menu. This page displays the list of Clients that are associated to the EOA3630 through DHCP. The MAC addresses and signal strength for each client is displayed. Click on the Refresh button to refresh the client list. ... -
Page 51: Management Settings
8 Management Settings Management section is on the navigation drop‐down menu. You will then see seven options: administration, management VLAN, SNMP settings, backup/restore settings, firmware upgrade, time settings, and log. Each option is described below. 8.1 Administration Click on the Administration link under the Management menu. This option allows you to create a user name and password for the device. By default, this device is configured without a user name and password admin. For security reasons it is highly recommended that you create a new user name and password. Name Specify Username for login. Password Specify a Password for login Confirm Password Re‐enter the Password for confirmation. Remote Management Select the Radio button to Enable or Disable Remote Management. Remote Upgrade Select the Radio button to Enable or Disable Remote Upgrade. Remote Management Specify the Port number for Remote Management. For example: If you specify the ... -
Page 52: Management Vlan
8.2 Management VLAN Click on the Management VLAN link under the Management menu. This option allows you to assign a VLAN tag to the packets. A VLAN is a group of computers on a network whose software has been configured so that they behave as if they were on a separate Local Area Network (LAN). Computers on VLAN do not have to be physically located next to one another on the LAN Management VLAN ID If your network includes VLANs and if tagged packets need to pass through the Access Point, specify the VLAN ID into this field. If not, select the No VLAN tag radio button. Apply / Cancel Press Apply to apply the changes or Cancel to return previous settings. Auction: If you reconfigure the Management VLAN ID, you may lose connection to the EOA3630. Verify DHCP server can support the reconfigured VLAN ID, and then re‐connect to the new IP address. ... -
Page 53: Snmp Settings
8.3 SNMP Settings Click on the SNMP Settings link under the Management menu. This is a networking management protocol used to monitor network‐attached devices. SNMP allows messages (called protocol data units) to be sent to various parts of a network. Upon receiving these messages, SNMP‐compatible devices (called agents) return data stored in their Management Information Bases. SNMP Enable/Disable Select the Radio button to Enable or Disable SNMP function. Contact Specify the contact details of the device. Location Specify the location of the device. Community Name Specify the password for access the SNMP community for read only access. Community Name Specify the password for access the SNMP community for read and write access. Trap Destination IP Specify the IP address that will receive the SNMP trap. Address Trap Destination Specify the password of the SNMP trap community. Community Name Apply / Cancel Press Apply to apply the changes or Cancel to return previous settings. ... -
Page 54: Backup /Restore Settings
8.4 Backup/Restore Settings Click on the Backup/Restore Setting link under the Management menu. This option is used to save the current settings of the device in a file on your local disk or load settings on to the device from a local disk. This feature is very handy for administrators who have several devices that need to be configured with the same settings. Save A Copy of Current Click on Backup to save current configured settings. Settings Restore Saved Settings EOA3630 can restore a previous setting that has been saved. Click on Browse to from a File select the file and Restore. Revert to Factory Default Click on Factory Default button to reset all the settings to the default values. Settings 8.5 Firmware Upgrade Click on the Firmware Upgrade link under the Management menu. This page is used to upgrade the firmware of the device. Make sure that downloaded the appropriate firmware from your vendor. Auction: Upgrade process may take few minutes, please do not power off the device and it may cause ... -
Page 55: Time Settings
8.6 Time Settings Click on the Time Settings link under the Management menu. This page allows you to configure the time on the device. You may do this manually or by connecting to a NTP server. Manually Set Date and Manually setup the date and time. Time Automatically Get Date Specify the Time Zone from the drop down list and Place a Check to specify the IP and Time address of the NTP Server manually or uses default NTP Server. Apply / Cancel Press Apply to apply the changes or Cancel to return previous settings. ... -
Page 56: Log
8.7 Log Click on the Log link under the Management menu. The Log page displays a list of events that are triggered on the Ethernet and Wireless interface. This log can be referred when an unknown error occurs on the system or when a report needs to be sent to the technical support department for debugging purposes. Syslog Select Enable or Disable Syslog function from the drop down list. Log Server IP Address Specify the Log Server IP address. Local Log Select Enable or Disable Local Log service. Apply / Cancel Press Apply to apply the changes or Cancel to return previous settings. ... -
Page 57: Diagnostics
8.8 Diagnostics Click on the Diagnostics link under the Management menu. This function allows you to detect connection quality and trace the routing table to the target. Target IP Specify the IP address you would like to search. Ping Packet Size Specify the packet size of each ping. Number of Pings Specify how many times of ping. Start Ping Press Start Ping to begin. Traceroute Target Specify an IP address or Domain name you would like to trace. Start Traceroute Press Start Traceroute to begin. ... -
Page 58: Appendix A - Fcc Interference Statement
Appendix A – FCC Interference Statement Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, ...
