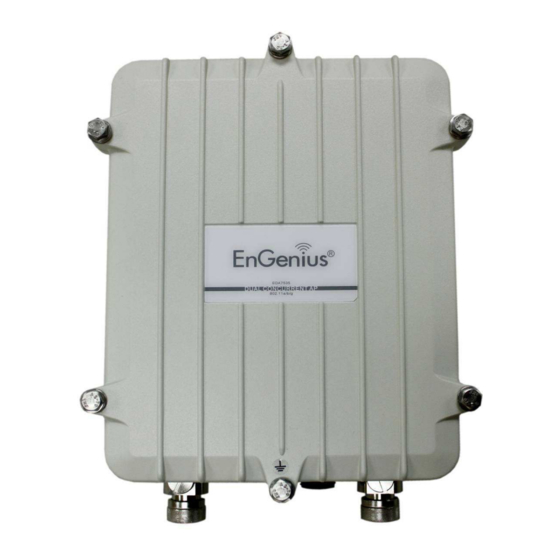

EnGenius OA7535 User Manual

Dual radio concurrent ap
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

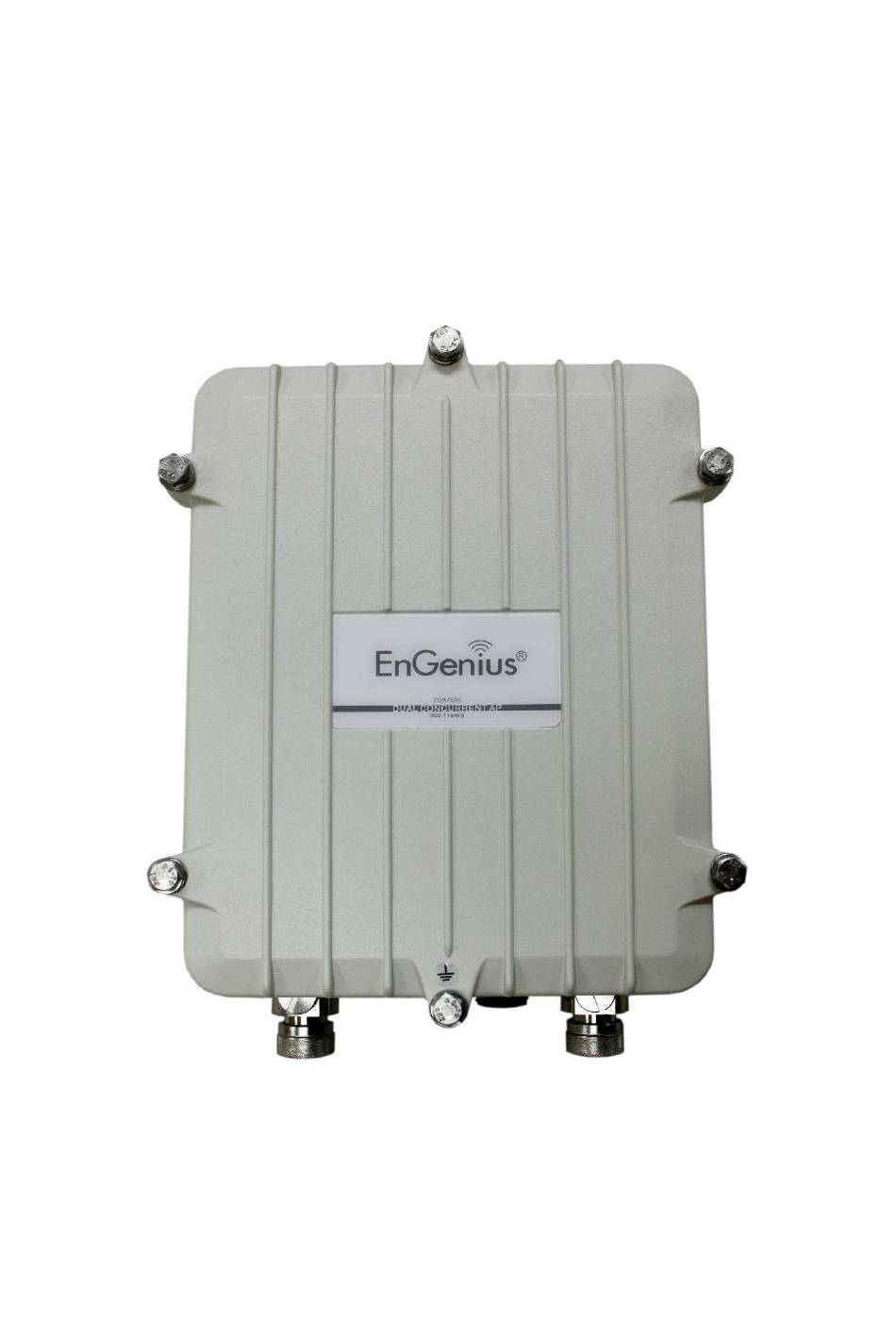

Dual Radio Concurrent AP
EOA7535
User Manual
Version : 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the OA7535 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for EnGenius OA7535

Summary of Contents for EnGenius OA7535

  • Page 1 Dual Radio Concurrent AP EOA7535 User Manual Version : 1.0...

  • Page 2: Table Of Contents

    Table of Contents 1 PRODUCT OVERVIEW ................................3 1.1 B ..................................3 ENEFITS 1.2 F ..................................5 EATURE 1.3 P ................................. 6 ACKAGE ONTENTS 1.4 S ..............................6 YSTEM EQUIREMENT 1.5 H ..............................6 ARDWARE VERVIEW 2 EOA7535 MULTI-FUNCTION INSTRUCTION GUIDE ......................7 2.1 A .................................
  • Page 3 5 LAN SETUP ..................................26 5.1 LAN S ................................26 ETTINGS 5.2 DHCP I .................................. 27 5.3 SNMP S ................................29 ETTINGS 6 INTERNET SETTINGS ................................30 6.1 DHCP (D IP) ..............................30 YNAMIC 6.2 S IP..................................30 TATIC 6.3 PPP E (P )......................

  • Page 4: Product Overview

    1 Product Overview Thank you for using EOA7535. EOA7535 is a dual core wireless outdoor Access Point/Client Bridge. It is a powerful, enhanced, enterprise scale product with 3 multi-functions Access Point, Client Bridge, and Client Router in both 2.4G and 5G operation mode. EOA7535 can help with reducing costs with wired internet/intranet and even constructing wireless environment.
  • Page 5 Network managers in dynamic environments can minimize the overhead caused by moves, extensions to networks, and other changes with wireless LANs. f) Wired LAN backup Network managers implement wireless LANs to provide backup for mission-critical applications running on wired networks. g) Training/Educational facilities Training sites at corporations and students at universities use wireless connectivity to ease access to information, information exchanges, and learning.

  • Page 6: Feature

    1.2 Feature Dual Mode Use this feature to configure 2.4G and 5G at the same time. Both 2.4G and 5G are functioning in the Access Point mode and it can save much time of configuration. Separate Mode Use this feature to configure 2.4G and 5G separately. 2.4G and 5G can function with different operation modes and it gives flexible choice of the wireless network.

  • Page 7: Package Contents

    Open the package carefully, and make sure that none of the items listed below are missing. Do not discard the packing materials, in case of return; the unit must be shipped in its original package. 1* EnGenius Dual Concurrent Wireless Outdoor Access Point / Client Bridge (EOA7535) 1* 48V/0.375A Power Adapter...

  • Page 8: Eoa7535 Multi-Function Instruction Guide

    2 EOA7535 Multi-Function Instruction Guide 2.1 Access Point In the Access Point Mode with WDS Function, EOA7535 function likes a central connection for any stations or clients that support IEEE 802.11b/g network. Stations and Client must configure the same SSID and Security Password to associate within the range. EOA7535 supports 4 different SSIDs to separate different clients at the same time.

  • Page 9: Client Router

    2.3 Client Router In the Client Router Mode, the EOA7535 has DHCP Server build inside that allows many LANs automatically generate an IP address to share the same Internet. Connect an AP/WISP Wirelessly and connect to LANs via wired. Client Router Mode is act completely opposite to the AP Router Mode.

  • Page 10: Computer Configuration Instruction

    3 Computer Configuration Instruction 3.1 Obtain an IP Automatically In order to configure EOA7535, please follow the instruction below: 1. In the Control Panel, double click Network Connections and then double click on the connection of your Network Interface Card (NIC). You will then see the following screen.

  • Page 11: Logging Method

    3.2 Logging Method After complete the IP settings from last section, you can now access the web-based configuration menu. 1. Open web browser 2. Enter IP 192.168.1.2 into you address filter. Auction: If you have changed the EOA7535 LAN IP address, make sure you enter the correct IP Address.

  • Page 12: Wireless Configuration

    4 Wireless Configuration 4.1 Switching Operation Mode The EOA7535 supports 3 different operation modes: Access Point, Client Bridge, and Client Router. Each mode can be used in both 2.4G and 5G wireless network at the same time or separately. Click Operation Mode under Management Section to begin. 4.1.1 Separate Mode 5G’s and 2.4G’s networks can operate separately by selecting Separate Mode’s radio button.

  • Page 13: Dual Mode

    Note: If you would like to use the Access Point mode in both 5G and 2.4G network, please check next section for details. 4.1.2 Dual Mode Only Access Point Mode can operate 2.4G and 5G at the same time. However, Client Bridge/Client Router can still select 2.4G and 5G network in the wireless basic settings.

  • Page 14: Access Point Mode (Dual Mode)

    4.2.1 Access Point Mode (Dual Mode) Radio Select the radio button to enable or disable wireless function. Enable SSID# EOA7535 can support up to 4 different SSID with different VLAN tag. ESSID Specify the broadcast SSID and VLAN ID for each ESSID. 5G Wireless Settings Band Standard IEEE 802.11a band.

  • Page 15: Access Point Mode (5G)

    Apply / Cancel Press Apply to apply the changes or Cancel to return previous settings. Auction: Both 5G and 2.4G bands are using the same SSID. 4.2.2 Access Point Mode (5G) Radio Select the radio button to enable or disable wireless function. Enable SSID# EOA7535 can support up to 4 different SSID with different VLAN tag.

  • Page 16: Access Point Mode (2.4G)

    4.2.3 Access Point Mode (2.4G) Radio Select the radio button to enable or disable wireless function. Enable SSID# EOA7535 can support up to 4 different SSID with different VLAN tag. ESSID Specify the broadcast SSID and VLAN ID for each ESSID. 2.4G Wireless Settings Band Standard IEEE 802.11b and 802.11g band.

  • Page 17: Client Bridge Mode/Client Router Mode (Dual Mode)

    4.2.4 Client Bridge Mode/Client Router Mode (Dual Mode) ESSID Specify the SSID is given by Access Point if known. Otherwise, you may use Site Survey to scan nearby Access Point. Preferred BSSID Specify the MAC address from the Access Point that you would like to associate with. 5G Wireless Setting Select the radio button to use 5G network as your default wireless network.

  • Page 18: Client Bridge Mode/Client Router Mode (5G)

    4.2.5 Client Bridge Mode/Client Router Mode (5G) ESSID Specify the SSID is given by Access Point if known. Otherwise, you may use Site Survey to scan nearby Access Point. Preferred BSSID Specify the MAC address from the Access Point that you would like to associate with. 5G Wireless Setting Standard IEEE 802.11a wireless band.

  • Page 19: Site Survey

    Note: For more details of Site Survey, please refer to the Site Survey section. 4.3 Site Survey Use this feature to scan nearby Access Point. Numbers of Access Points have been found in the site survey. Select Select the Access Point you would like to associate with via select the radio button. Channel Access Point is currently uses which channel.

  • Page 20: Wep (Access Point)

    We are strongly recommended that uses WPA2-PSK AES as your security settings. 4.5.1 WEP (Access Point) ESSID Selection EOA7535 supports up to 4 different SSIDs. Each SSID can be set to different authentication type. Hidden SSID Select Enable or Disable broadcast SSID. Select Enable or Disable WMM function.

  • Page 21: Wep (Client Bridge / Client Router)

    4.5.2 WEP (Client Bridge / Client Router) Network Name (SSID) Specify the Access Point’s SSID that you would like to associate with. Encryption Select WEP from the drop down list to begin the configuration. Authentication Type Select Open System or Shared Key as your authentication type. Key Length Select Key Length in 64/128bit password length.

  • Page 22: Wpa Pre-Shared Key (Access Point)

    4.5.3 WPA pre-shared Key (Access Point) ESSID Selection EOA7535 supports up to 4 different SSIDs. Each SSID can be set to different authentication type. Hidden SSID Select Enable or Disable broadcast SSID. Select Enable or Disable WMM function. WMM is based on the four Access Categories: voice, video, best effort and background.

  • Page 23: Wpa Pre-Shared Key (Client Bridge / Client Router)

    4.5.4 WPA pre-shared Key (Client Bridge / Client Router) Network Name (SSID) Specify the Access Point’s SSID that you would like to associate with. Encryption Select WPA pre-shared key from the drop down list to begin the configuration. WPA Type Select WPA(TKIP), or WPA2(AES) as your authentication type.

  • Page 24: Radius (Access Point Only)

    4.5.5 Radius (Access Point Only) Radius authentication type is only available in Access Point Mode. Use this feature if you have Radius Server. It also supports WPA(TKIP), WPA2(AES) and WPA2 Mixed encryption types. ESSID Selection EOA7535 supports up to 4 different SSIDs. Each SSID can be set to different authentication type.

  • Page 25: Wireless Advanced Settings

    4.6 Wireless Advanced Settings If you do not have experience with Wireless Advanced Settings, we suggest remain all settings to default. Any modifies may cause insufficient wireless connection quality. 4.6.1 Advanced Settings (Access Point) Fragment Threshold Specify package size during transmission. If large amount of client are accessing to the network, specify small number of the fragment length in order to avoid collision.

  • Page 26: Advanced Settings (Client Bridge / Client Router)

    connection speed. Layer 2 Isolation Select the Radio button to enable or disable Layer 2 Isolation. Layer 2 isolation prevents communication between wireless stations associated to different APs 4.6.2 Advanced Settings (Client Bridge / Client Router) Fragment Threshold Specify package size during transmission. If large amount of client are accessing to the network, specify small number of the fragment length in order to avoid collision.

  • Page 27: Lan Setup

    EOA7535. Enable Wireless Access Place a Check to enable Wireless Access Control. Control Description Specify the description for the MAC address you about to add. MAC Address Specify the MAC Address. Press Add to add the MAC address. Reset Press Reset to cancel the condition of description and MAC Address. MAC Address Filtering Check all the conditions you had added.

  • Page 28: Dhcp Info

    LAN IP IP Address Specify LAN port IP address. IP Subnet Mask Specify Subnet Mask. Default Gateway Specify Default Gateway 802.1d Spanning Tree Select the drop down menu to enable or disable Spanning Tree. DHCP Server DHCP Server Select the drop down menu to enable or disable DHCP server. Lease Time Specify the expiring time of IP address given by DHCP server.
  • Page 29 Enable Static DHCP IP Place a Check to enable Static DHCP IP. IP Address Specify the IP Address for the MAC address you about to add. MAC Address Specify the MAC Address. Press Add to add the MAC address. Reset Press Reset to cancel the condition of description and MAC Address.

  • Page 30: Snmp Settings

    5.3 SNMP Settings SNMP Enable Select the Radio button to enable SNMP feature. SNMP Disable Select the Radio button to disable SNMP feature. Apply / Cancel Press Apply to apply the changes or Cancel to return previous settings.

  • Page 31: Internet Settings

    6 Internet Settings 6.1 DHCP (Dynamic IP) Select Dynamic IP as your WAN connection type to obtain your IP address automatically. You will need to enter Hostname Hostname Specify the Hostname is given by your Internet Service Provider. Apply / Cancel Press Apply to apply the changes or Cancel to return previous settings.

  • Page 32: Pppoe (Point-To-Point Protocol Over Ethernet)

    6.3 PPPoE (Point-to-Point Protocol over Ethernet) Select PPPoE as your WAN connection type if your ISP provides Username and Password. PPPoE is a DSL service and please remove your PPPoE software from your computer, the software is not worked in EOA3630. Login Specify the Username that is given by your ISP.

  • Page 33: Pptp (Point-To-Point Tunneling Protocol)

    6.4 PPTP (Point-to-Point Tunneling Protocol) Select PPTP as your WAN connection type if your ISP provides information about IP Address, Subnet Mask, Default Gateway (Optional), DNS (Optional), Server IP, Login Username, and Login Password. There are two types of PPTP connection: Dynamic IP Address and Static IP Address. Dynamic IP Address WAN Interface Type Select Dynamic IP Address as your WAN Interface.
  • Page 34 Login Specify the Username that is given by your ISP. Password Specify the Password that is given by your ISP. Service IP Address Specify the Service IP Address that is given by your ISP. Connection ID Specify the Connection ID that is given by your ISP. Specify the Maximum Transmit Unit size.

  • Page 35: Information Status

    7 Information Status Status section is used to check the status of device information such as System up time, Firmware version, Wireless Client List, and Internet Status. 7.1 Status Click on the Status link under the Management section. This page display information of the device such as Current Time, Hardware Version, Kernel Version, and Application version are displayed in the ‘System’...

  • Page 36: Wireless Client List

    7.2 Wireless Client List Click on the Client List link under the 5G/2.4G Wireless section. This page displays the list of Clients that are associated to the EOA7535. The MAC addresses, signal strength, and Idle Time for each client is displayed. Click on the Refresh button to refresh the client list 7.3 System Log Click on the Log link under the Management section.

  • Page 37: Internet Status

    7.4 Internet Status Click on the Status link under the Internet section. This page displays the current connection type status of the network, including network type, SSID, BSSID, connection status, wireless mode, current channel, security, data rate, noise level and signal strength. Note: If your internet connection type is PPPoE or PPTP with Manual Connection, you can connect to internet at this page.

  • Page 38: Management Settings

    8 Management Settings Management section is on the navigation drop-down menu. This section can help you to manage your device and adjust system settings such as Password, Time Zone, Diagnosis, Remote Control, Upgrade Firmware, Save/Load Settings. Each option is described below. 8.1 Password Settings Click on the Password link under the Management section.

  • Page 39: Diagnosis

    NTP Time Server Specify the NTP Server’s Domain name or IP Address. Daylight Saving Place a Check to enable Daylight Saving feature. Configure the starting date and ending date. Apply / Cancel Press Apply to save the changes or Cancel to return previous settings. 8.3 Diagnosis Click on the Diagnostics link under the Management menu.

  • Page 40: Remote Control

    8.4 Remote Control Host Address Specify the IP Address you would like to use as your remote controller. Port Specify the Port number. Enable Place a Check to enable Remote management. Apply/Reset Press Apply to save the changes or Reset to return previous settings. 8.5 Upgrade Firmware Click on the Upgrade Firmware link under the Management menu.
  • Page 41 Restore to Factory Click on Reset button to reset all the settings to the default values. Default Settings Backup Settings Click on Save to save current configured settings. Restore Settings EOA7535 can restore a previous setting that has been saved. Click on Browse to select the file and Upload.

  • Page 42: Network Configuration Example

    9 Network Configuration Example This chapter describes the role of the EOA7535 with three different modes. The Access Point mode’s default configuration is a central unit of the wireless network or as a root device of the wired environment. Repeater mode and Mesh network mode need future configuration. 9.1 Access Point Mode + Client Bridge Mode Access Point Step1...

  • Page 43: Client Router Mode

    Step3 Select 5G or 2.4G as your wireless mode. Use site survey to scan nearby Access Point and select the certain AP you would like Step4 to connect with or enter SSID manually. Step5 Select correct authentication type and then enter password. Auction: Wireless Client IP address must configure manually at the same subnet in Local Area Network or enable DHCP server of EOA7535 to retrieve IP automatically.

  • Page 44: Appendix A - Fcc Interference Statement

    Appendix A – FCC Interference Statement Federal Communication Commission Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This manual is also suitable for:

Eoa7535
