Summary of Contents for Teleco Flat Sat Elegance

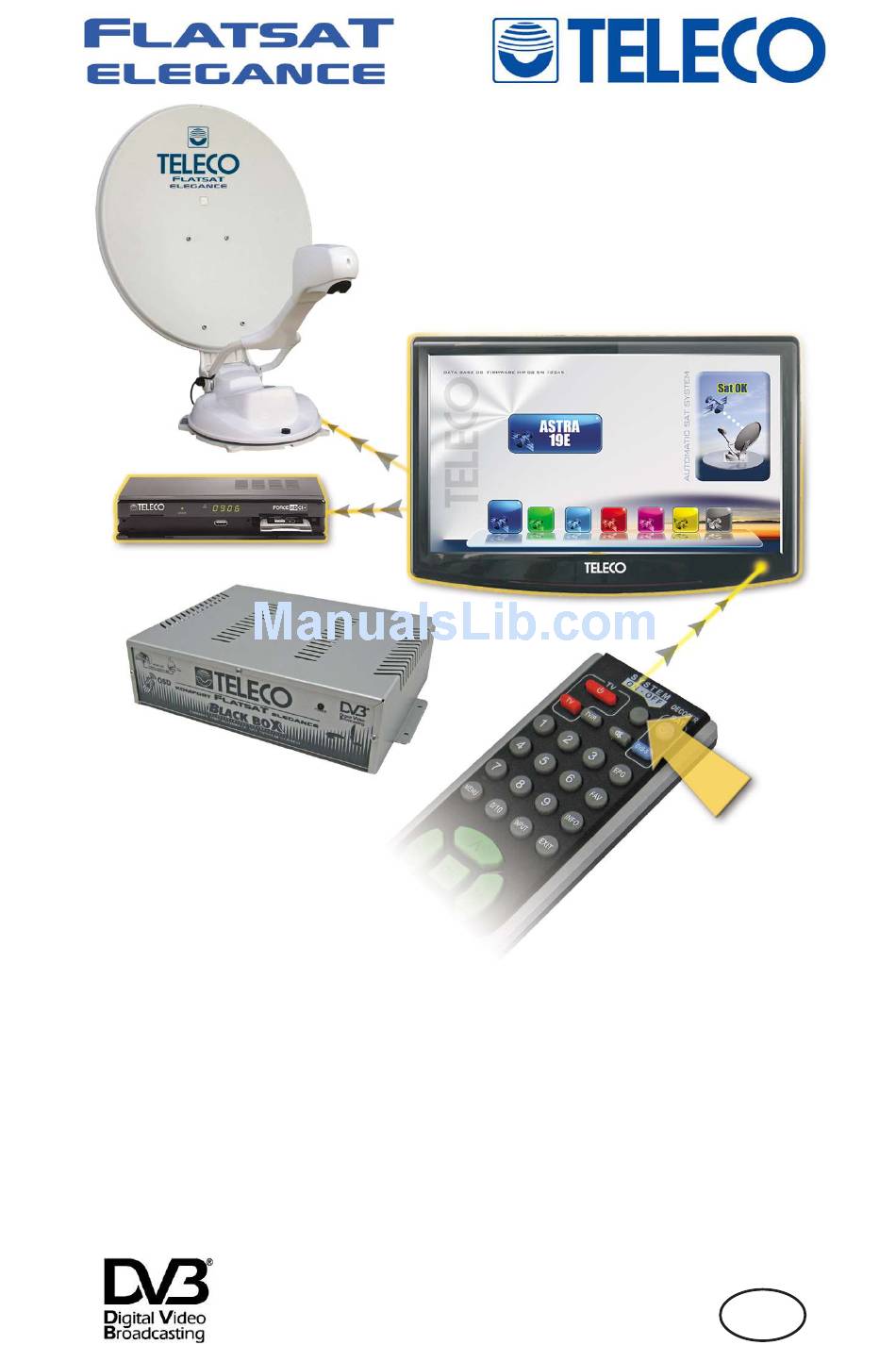

  • Page 1: User Manual

    User manual Flat Sat Elegance...

  • Page 2: Table Of Contents

    TV reception. This handbook has been prepared to provide information on the technical specifications and how to install, use and maintain your Flat Sat Elegance system: For additional information, please contact your local dealer or directly the manufacturer: TELECO s.p.a.

  • Page 3: Flat Sat Elegance Kits

    • Complete Kit with Black Box, Sat Decoder and TV • Kit with Black Box and Sat Decoder (without Teleco TV) • Without Kit, with Black Box only (without both Teleco TV and Decoder) How to identify your Sat Elegance Kit In order to identify the configuration you purchased, make sure that the Kit labels are applied on the proper Kit-matching devices.

  • Page 4: Lnb Rotation For Ideal Signal Reception In Extreme Areas In Europe

    The cable connecting the driving unit to the Flat Sat Elegance Black Box must NEVER be cut for any reason whatsoever: should the cable turn out to be too long, wind the extra part into a coil in a free area of the vehicle.

  • Page 5: Important Information For Proper Antenna Tracking

    2) It is also important to know that satellites do not transmit with the same intensity throughout Europe, so if you are outside the reception area, your Flat Sat Elegance search might be unsuccessful. The reception areas for each Satellite can be found on the main magazines dealing in this line of business.

  • Page 6: Tips On The Best Use Of Flat Sat Elegance

    No metal or glass wall is very near (about 5 m) the antenna, since this would act as a mirror for satellite signals and could induce the antenna to stop towards it. 2) Remove any snow or ice from the Flat Sat Elegance before actuating it in order to avoid wasting battery power.

  • Page 7: Complete Kit With Black Box, Sat Decoder And Tv

    Complete Kit with Black Box, Sat Decoder and TV...
  • Page 8 Complete Kit with Black Box, Sat Decoder and TV This configuration will allow you to: • Control your Black Box, TV and DECODER with ONE remote control. You can switch the whole system on and off via one button; • Control all the three devices via the remote control using the infrared TV sensor. The remote control is arranged in two memory banks: •...

  • Page 9: Operation

    Operation of the complete Kit with Black Box, Sat Decoder and TV Turning on the Flat Sat Elegance To turn on the Flat Sat Elegance system, press the button (1) for about 1 second. This will turn on the Kit Black Box, Sat Decoder and TV and start the initializing operations.
  • Page 10 Seeking the satellite During the seeking stage the antenna rotates and the name of the selected satellites appears in the middle of the screen. Once the satellite has been found, the antenna stops and the message “Sat Ok” is brought to the display.
  • Page 11 Antenna closure with complete shutdown of the Flat Sat Elegance Once you have finished viewing satellite channels it is possible to press the key (1). The TV screen will then display the Black Box menu and animated graphics depict antenna closure.

  • Page 12: Fault Display

    2) It is also important to know that satellites do not transmit with the same intensity throughout Europe, so if you are outside the reception area, your Flat Sat Elegance search might be unsuccessful. The reception areas for each Satellite can be found on the main magazines dealing in this line of business.
  • Page 13 The raising motor is jammed. Make sure that no foreign matters hinder regular movement. The rotation motor is jammed. Make sure that no foreign matters hinder regular movement. During the switch-on stage a fault occurred in the driving motor. Make sure that no foreign matters hinder regular movement.

  • Page 14: Troubleshooting

    Are the Sat Decoder and the TV powered? If the Flat Sat Elegance has not found the satellite after a complete search, check the following: a) Is the view towards the South free from any obstacle?
  • Page 15 If, when the satellite search is over, the TV screen is black, check the following: a) Is the scart jack of the TV connected to the scart jack of the Black Box? Connect it as indicated in the Installation manual. b) Is the scart cable of the 21-pole type (are all connector poles properly connected)? Use 21-pole scart cables only.

  • Page 16: Kit With Black Box And Sat Decoder (Without Teleco Tv)

    Kit with Black Box and Sat Decoder (without Teleco TV)
  • Page 17 Kit with Black Box and Sat Decoder (without Teleco TV) This configuration will allow you to: • Control your Black Box and DECODER with ONE remote control, but NOT your TV. You can switch the Black Box and the Decoder on and off via one button.

  • Page 18: Operation

    Turning on the Flat Sat Elegance To turn on the Flat Sat Elegance system, press the button (1) for about 1 second. This will turn on the Black Box and the Sat Decoder of the Kit and start the initializing operations. The TV will be switched on via its remote control as it is not part of the Kit.
  • Page 19 Seeking the satellite During the seeking stage the antenna rotates and the name of the selected satellites appears in the middle of the screen. Once the satellite has been found, the antenna stops and the message “Sat Ok” is brought to the display.
  • Page 20 Antenna closure Once you have finished watching satellite channels it is possible to press the key (1). The TV screen will then display the Black Box menu and animated graphics depict antenna closure. Once the antenna closure procedure has been completed the message “P OK” appears. After a few seconds the Black Box and DECODER are switched off automatically.

  • Page 21: Fault Display

    2) It is also important to know that satellites do not transmit with the same intensity throughout Europe, so if you are outside the reception area, your Flat Sat Elegance search might be unsuccessful. The reception areas for each Satellite can be found on the main magazines dealing in this line of business.
  • Page 22 The raising motor is jammed. Make sure that no foreign matters hinder regular movement. The rotation motor is jammed. Make sure that no foreign matters hinder regular movement. During the switch-on stage a fault occurred in the driving motor. Make sure that no foreign matters hinder regular movement.

  • Page 23: Troubleshooting

    TV is not part of the Kit and is therefore to be turned on via its remote control. If the Flat Sat Elegance has not found the satellite after a complete search, check the following:...
  • Page 24 If, when the satellite search is over, the TV screen is black, check the following: a) Is the scart jack of the TV connected to the scart jack of the Black Box? Connect it as indicated in the Installation manual. b) Is the scart cable of the 21-pole type (are all connector poles properly connected)? Use 21-pole scart cables only.

  • Page 25: Configuration Without Kit (Without Both Sat Decoder And Teleco Tv)

    Configuration without Kit (without both Sat Decoder and Teleco TV)
  • Page 26 Configuration without Kit (without both Sat Decoder and Teleco TV) By this configuration, the remote control only controls the Black Box. As the TV and the DECODER are not part of the Kit, they will be controlled via the remote controls supplied by the related manufacturers.

  • Page 27: Operation

    (without both Sat Decoder and Teleco TV) Turning on the Flat Sat Elegance To turn on the Flat Sat Elegance system, press the button (1) for about 1 second. This will turn on the Black Box and start the initializing operations.
  • Page 28 Seeking the satellite During the seeking stage the antenna rotates and the name of the selected satellites appears in the middle of the screen. Once the satellite has been found, the antenna stops and the message “Sat Ok” is brought to the display.
  • Page 29 Antenna closure Once you have finished watching satellite channels it is possible to press the key (1). The TV screen will then display the Black Box menu and animated graphics depict antenna closure. Once the antenna closure procedure has been completed the message “P OK” appears. After a few seconds the Black Box is switched off automatically.

  • Page 30: Fault Display

    2) It is also important to know that satellites do not transmit with the same intensity throughout Europe, so if you are outside the reception area, your Flat Sat Elegance search might be unsuccessful. The reception areas for each Satellite can be found on the main magazines dealing in this line of business.
  • Page 31 The raising motor is jammed. Make sure that no foreign matters hinder regular movement. The rotation motor is jammed. Make sure that no foreign matters hinder regular movement. During the switch-on stage a fault occurred in the driving motor. Make sure that no foreign matters hinder regular movement.

  • Page 32: Troubleshooting

    Decoder and the TV are not part of the Kit, channels are therefore to be changed using the remote controls supplied by the related manufacturers. If the Flat Sat Elegance has not found the satellite after a complete search, check the following:...
  • Page 33 As the Decoder is not part of the Kit, you will have to use the remote control supplied by your Sat Decoder manufacturer. If, when the satellite search is over, the TV screen is black, check the following: a) Is the scart jack of the TV connected to the scart jack of the Black Box? Connect it as indicated in the Installation manual.
  • Page 34 CONFORMITY CERTIFICATE The manifacturer Teleco Spa Via Majorana nr. 49, 48022 Lugo ( RA ) Declares under its own responsibility that the following products: FLAT SAT Elegance which are the subject of this certificate, conform to the following norms: EN 60065: 2002 EN 55013: 2001 + A1: 2003 EN 61000 –...

  • Page 35: Kit Labels

    Kit labels Black Box Decoder Sat 28 - 05 - 2013...
