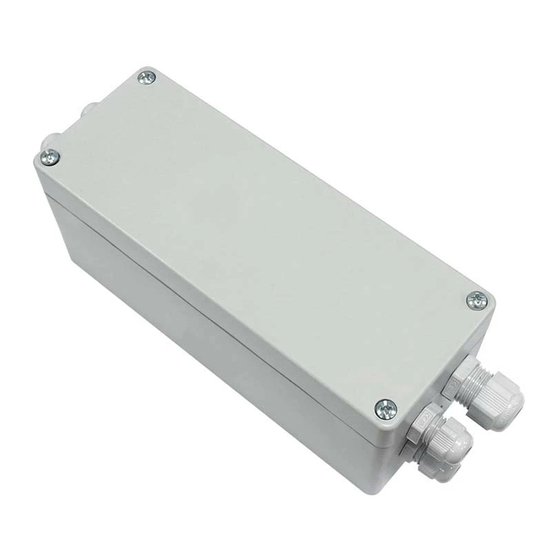

Radio receiver to control one 230Vac motor for awning or pergola covering.
Product codes:
TVPLT868C80T0
TVPLT916C80T0
TVPLT868C80TS
TVPLT916C80TS
Warning: The product must be installed only by qualified technician in accordance with the rules
concerning the automatic covers. The system is powered by 230Vac.
TVPLTxxxC80Tx
PROD.:
TELECO AUTOMATION SRL -
++39.0438.388511 FAX: ++39.0438.388536 - www.telecoautomation.com
TELEPHONE:
This document is the property of Teleco Automation Srl who reserves all reproduction and copying rights
80W integrated transformer to power 24Vdc LED.
wired input (868.3MHz)
wired input (916MHz)
wired input, wind & rain sensors (868.3MHz)
wired input, wind & rain sensors (916MHz)
Via dell'Artigianato, 16 - 31014 Colle Umberto (TV) ITALY
Characteristics
•
80W integrated transformer for LED.
•
Control unit for one 230Vac motor.
•
Selection of the application: awning or pergola covering
•
Automatic setting of working time (for pergola application).
•
Input for rain and wind sensors (optional).
•
Input for two wired external push-buttons, for OPEN and
CLOSE commands.
•
Memorization of single or double radio channels, and 7
channels transmitters.
DOC.:
1
T734.01
DATE:
02/11/16
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Teleco TVPLT868C80T0
Summary of Contents for Teleco TVPLT868C80T0
- Page 1 ++39.0438.388511 FAX: ++39.0438.388536 - www.telecoautomation.com TELEPHONE: This document is the property of Teleco Automation Srl who reserves all reproduction and copying rights Radio receiver to control one 230Vac motor for awning or pergola covering. 80W integrated transformer to power 24Vdc LED.
- Page 2 EN12978. The product is in conformity with the RAEE and RoHS directive Hereby Teleco automation s.r.l. declares that the product complies with the essential requirements and other relevant provisions, established by the Directive 1999/5/EC. The declaration of conformity can be consulted on the web site: www.telecoautomation.com/ce.
- Page 3 1. Wiring and adjustments L1: Rain alarm (ON) L2: wind alarm (flashing) Dip switch AERIAL L3: Not used L1 L2 L3 Wired input 230Vac MOTOR LED OUTPUT 230Vac Wind Sensor Power supply TRANSFORMER Rain Sensor Prog. button SIGNAL SIGNAL RAIN SENSOR (YELLOW, GND) MOTOR OPEN RAIN SENSOR (BLUE, signal) MOTOR CLOSE...
- Page 4 2.1 Memorization of a single channel with OPEN-STOP-CLOSE function (MOTOR) This configuration permits the control of the motor with a single channel of any transmitter. < 1 sec. • Press once P1 keeping it pressed. • The buzzer emits a continuous sound. Press any button of transmitter.
- Page 5 3.1 Memorization of a single channel with ON/OFF - DIM function (LED) This configuration permits the control of the LED with a single channel of any transmitter. With short pulses (<800 ms.) turn the LED on and off; keeping the button pressed: increase or decrease the intensity. <...
- Page 6 4.1 Deleting a transmitter < 1 sec. • Press 5 times P1 keeping pressed the fifth time. • The buzzer emits a continuous sound. Press the button to delete within 10 seconds. • Once the memorization is successfully last completed, the buzzer emits a fast intermittent sound.
- Page 7 6. Configuration of working time (only for pergola application) The configuration of the working time is necessary only for the application PERGOLA. The procedure below will be applied just in case the DIP4 is set to OFF. Move DIP3 to ON. The buzzer makes a beep. The functioning mode automatically switches to “HOLD-TO-RUN”.
-
Page 8: Technical Specifications Of The Control Unit
Not suitable for direct UV exposure 185 mm 70 mm 56 mm 18 mm 56 mm Teleco Automation S.r.l. Teleco Automation France Teleco Automation GmbH Teleco Automation Oceania Pty Ltd France Italy Germany Australia Tel. +39.0438.388511 Tel. +33.(0)472.145080 Tel. +49.(0)8122.9563024 Tel. +61.(07)5502.7801 Fax +33.(0)472.140503...
