Remove Monitor Stand For Mounting - NEC MultiSync 20WGX2 Pro User Manual

Tilt and Swivel

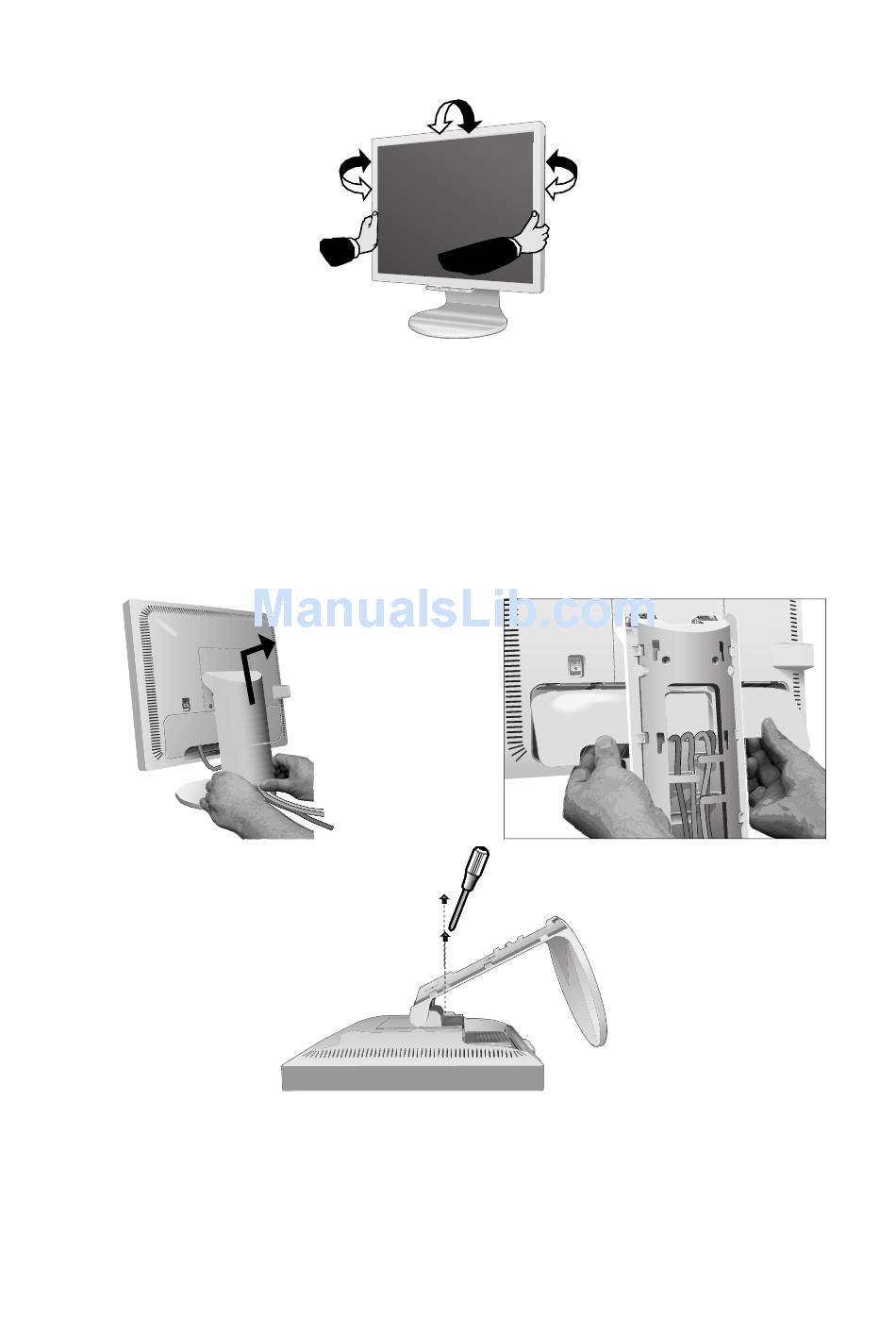

Grasp both sides of the monitor screen with your hands and adjust the tilt and swivel as desired (Figure TS.1).
NOTE: Handle with care when tilting and swivelling the monitor screen.

Remove Monitor Stand for Mounting

To prepare the monitor for alternate mounting purposes:
1. Place hands on each side of the monitor to tilt the LCD panel 5 degrees angles.
Remove the cable cover (Figure M.1).
Remove the connector cover (Figure M.2).
2. Disconnect all cables.
3. Place monitor face down on a non-abrasive surface (Figure M.3).
4. Remove the 2 screws connecting the stand to the monitor (Figure M.3).
Figure M.1
Figure TS.1
Figure M.3
English-6
Figure M.2
