Quick Start

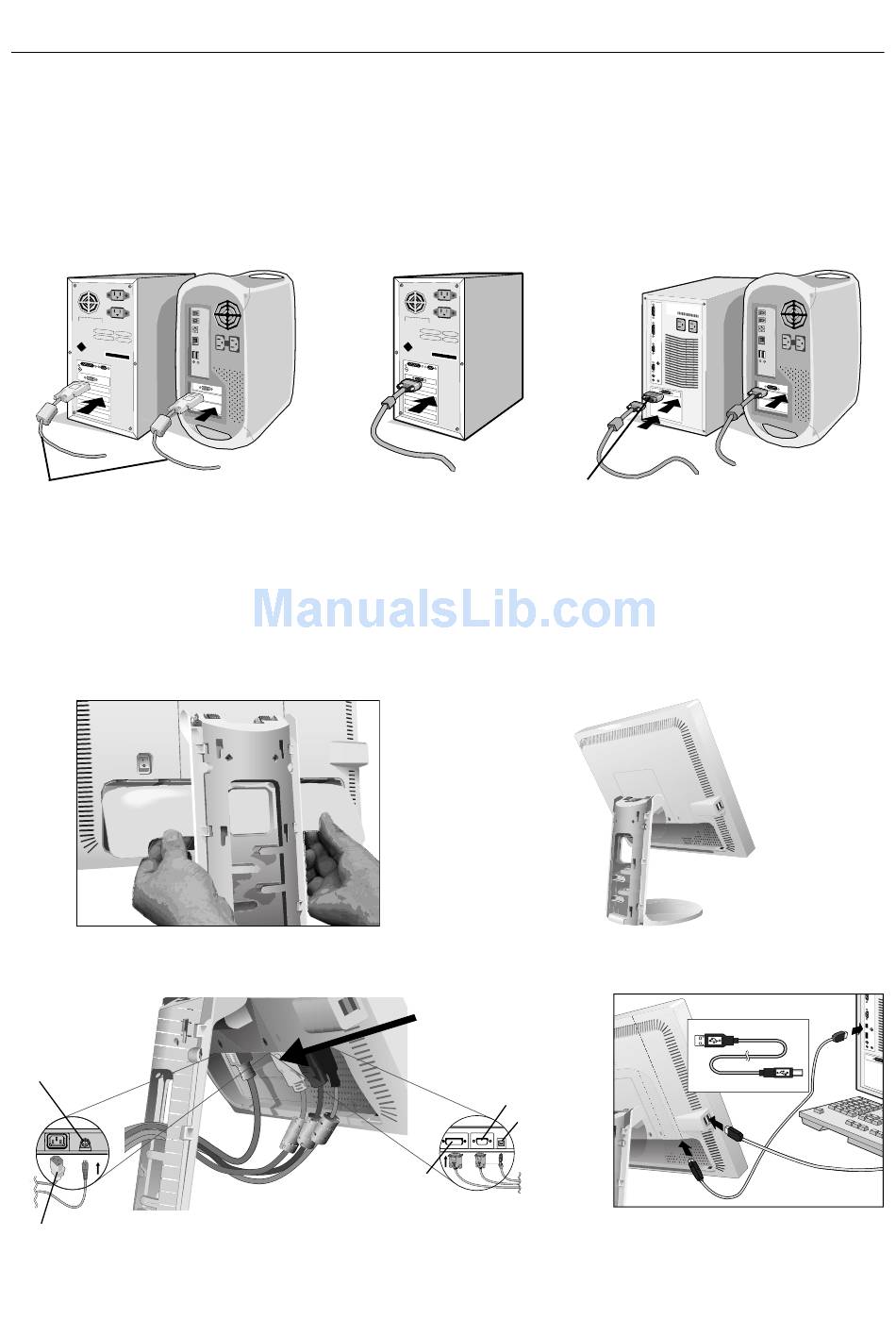

To attach the MultiSync LCD monitor to your system, follow these instructions:
1. Turn off the power to your computer.
2. For the PC or MAC with DVI digital output: Connect the DVI signal cable to the connector of the display card in your
system (Figure A.1). Tighten all screws.
For the PC with Analog output: Connect the 15-pin mini D-SUB signal cable to the connector of the display card in your
system (Figure A.2). Tighten all screws.
For the MAC: Connect the Macintosh cable adapter to the computer, then attach the 15-pin mini D-SUB signal cable to
the Macintosh cable adapter (Figure B.1). Tighten all screws.
DVI signal cable
Figure A.1
NOTE: Some Macintosh systems do not require a Macintosh cable adapter.
3. Remove the connector cover (Figure C.1).
4. Place hands on each side of the monitor to tilt the LCD panel 30 degrees angles (Figure C.2).
5. Connect all cables to the appropriate connectors (Figure C.3). Using the USB cable, connect the B type connector to the
USB upstream port on the right side of the monitor and the A type connector to the downstream port on the computer
(Figure C.3a). If you can use the cord from the USB device, use one of the downstream ports on the side of the monitor.
DC-OUT*
Power Cord
* NEC optional product attachment.
Do not use this connector unless specified.

Figure C.1

Input1 (DVI)
Figure C.3
Macintosh
Figure A.2
Cable Adapter
(not included)
DVI Cable
Input2 (D-Sub)
USB

English-4

Figure B.1
Figure C.2
A Type
B Type
A Type
B Type
Figure C.3a
A Type
